TAPPAT 3 Way LV Link Pillar
Description

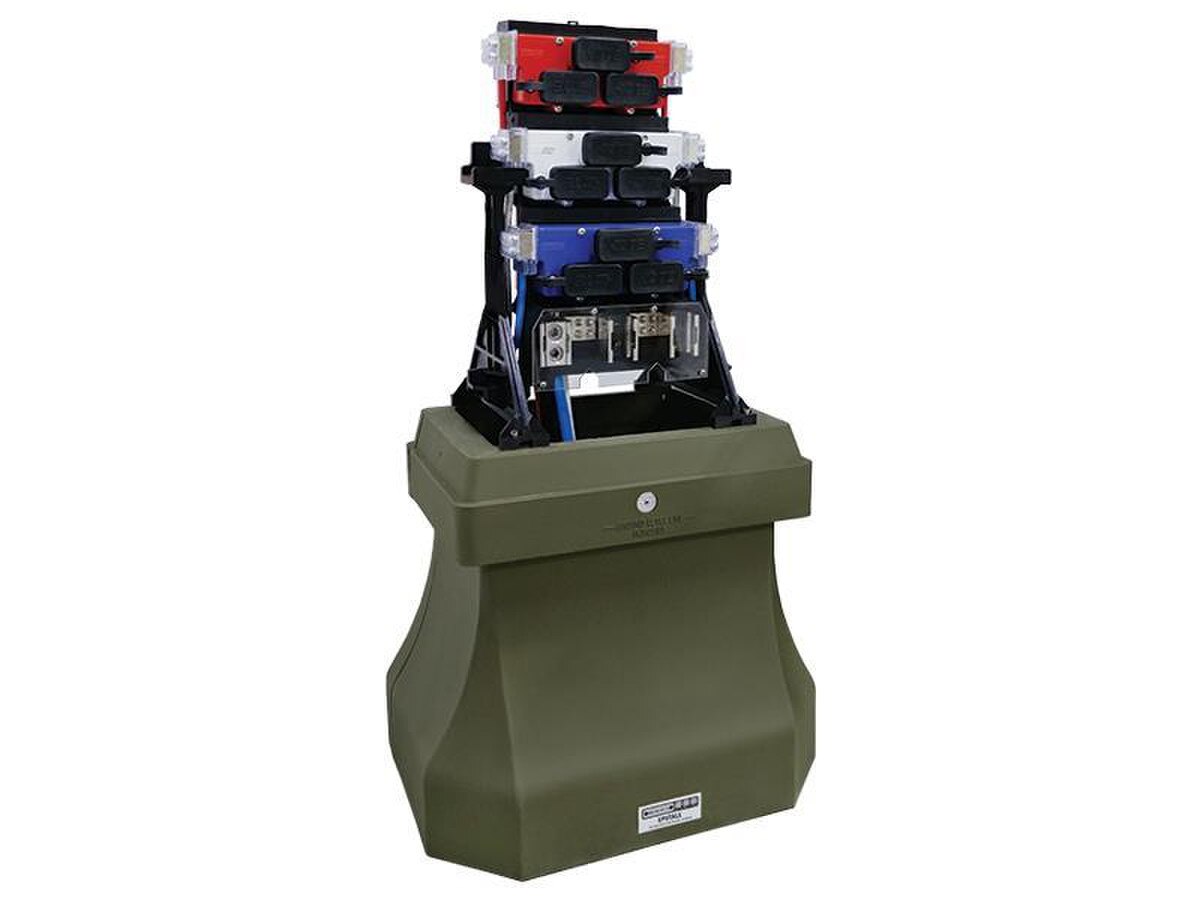

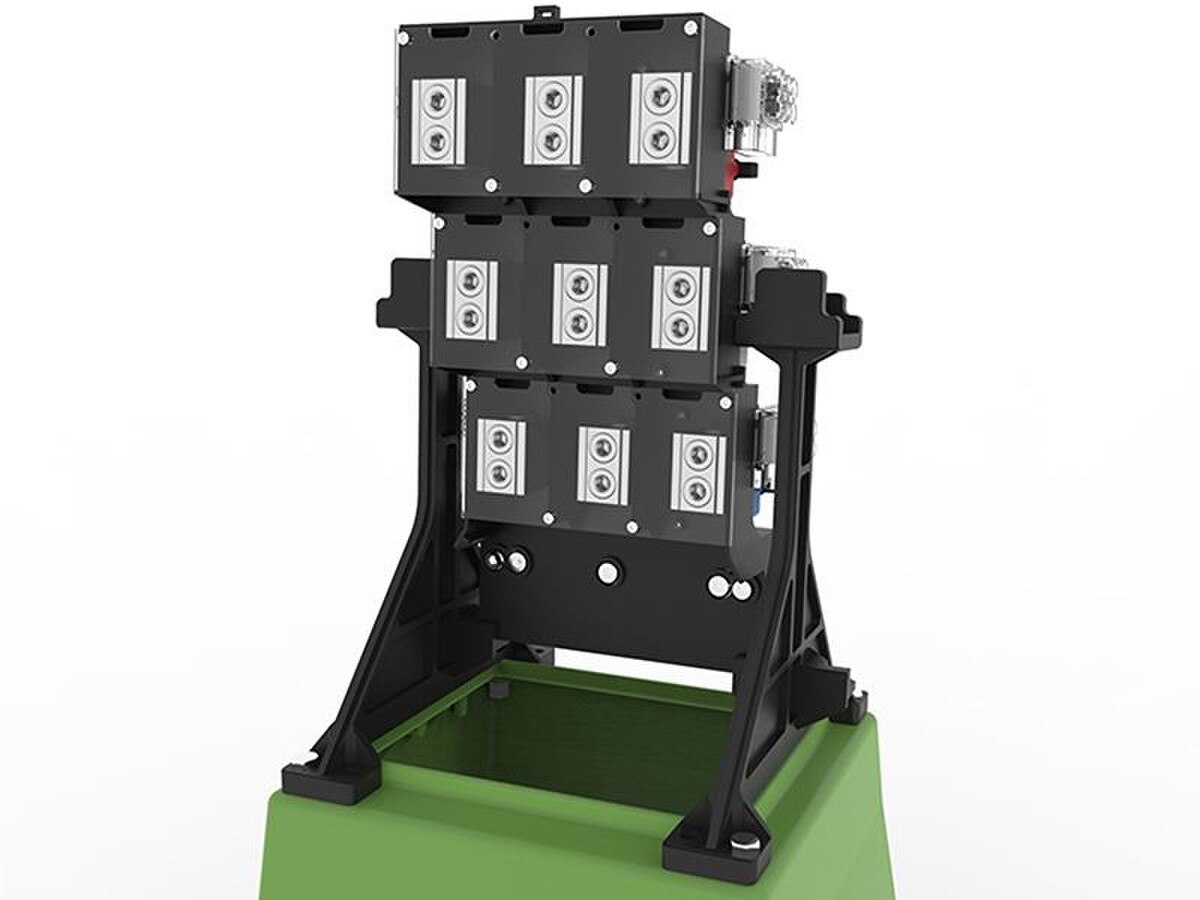

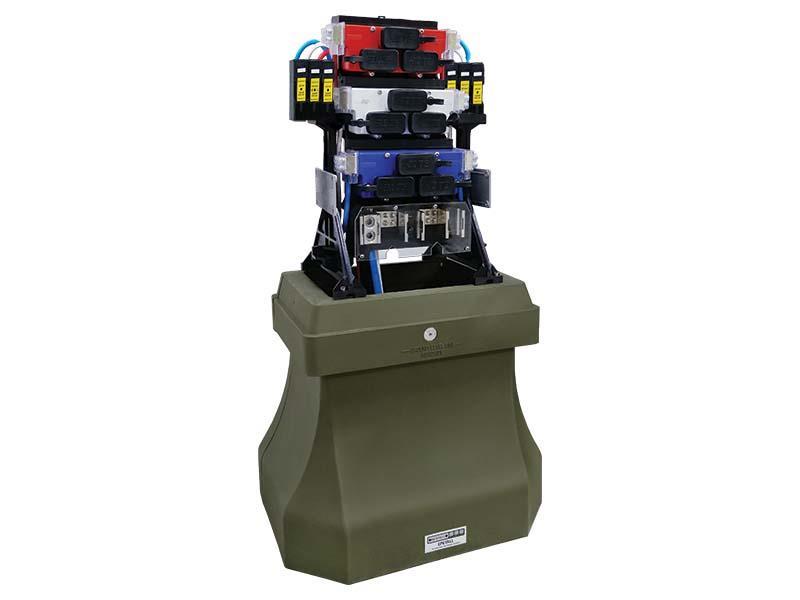

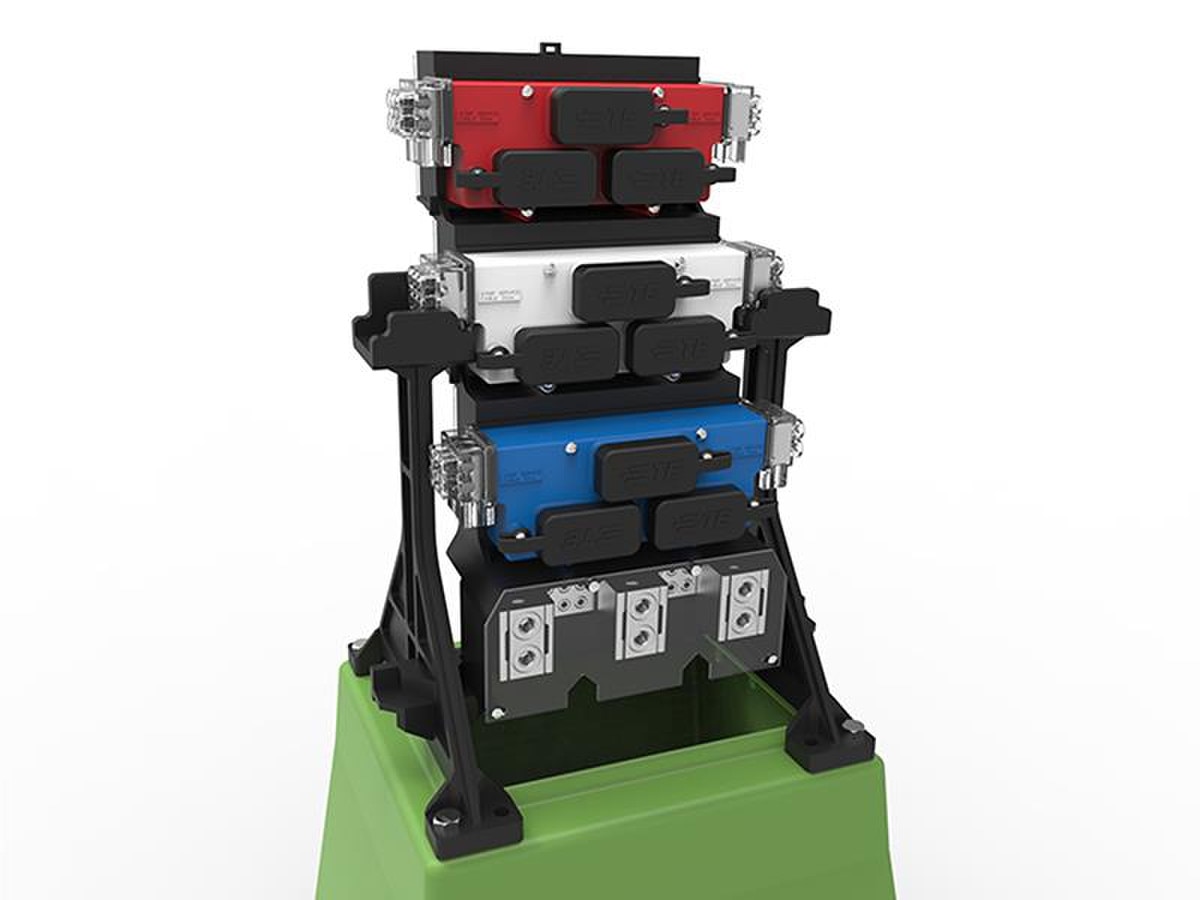

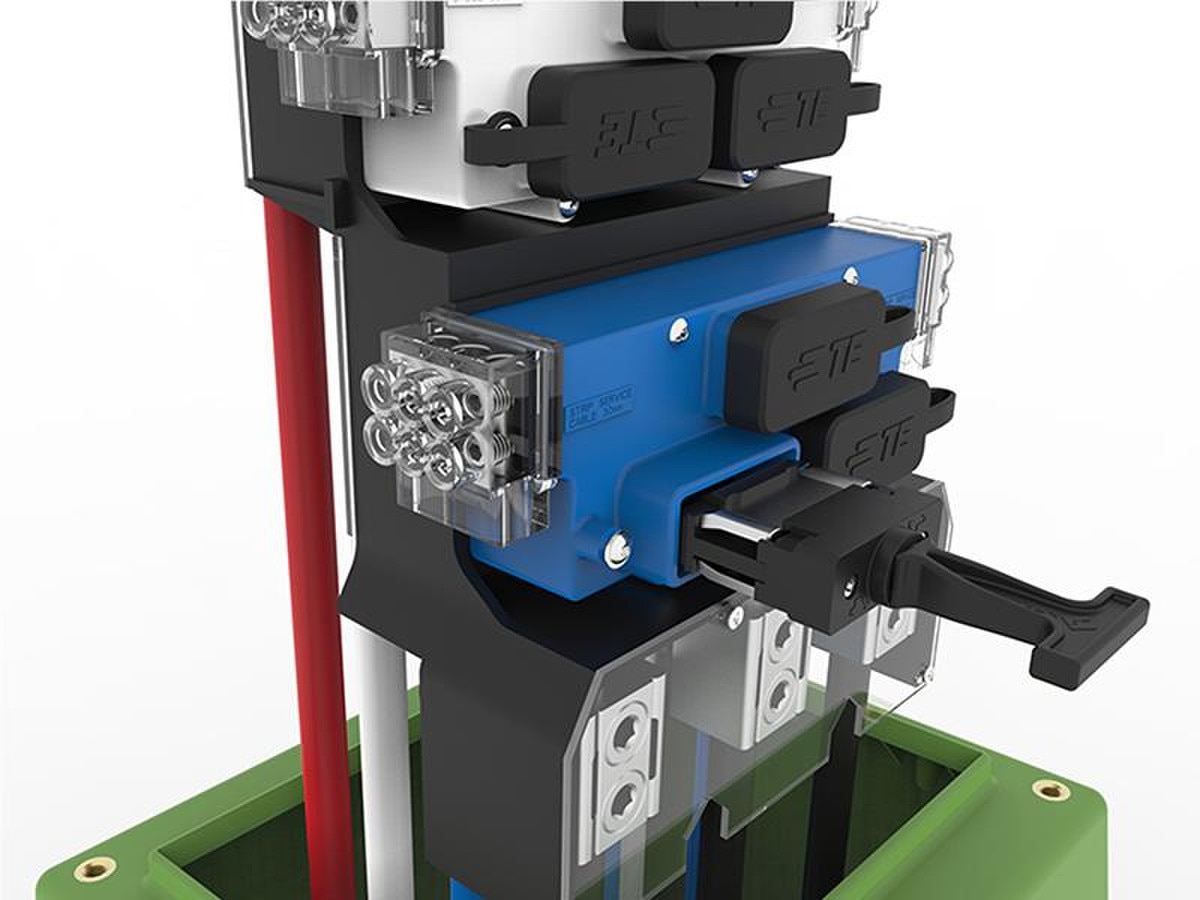

This 3-Way Open/Switching Point Link Pillar is predominately used for standard link and isolation procedures and load balancing in low voltage distribution networks. The TE Tappat Link Pillar is designed to be used in a 3 phase, 400 Volt, 50 Hz MEN distribution system. To connect/disconnect or parallel LV feeders.
Features
- 3x linked mains connections from 185mm² to 300mm² as standard, by changing the standard grub screws, this unit can accommodate 70mm² up to 150mm² cable
- Designed for Al or Cu round or sector cables
- 6 service ports per phase, 1x70mm² and 2x50mm² per each side of the unit

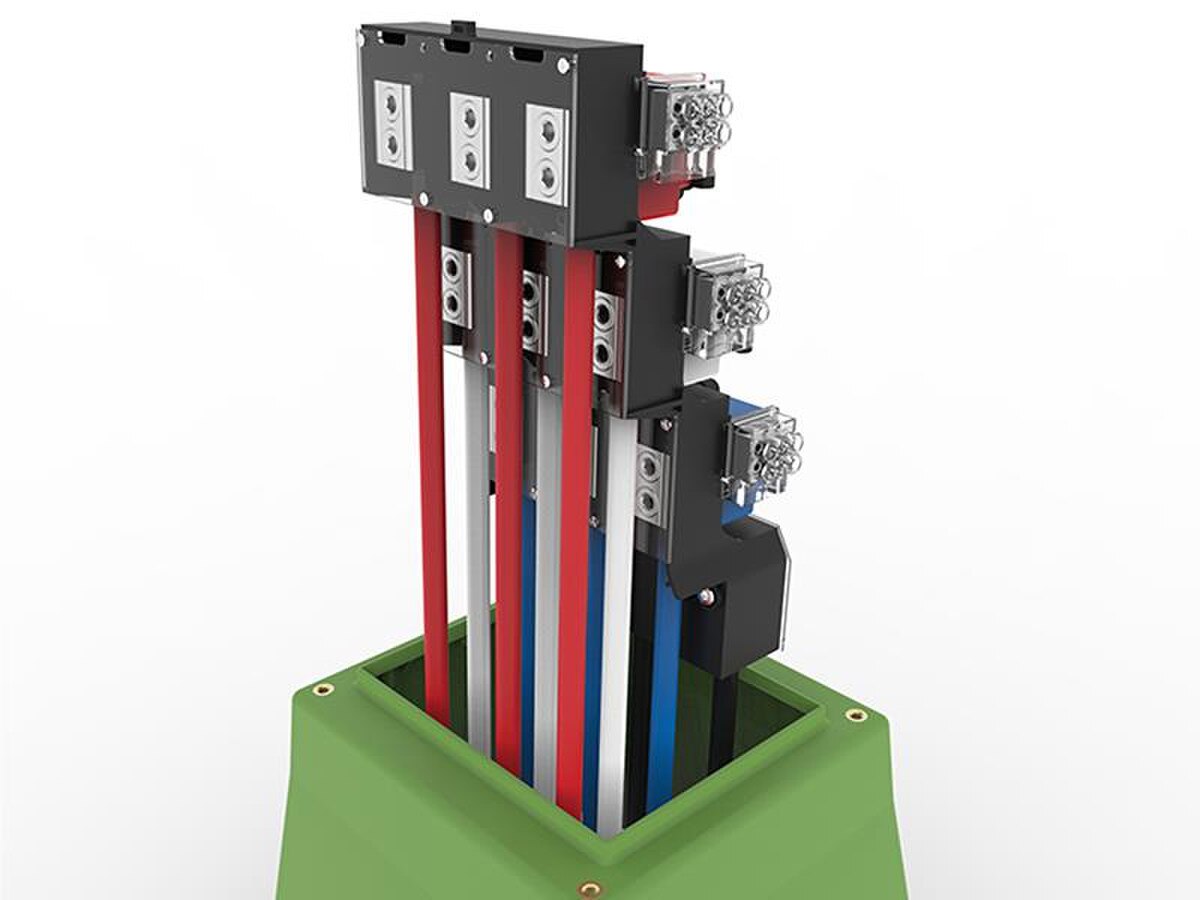

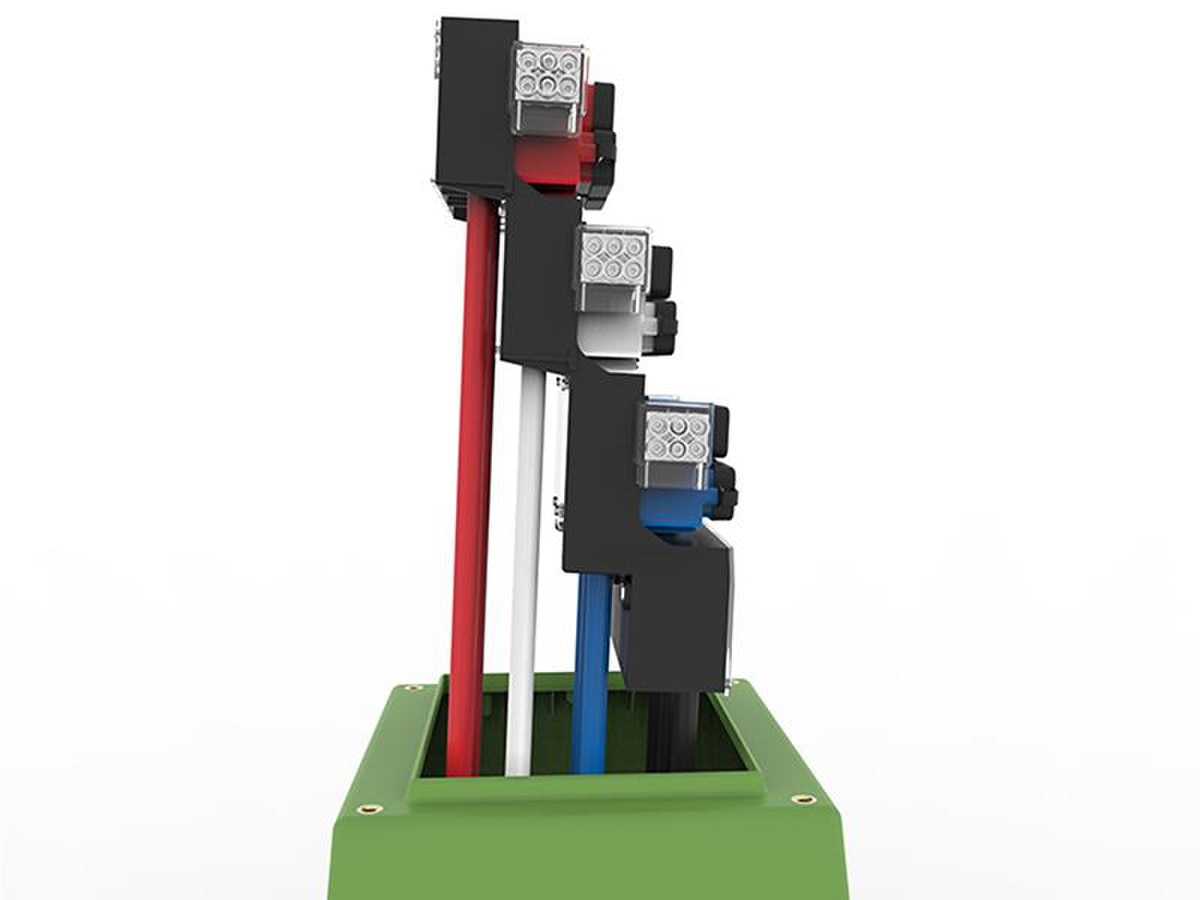

- Staggered main connections run vertically to minimise cable crossings
- Phases independently separated and insulated
- Easier, faster and safer to install and operate
