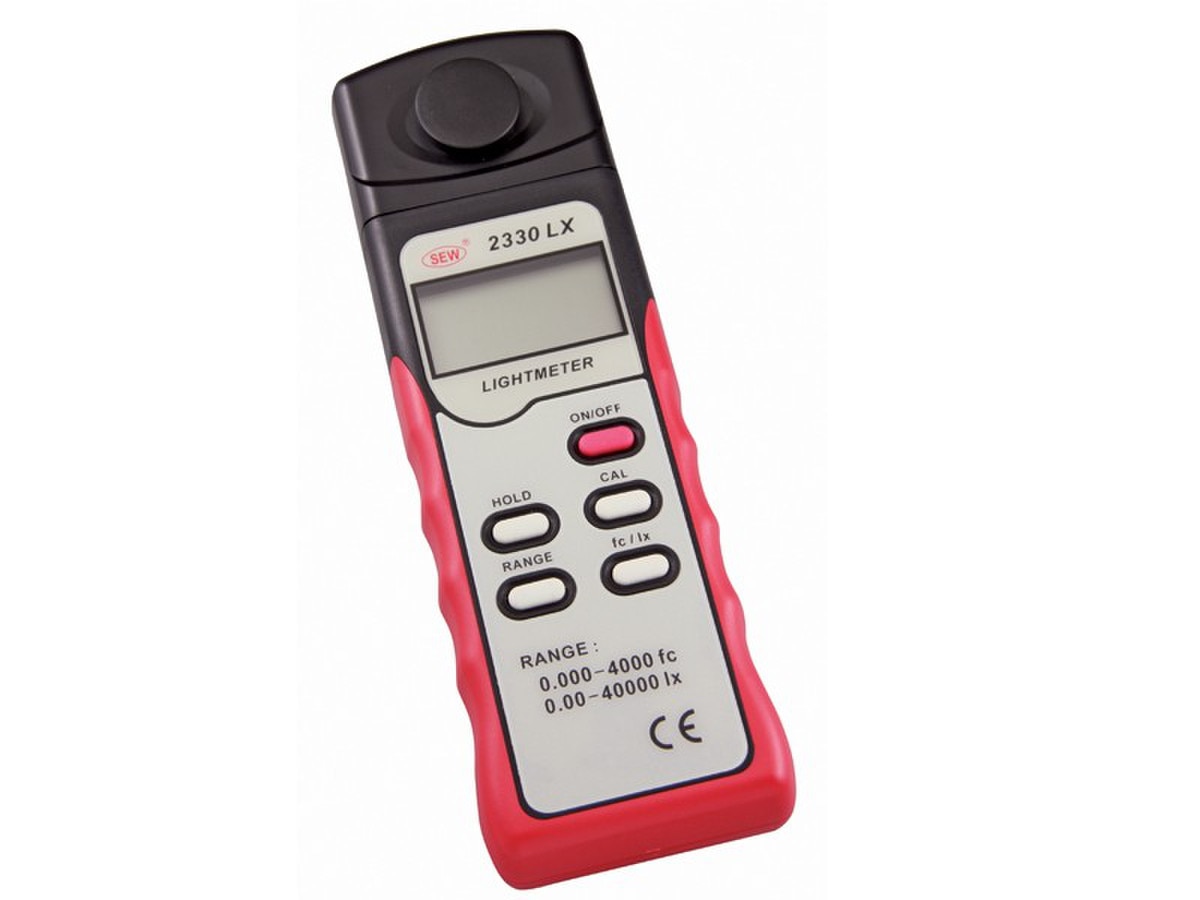

TN2330LX Lux Meter
Key Features
- Wide range for measurements up 40000 lux and 4000 fc.
- 0.01 lux and 0.001 fc resolution for accurate low light level measurements.
- Light sensor cover is included for preserving sensor life.
- Auto off function.
- Data hold function.
- Low battery indication.
- Over range indication.
- Auto-ranged.
- Manual-ranged.
- Calibration mode is provided.
- 9V battery system.
- Selection key for lux and fc.
- The spectral sensitivity close to CIE photopic curve.
- Ideal tool for workplace, clean-room and computer room light testing.
- Video, photographic, office, classroom, and architectural uses.
| TN2330LX - Lux Meter | |
|---|---|
| Measuring Ranges | 39.99 / 399.9 / 3999 / 39990 lux 3.999 / 39.99 / 399.9 / 3999fc |
| Resolution | 0.01 lux - 10 lux 0.001 fc - 1 fc |
| Accuracy | ±(3%rdg+5dgt) Calibrated to standard incandescent lamp, 2856°K |
| Display | 4000 count LCD |
| Photo Sensor | Silicon Photodiode |
| Operating / Storage Conditions | 0°C - 40°C < 80 % R.H. -10°C - 50°C < 80 % R.H. |
| Dimensions | 194(L) x 62(W) x 34(D)mm |
| Weight (Battery Included) | Approximately 245g |
| Power Source | 9V(6F22) x 1 |
| Safety Standard | EN 61326-1 |
