TNLVx - Contractor Series LV Mechanical Connectors
The TransNet LV mechanical connector range includes both lugs and links for use on Low Voltage (LV) connections. These connectors are range taking which helps to minimise the inventory required to cover the majority of LV connections and terminations in NZ.
Made from high strength, tin plated aluminium alloy, these connectors are made to the highest international standards and offer excellent reliable connections for LV installations up to 1kV.
Features
- For connections up to 1kV
- Perfect for stranded and solid Aluminium and Copper LV cable
- Tested to IEC61238-1
- Range taking for reduced inventory
- Covers cable sizes 10-630mm²
- Lugs and Links
- Preset torque shear head bolts for correct connection every time
 |  |  |

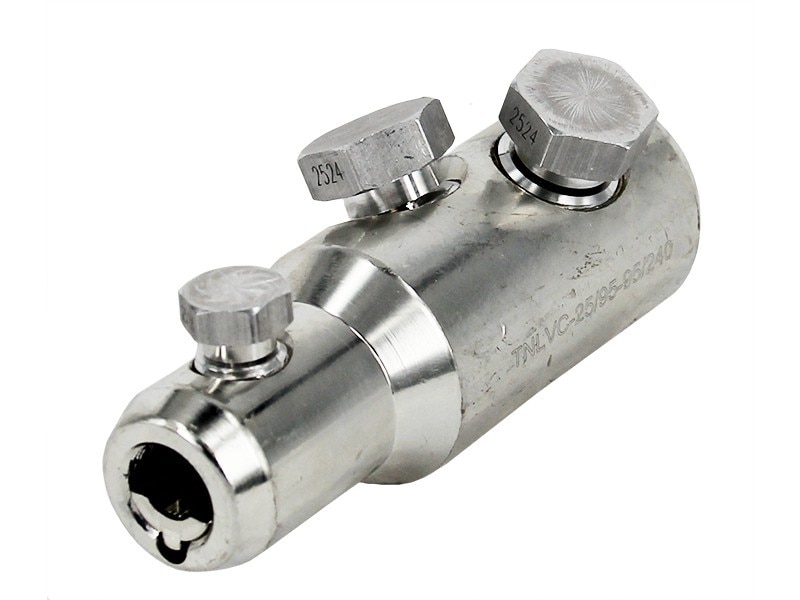

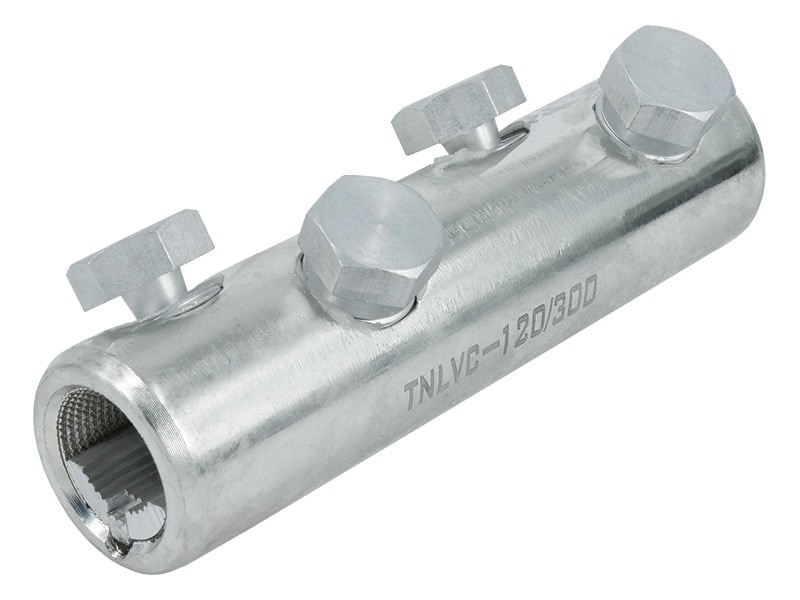

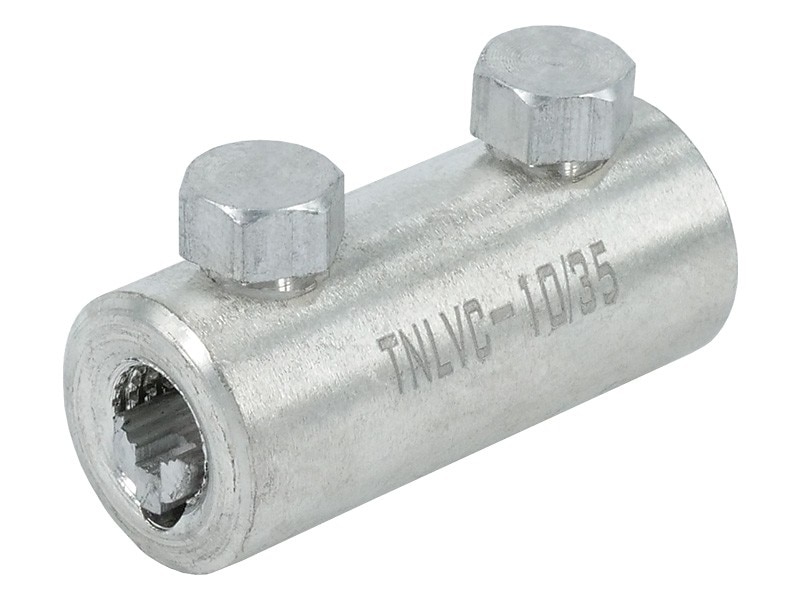

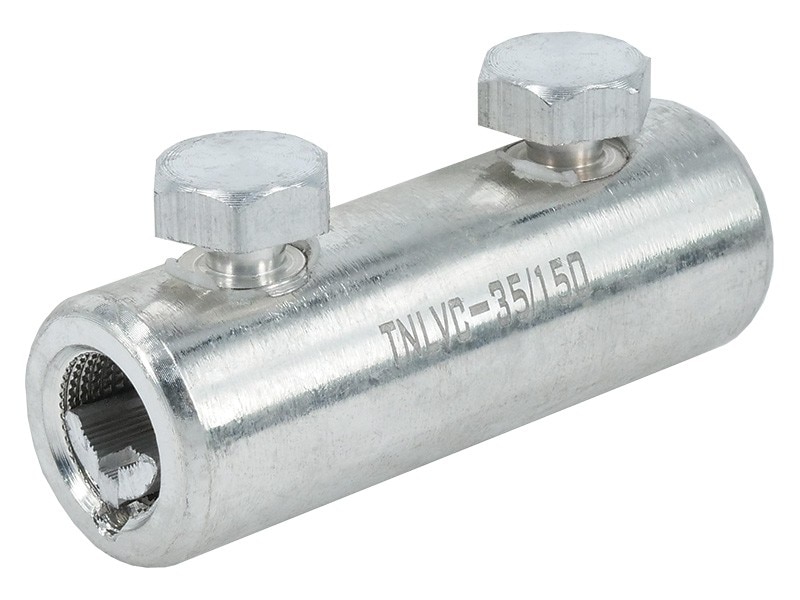

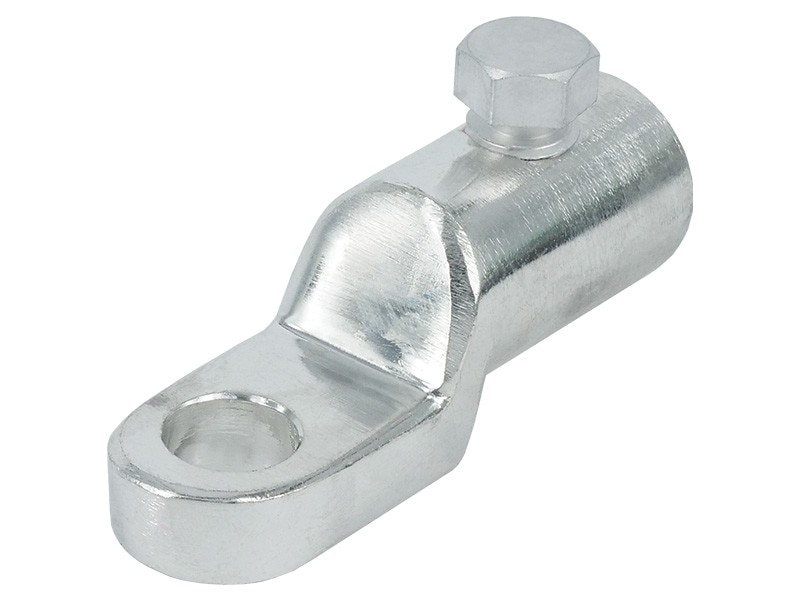

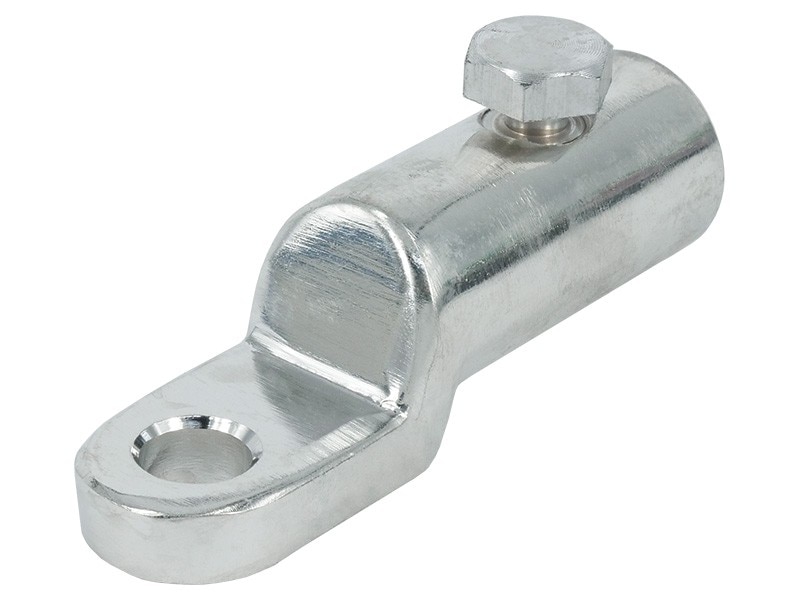

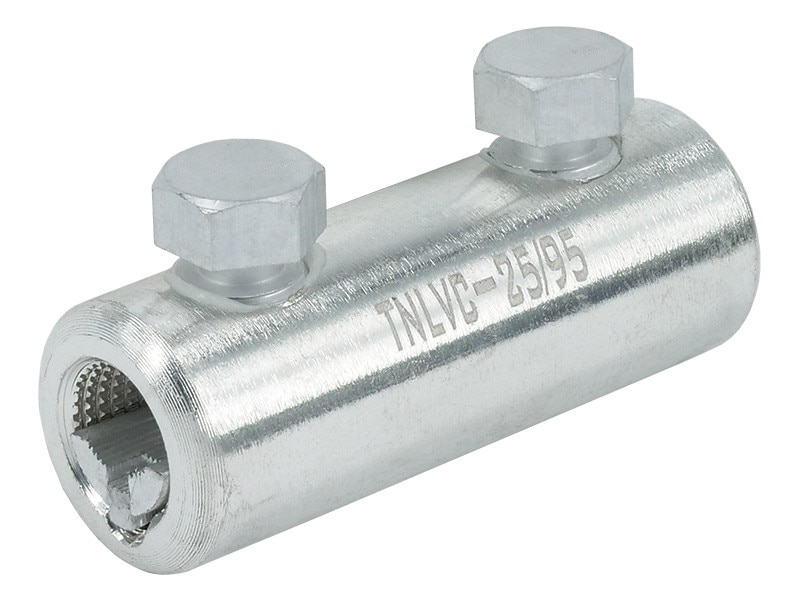

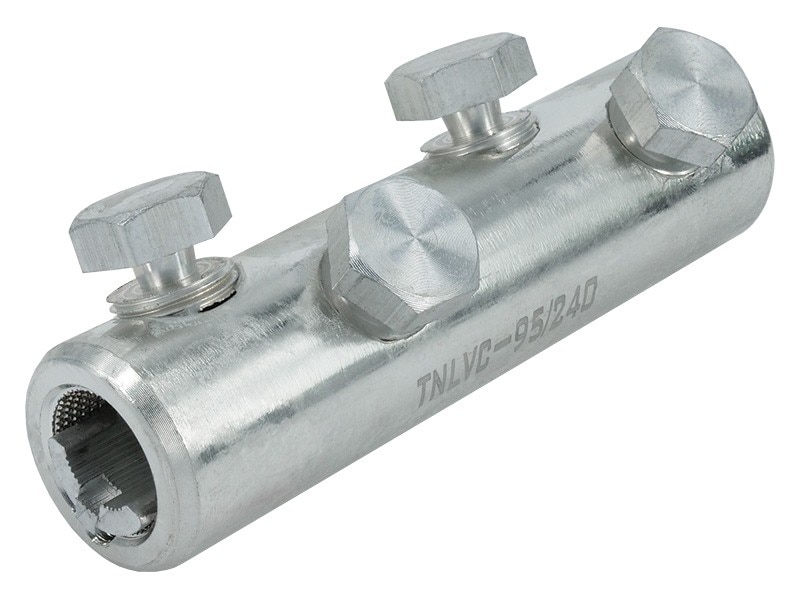

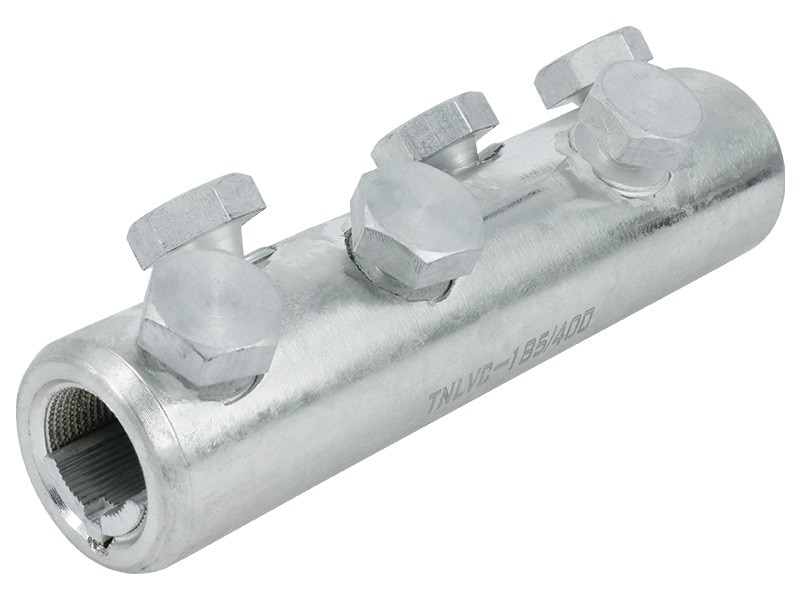

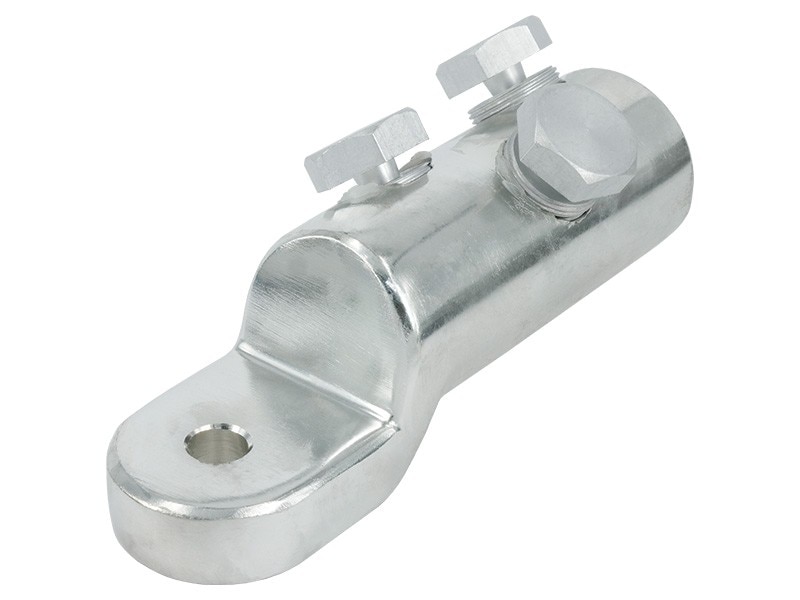

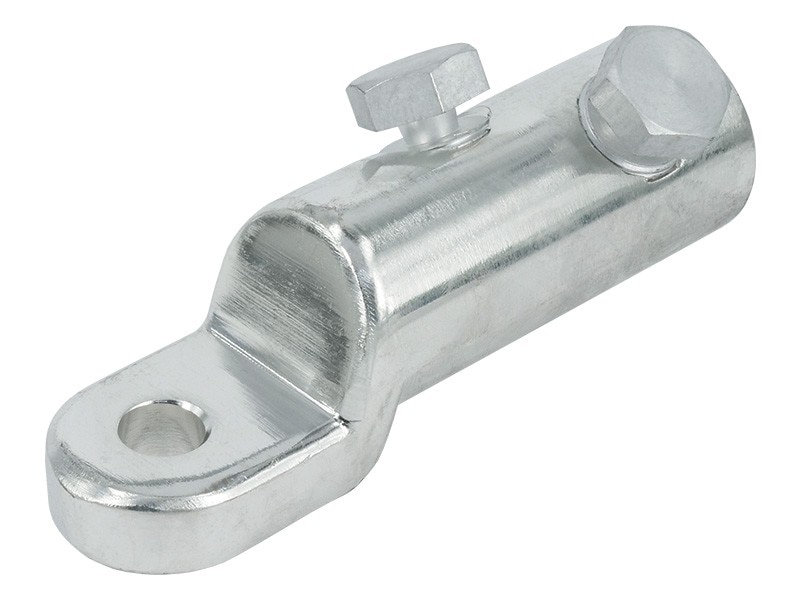

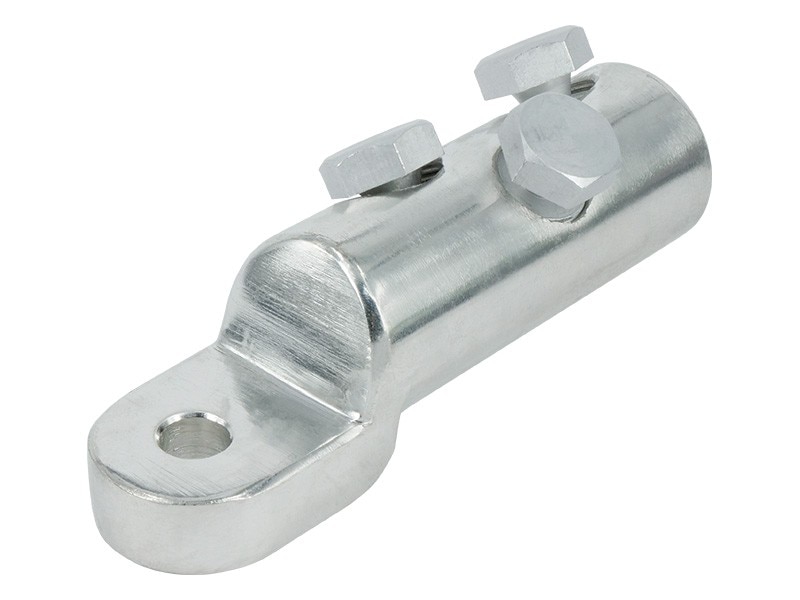

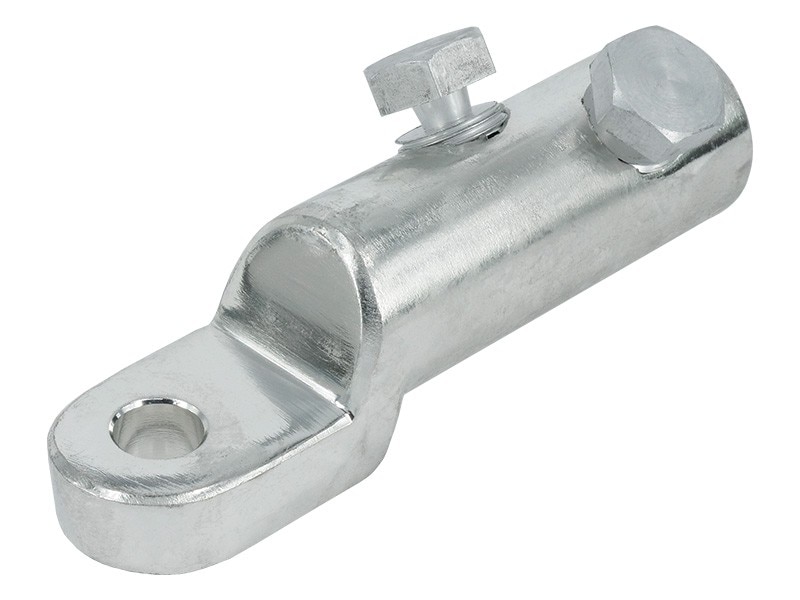

TNLVCMechanical Connector Link | TNLVCMechanical Connector Reducing Link | TNLVLMechanical Connector Lug |
Dimensions (mm) | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cat No. | Type | Cross Section (mm2) | L1 | L2 | D1 | D2 | D3 | D4 | LB | Contact Bolt Qty | Bolt Size A/F (mm) | Qty | Price | ||
