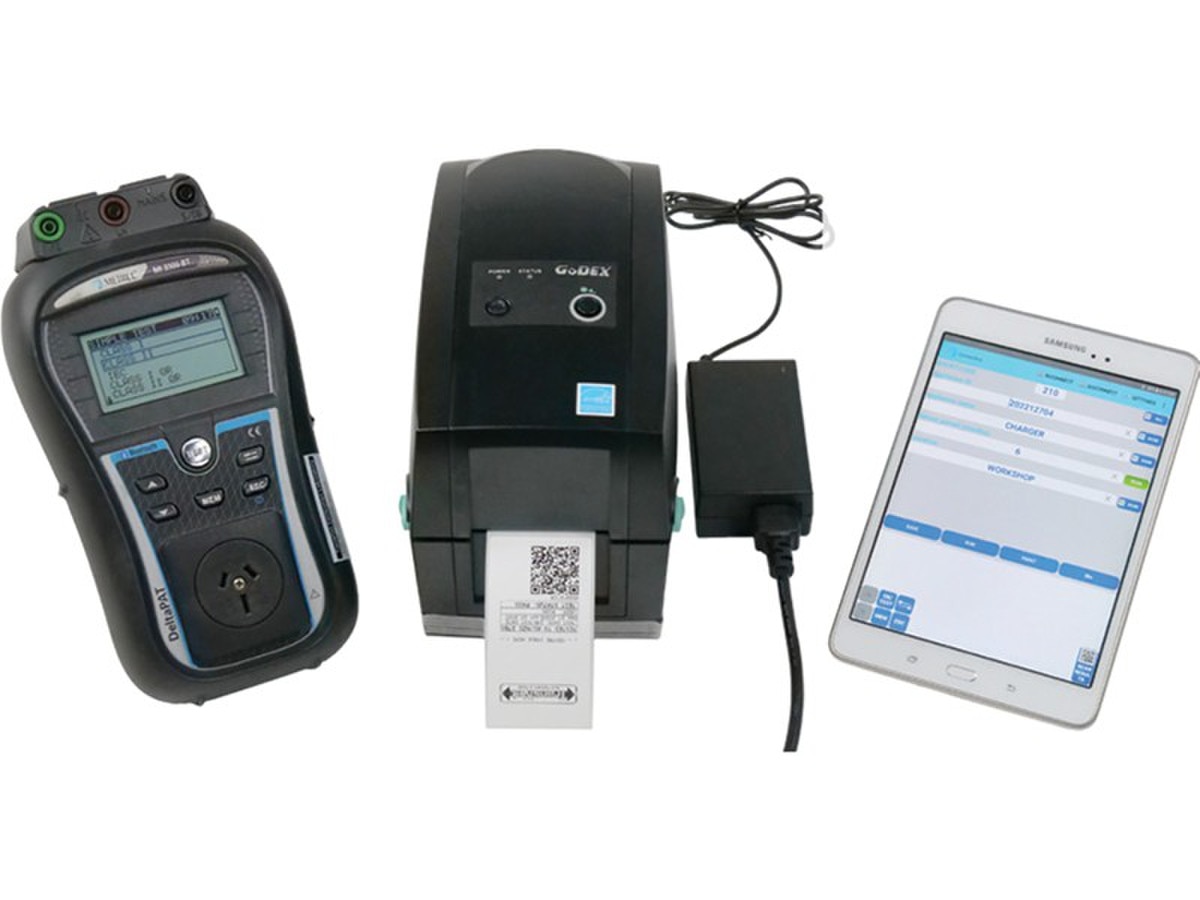

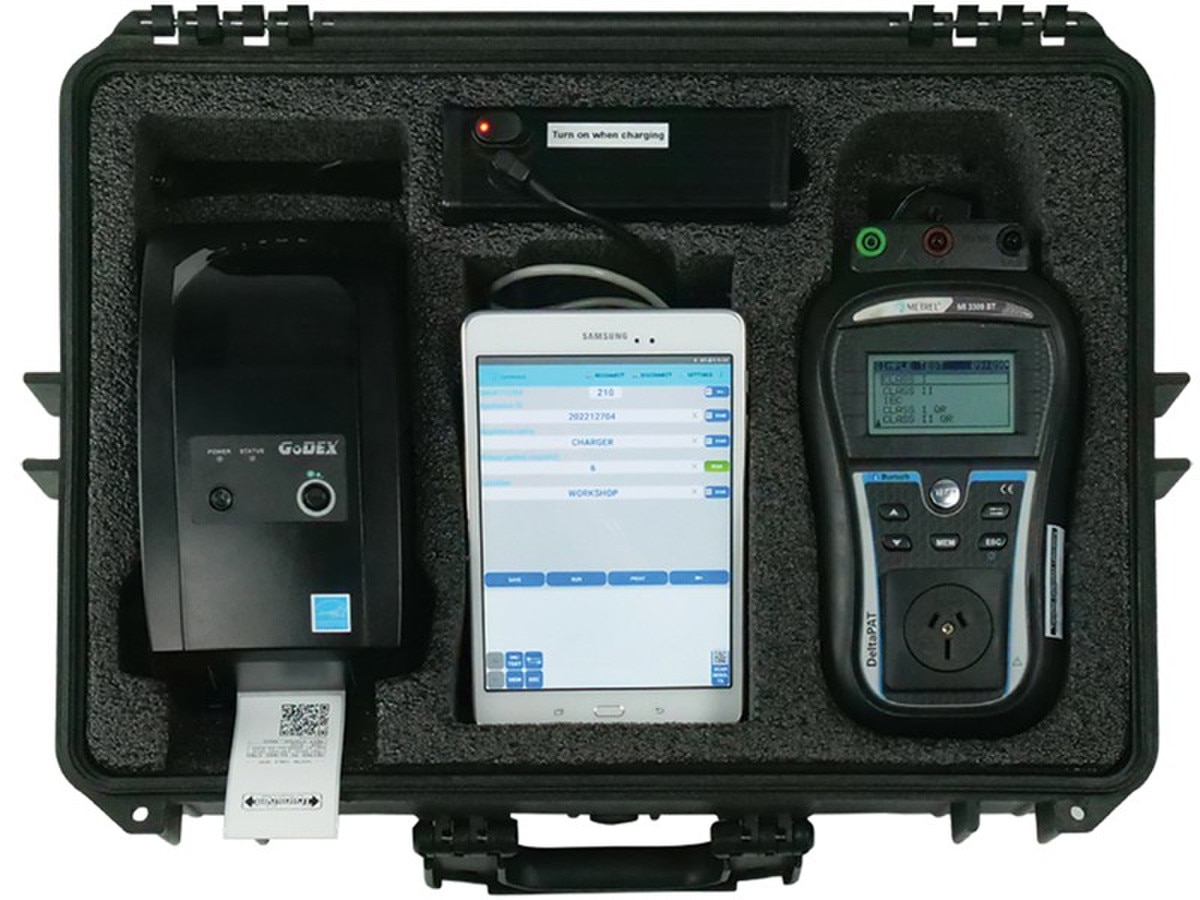

TRANSDELTA4-G Portable Appliance Tester Kits
Description
Testing Capabilities
- Functional and visual inspection
- Earth bond resistance
- Insulation resistance; Insulation resistance of isolated accessible conductive parts
- Substitute leakage current; Substitute leakage current of isolated accessible conductive parts
- Differential leakage current test
- Touch leakage test
- PRCD test
- Power test
- IEC cord polarity test
- TRMS voltage meter
GODEX RT200 Printer Features
- 250 or 500 Tags on each roll
- Bluetooth connection to MI3309BT
- Linear Barcode or QR code
- Custom logo on tags
- High efficiency and reliability
- Tough synthetic labels
- Cheapest tag printer available
- Operating voltage 100–240V AC or optional rechargeable battery pack
MI3309BT Delta PAT Features
- Graphic LCD with resolution of 128 x 64 dots, with backlight
- Easy reading of results, indications, measurement parameters and messages
- Large green & red lights for additional PASS / FAIL indication placed at the sides of the LCD
- Large data flash memory for storing test results & parameters (1500 tests with parameters can be stored on average)
- Two PC communication ports (USB & RS232C)
- Built-in real time clock
- Bar-coding system for quick test code selection and identification of device under test
- Programmable limits for PASS/FAIL evaluation
- Fully compatible with new Metrel PATLink PRO PC software package, included in standard set (download, view, print & export of test results)
- Portable and lightweight design
- Rechargeable with built-in charging circuit
- Operates on mains power or batteries
