Telco Full Tension Sleeves

(0)No Reviews yet

Telco Full Tension Sl

  • Connector Material – Copper, metal sprayed internally
  • Superior tensile strength
  • Considerable reduction in mass of finished joint
  • Elimination of corrosion
  • Also known as MS Telecom Sleeves
Back

DIMENSIONS


Telecom Crimp
Back
Back

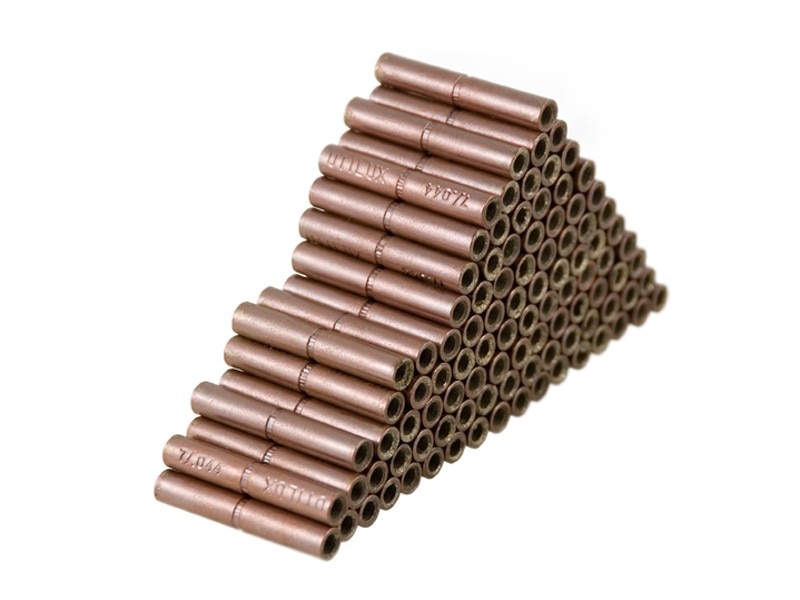

TDCS1/100 IMPERIAL 7/.044 - 6.35 38 6.35 TY635794/1 4

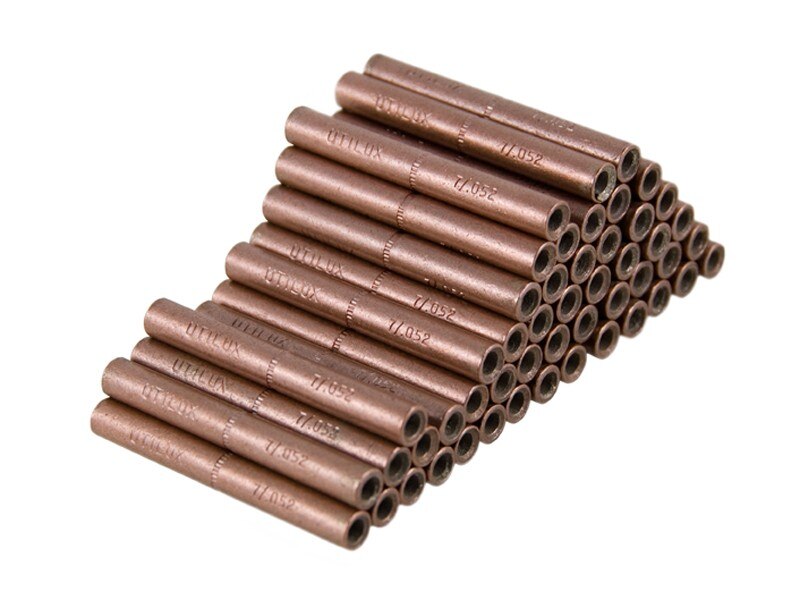

TECS1/50 IMPERIAL 7/.052 - 7.94 64 7.94 TY635794/1, TR794952 8

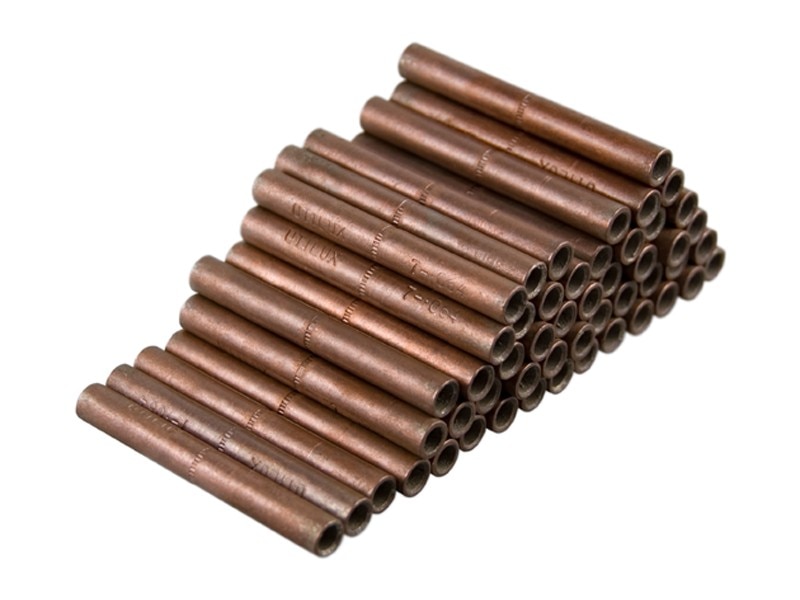

TECS2/50 IMPERIAL 7/.064 - 7.94 64 7.94 TY635794/1, TR794952 8

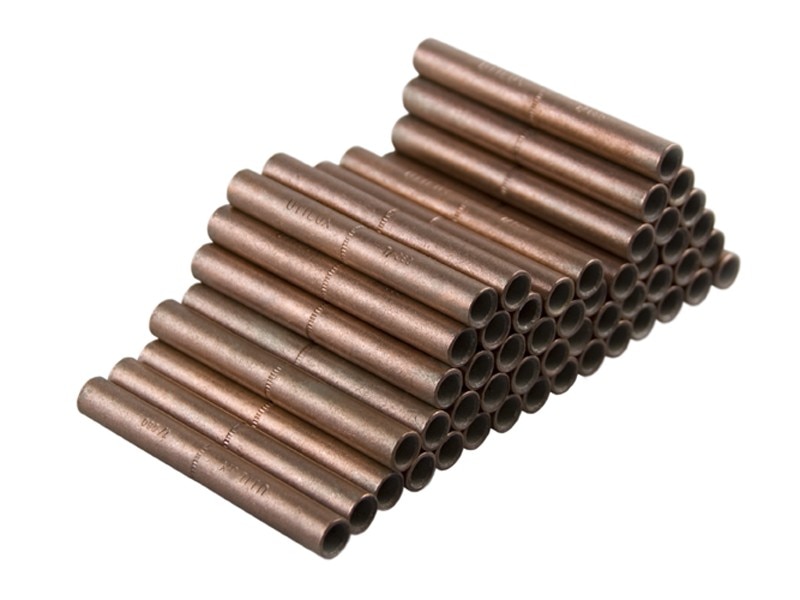

TFCS1/50 IMPERIAL 7/.080 - 9.52 76 9.52 TR794952, TR9521270 8

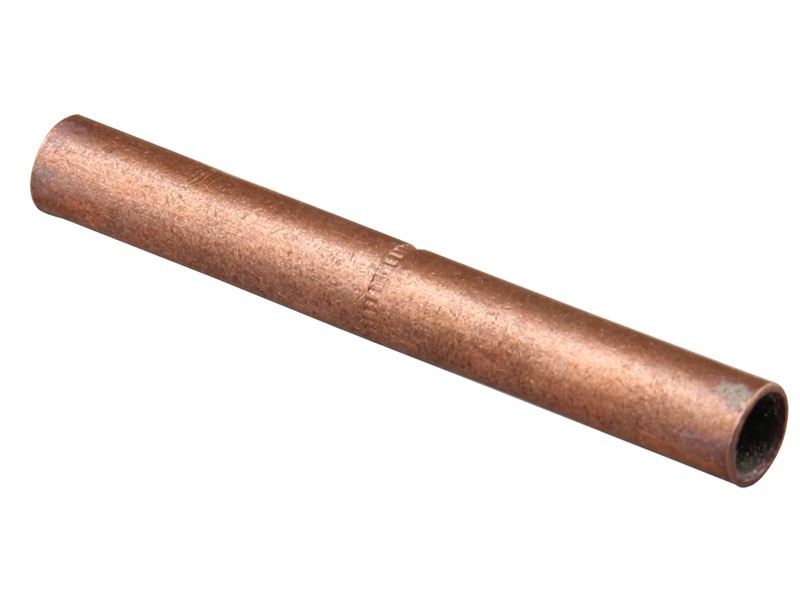

TFCS2/50 IMPERIAL 19/.052 - 9.52 76 9.52 TR794952, TR9521270 8
TFCS3/50 IMPERIAL 7/.083 - 9.52 76 9.52 TR794952, TR9521270 8

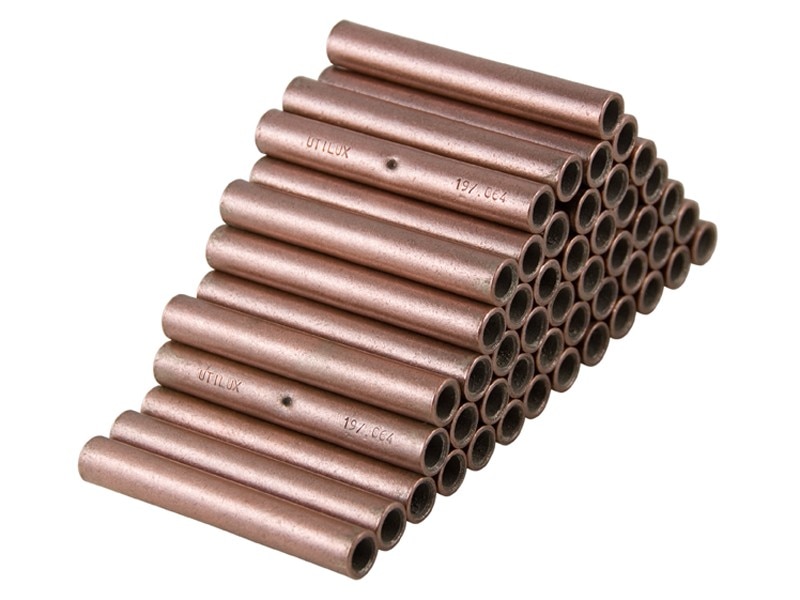

TGCS3/50 IMPERIAL 19/.064 - 12.7 89 12.7 TR9521270 10

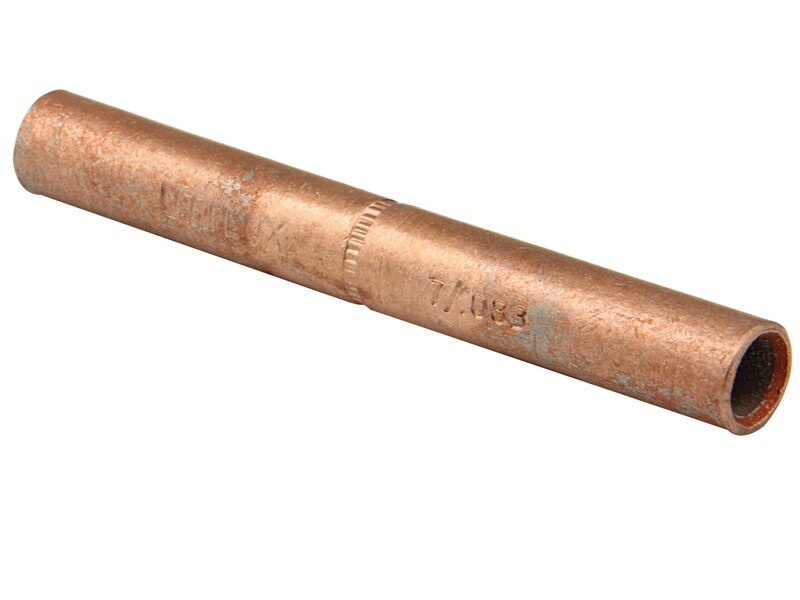

THCS2/50 IMPERIAL 19/.083 - 15.88 127 15.88 38-130CU 14

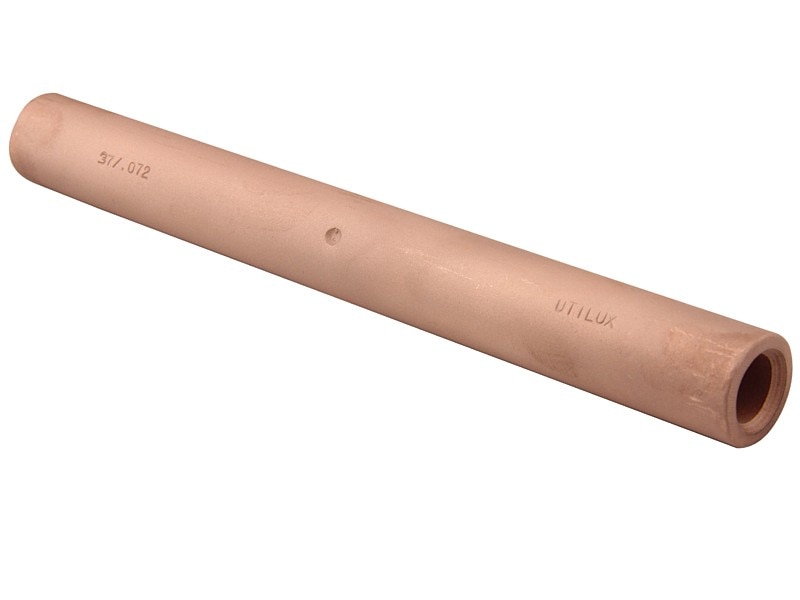

TJCS1/1 IMPERIAL 19/.101 - 22.22 203 19.25 38-193CU 8
TJCS2/1 IMPERIAL 37/.072 - 22.22 203 19.25 38-193CU 8
TDCSM2/100 METRIC 7/1.04 6 6.35 38 6.35 TY635794/1 4

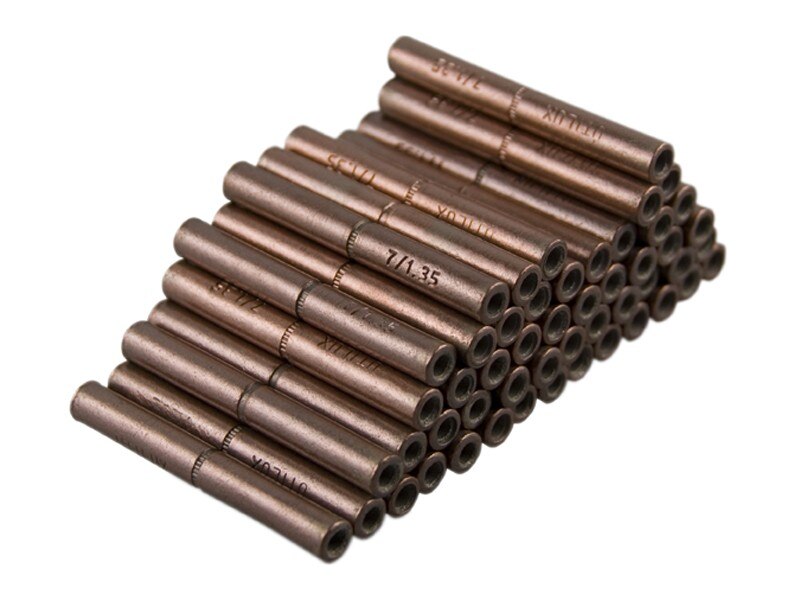

TECSM1/50 METRIC 7/1.35 10 7.94 64 7.94 TY635794/1, TR794952 8

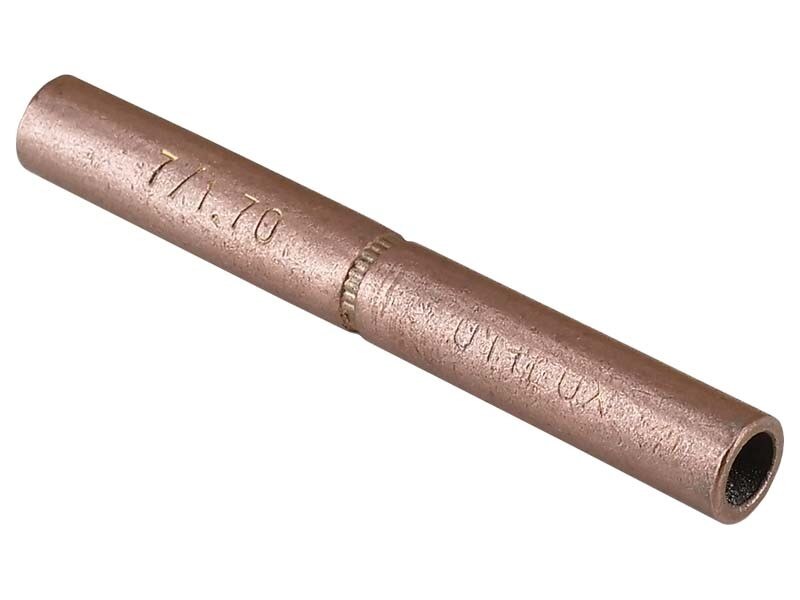

TECSM2/50 METRIC 7/1.70 16 7.94 64 7.94 TY635794/1, TR794952 8

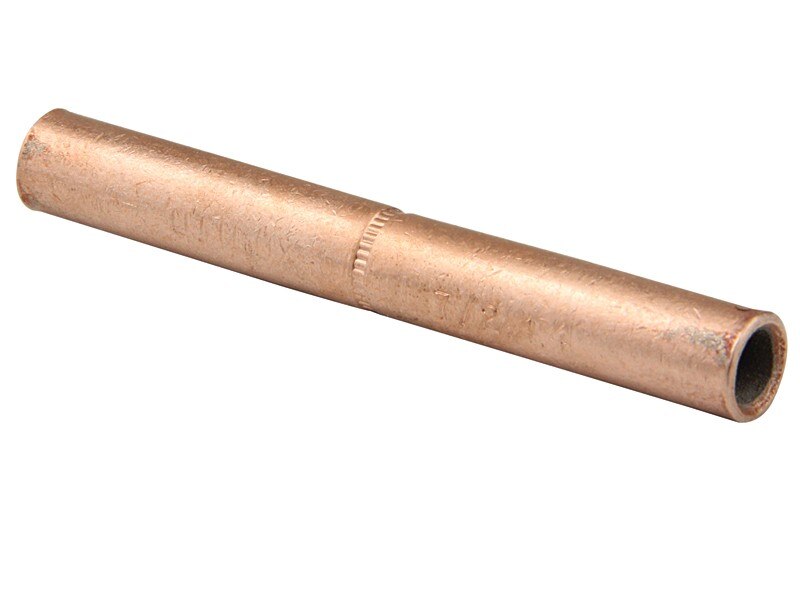

TFCSM1/50 METRIC 7/2.14 25 9.52 76 9.52 TR794952, TR9521270 8

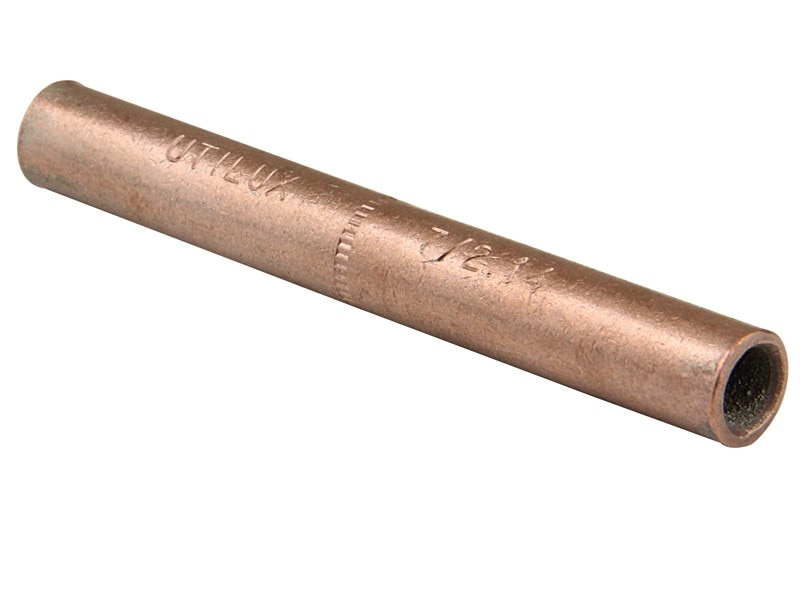

TFCSM2/50 METRIC 19/1.35 35 9.52 76 9.52 TR794952, TR9521270 8

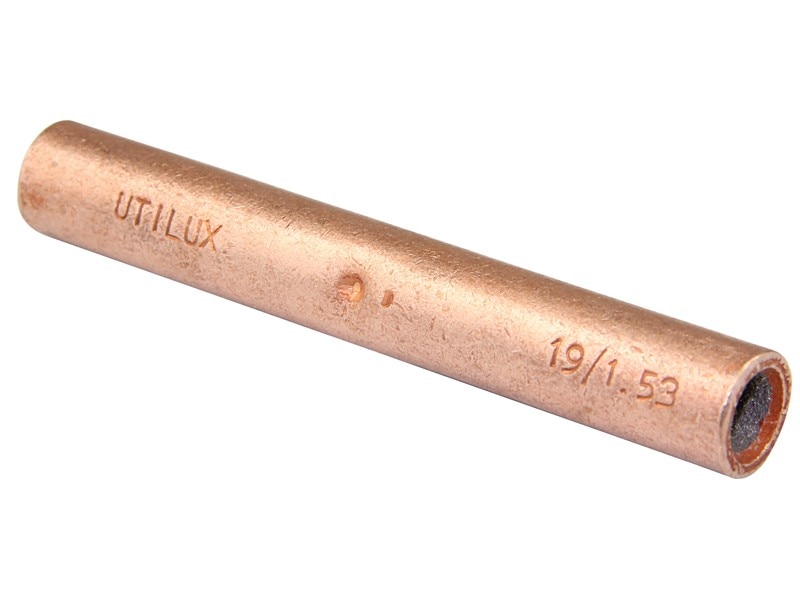

TGCSM2/50 METRIC 19/1.53 - 12.7 89 12.7 TR9521270 10

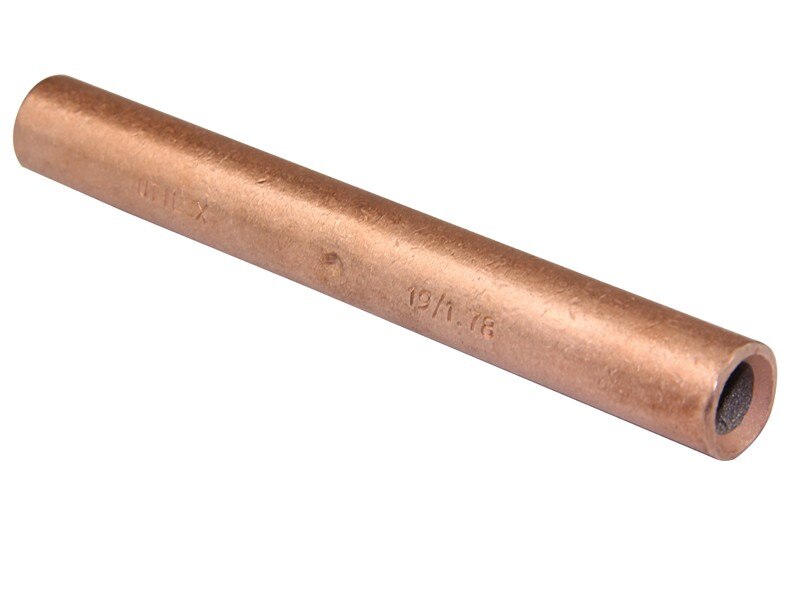

THCSM2/50 METRIC 19/1.78 50 15.88 127 15.88 38-130CU 14

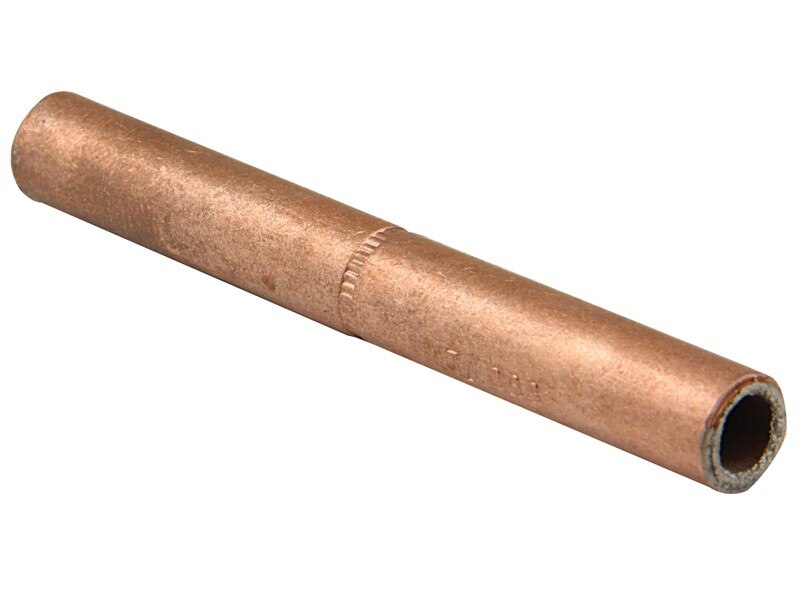

THCSM3/50 METRIC 19/2.14 70 15.88 127 15.88 38-130CU 14

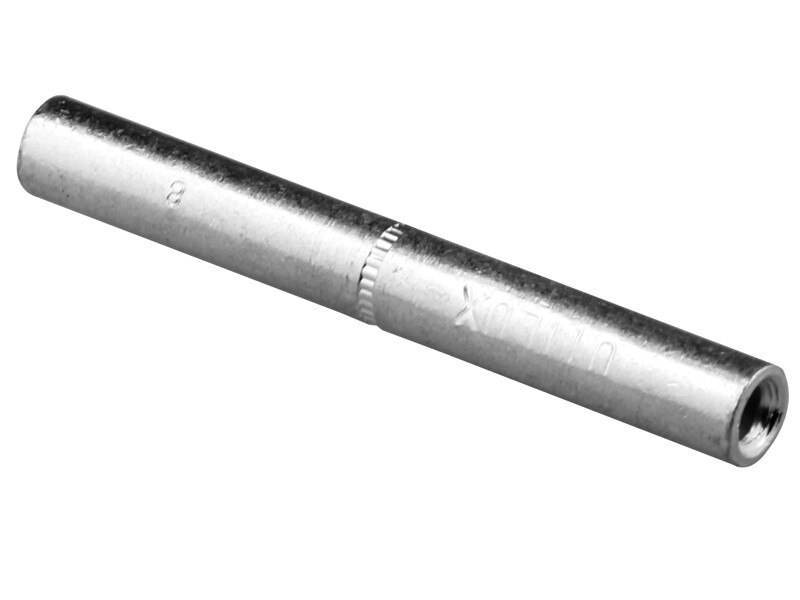

TEG1ET/50 Metric - 8G 7.94 64 - TY635794/38-63cu 8

Connector Dimensions

Cat No.

Units

Stranding Imperial

Conductor Size (mm2)

O.D. (mm)

Length (mm)

Crimp Groove Size (mm)

Tool No.

Crimps Per Connector

Qty

Price
