Universal Branch Connector up to 1kV

(0)No Reviews yet

Universal connectors for mains to mains connections, these connectors are composed of an aluminium alloy body with aluminium alloy bolts.

They are suitable for AL and Cu conductors when used with resin joints.

Designed to meet the requirements of BS4579 Parts 1 and 3 along with engineering recommendation C79.

The connectors can be installed unfer live working conditions when following suitable procedures.

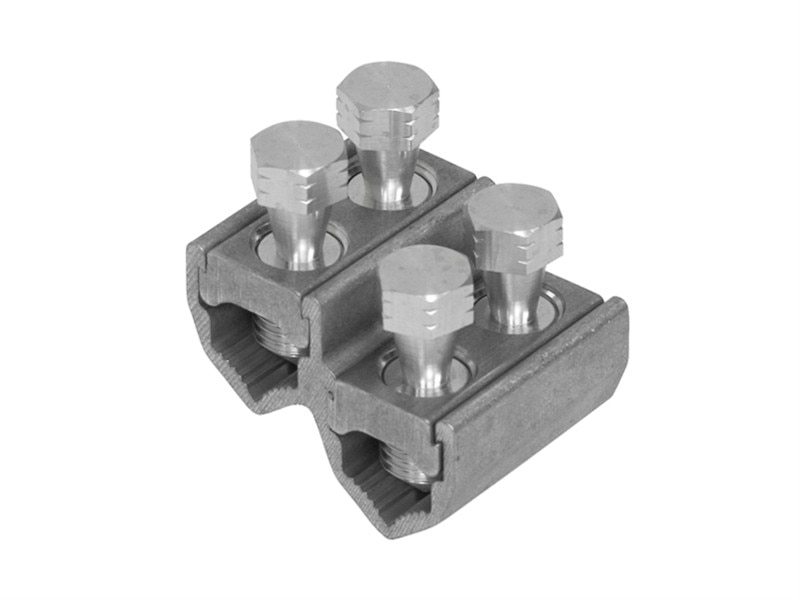

UBR95 UNIVERSAL BRANCH CONNECTOR 40 36 49 13MM SOCKET 35-95

Quantity

UBR185 UNIVERSAL BRANCH CONNECTOR 54 45 66 19MM SOCKET 35-185

Quantity

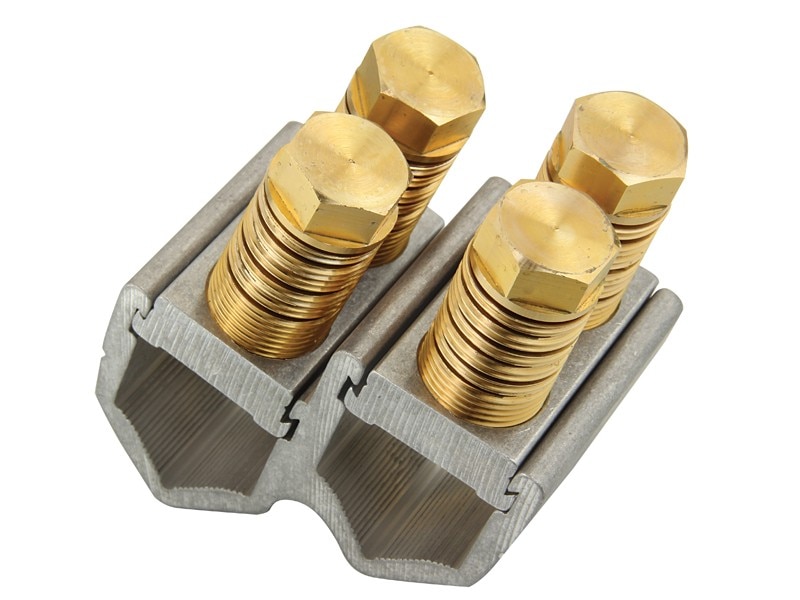

UBR300 UNIVERSAL BRANCH CONNECTOR 54 52 77 19MM SOCKET 70-300

Quantity

UBR400 UNIVERSAL BRANCH CONNECTOR 54 61.6 78.2 19MM SOCKET 185-400

Quantity

			Dimensions (mm)
	Cat No.	Description	L	H	W	Application Tool	Cable Size (mm²)	Qty	Price
