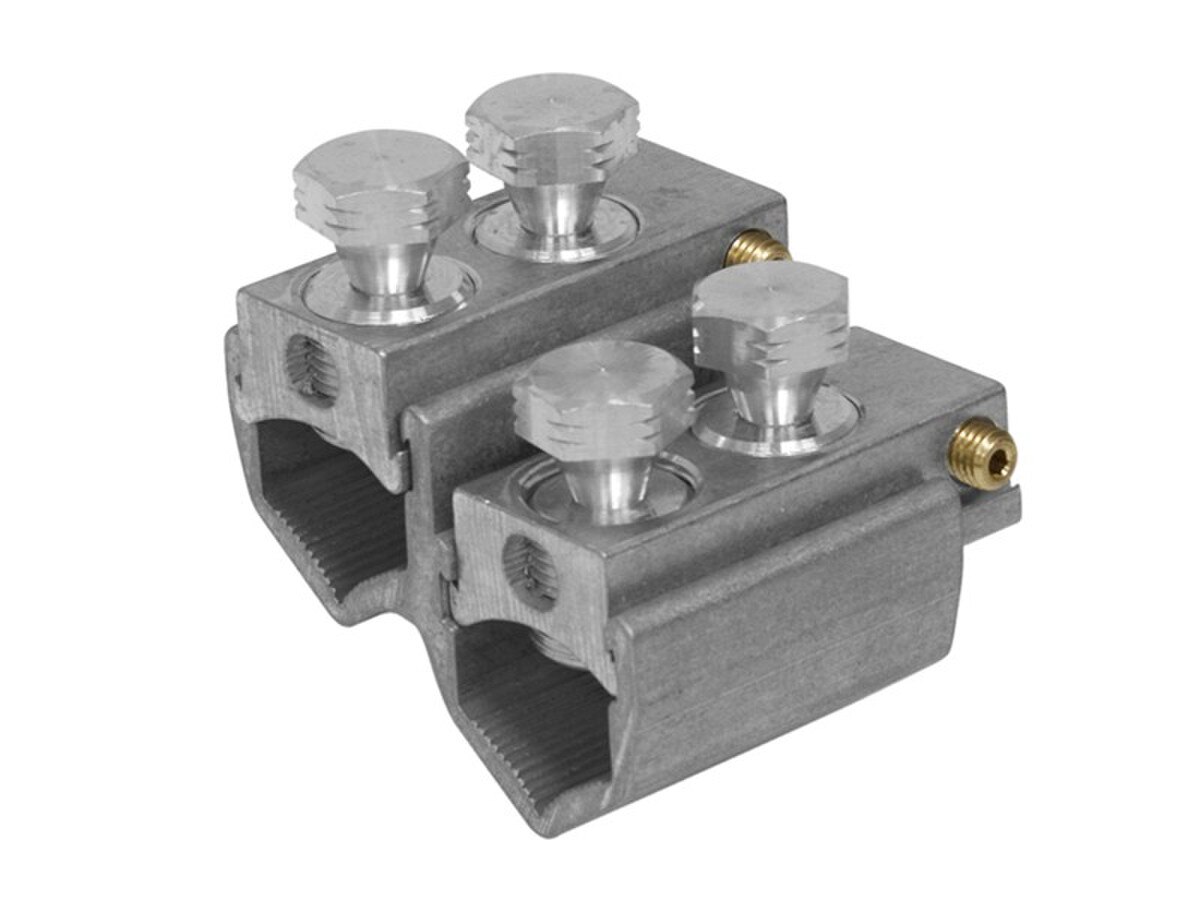

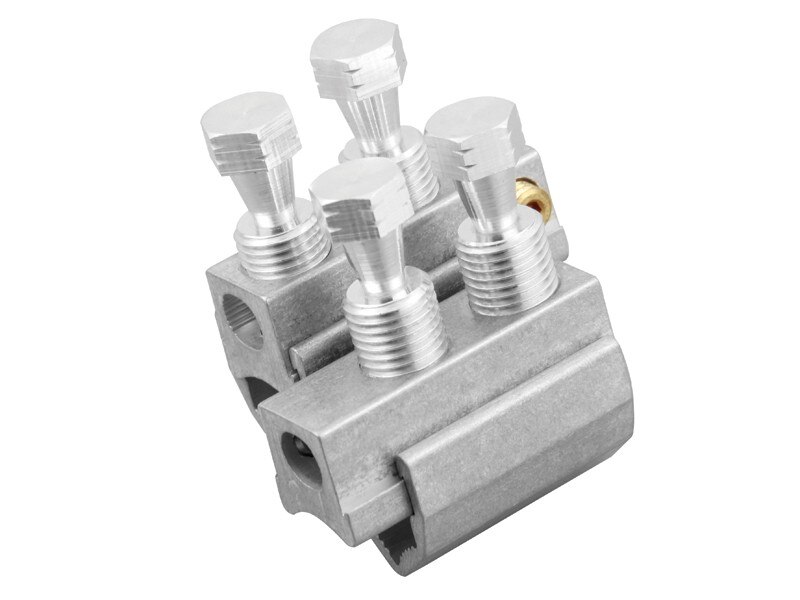

Universal Branch Connector with Double Service Takeoffs up to 1kV
A range of connectors for incorporating one or two service take-off connections onto LV mains to mains cables. These connectors are composed of an Aluminium alloy body with Aluminium alloy bolts. Suitable for Al or Cu conductors when used with resin joints. Designed to meet the requirements of BS4579 Part 1 and Part 3 and engineering recommendation C79. Can be installed under live working conditions (following suitable procedures).
DIMENSIONS
Dimensions (mm) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
Cat No. | Number of Service Take Offs | L | H | W | Application Tool | Cable Size Main (mm²) | Cable Size Tap Off (mm²) | Qty | Price | ||
