Voltage Transformers

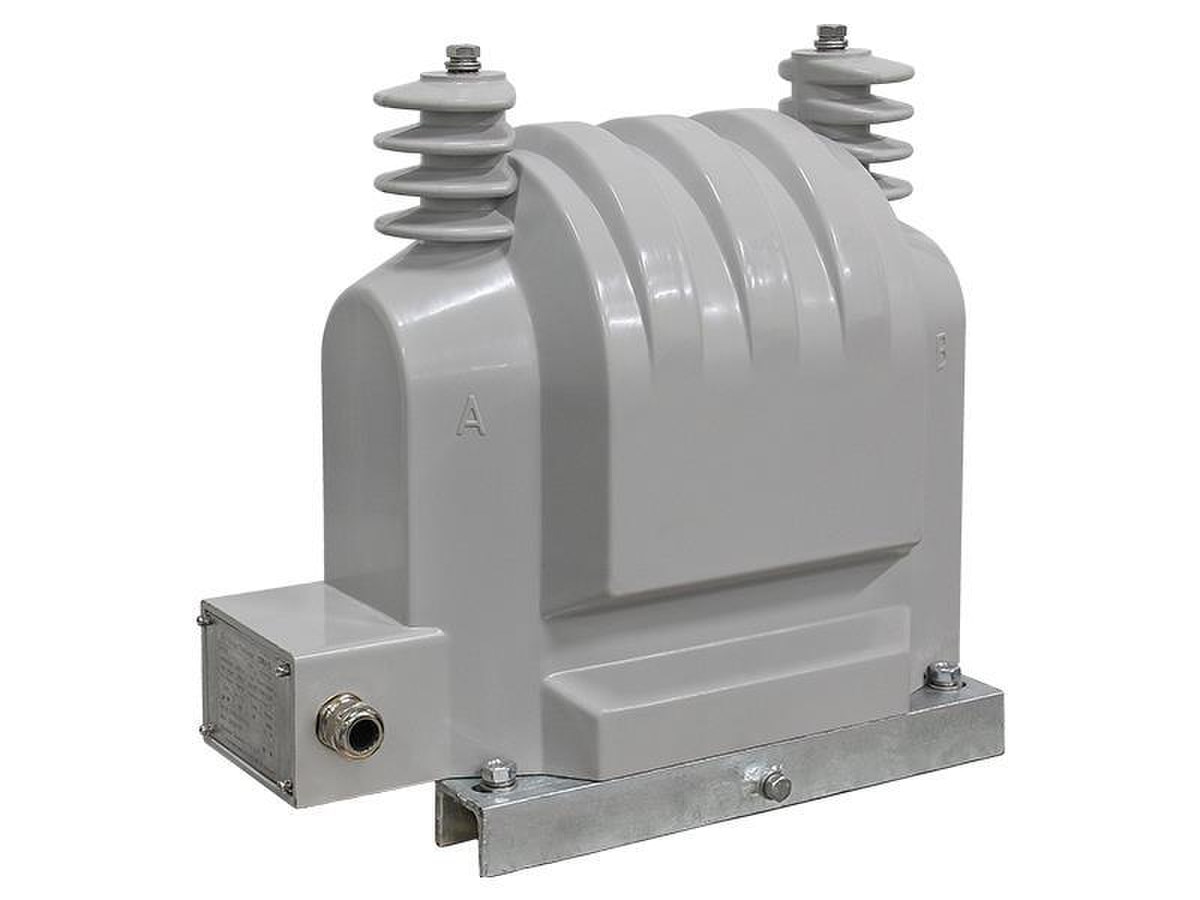

CY Solid Dielectric Voltage Transformers 11kV-33kV, 120V-230V
Epoxy resin casting and fully enclosed construction, widely used for measuring voltage and powering protection relays.
Specifications
- Installation Site: Outdoor
- Rated Frequency: 50/60Hz
- Fused or Unfused options
- Burden Power Factor: Cos ɸ = 0.8 (lagging)
- Technical Standard: IEC 60044-2 (IEC 61869-1&3)
- Stainless Steel Fittings as standard
- HDG mounting bracket available
- Weight: 56kg
- Wildlife guards available
NOTE: Current Transformers also available to custom order.
Example Specification
| TYPE | RATED PRIMARY VOLTAGE (kV) | RATED SECONDARY VOLTAGE (kV) | ACCURACY CLASSES COMBINATION | RATED OUTPUT (VA) | THERMAL LIMITING OUTPUT (VA) | RATED INSULATION LEVEL (kV) |
|---|---|---|---|---|---|---|
| JDZW14-12 | 11 | 0.11 | 0.2 | 50 | 600 | 12/28/75 |
| 0.5 | 100 | |||||
| 1 | 150 | |||||
| 0.11/0.11 | 0.2/0.2 | 25/25 | 300/300 | |||
| 0.2/0.5 | 25/50 | |||||
| 0.11/0.22 | 0.2/6P | 25/800 | 800 | |||
| 0.5/6P | 50/800 |
