Heavy Wall Heatshrink

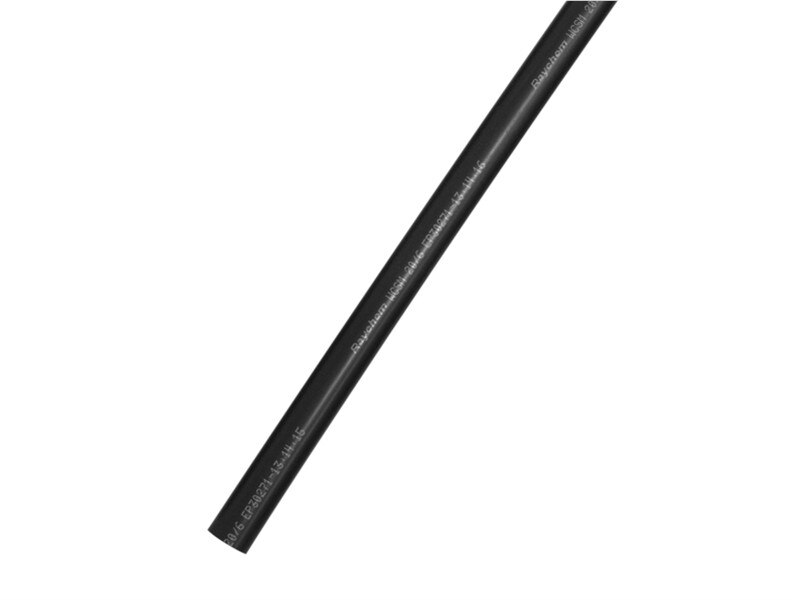

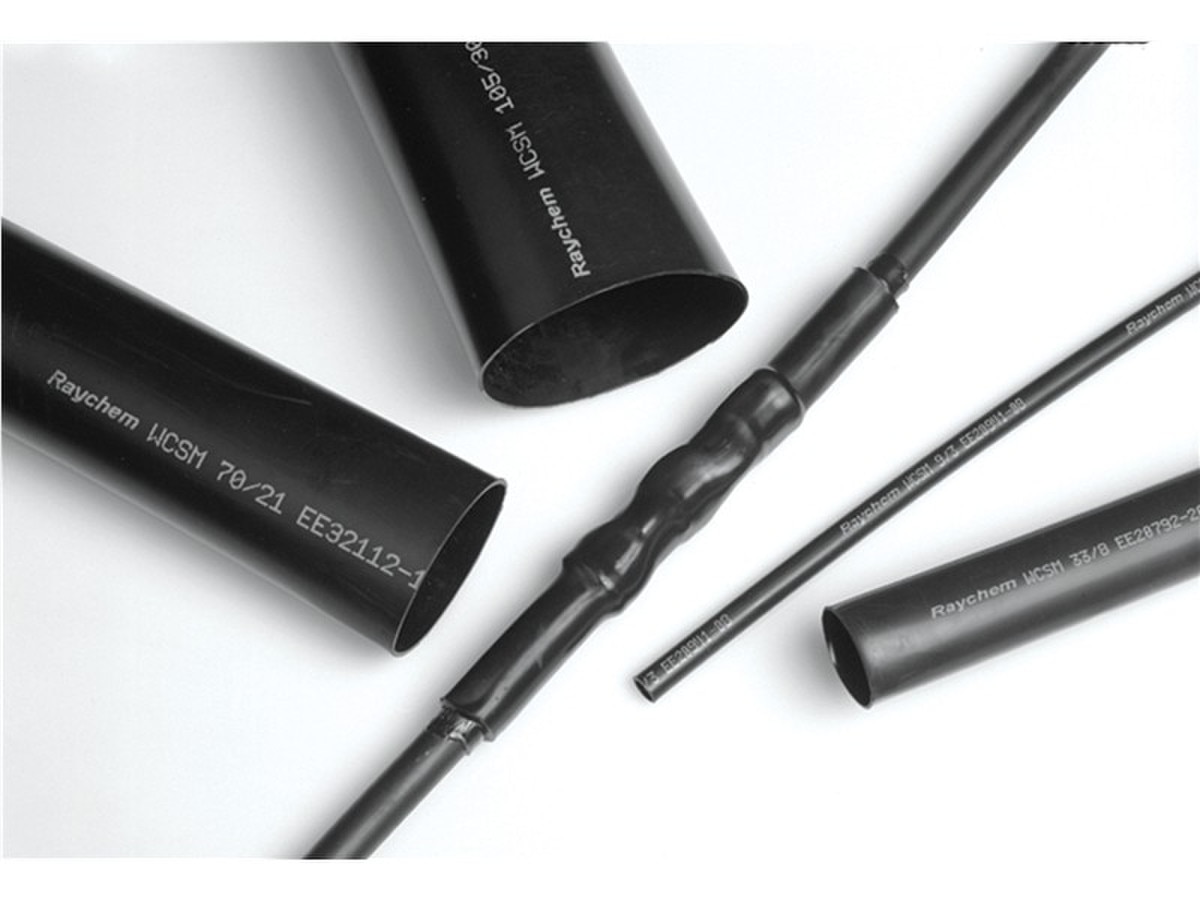

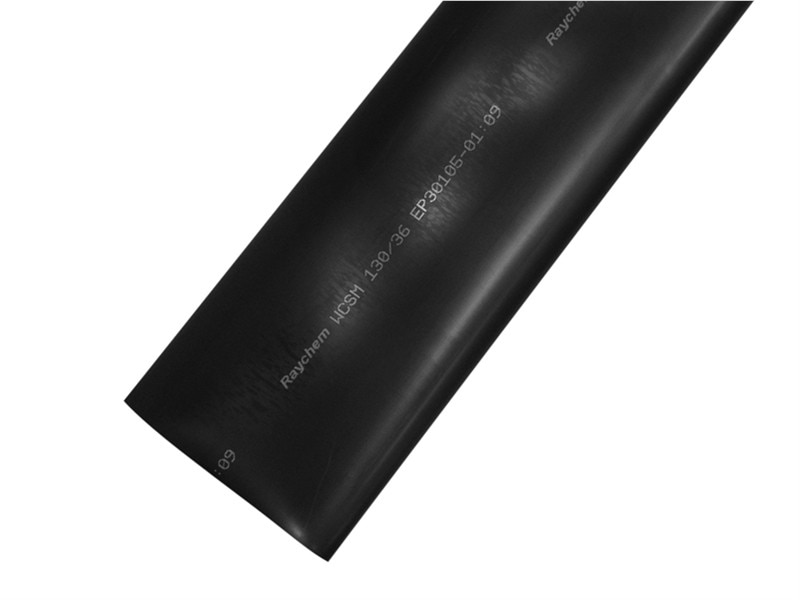

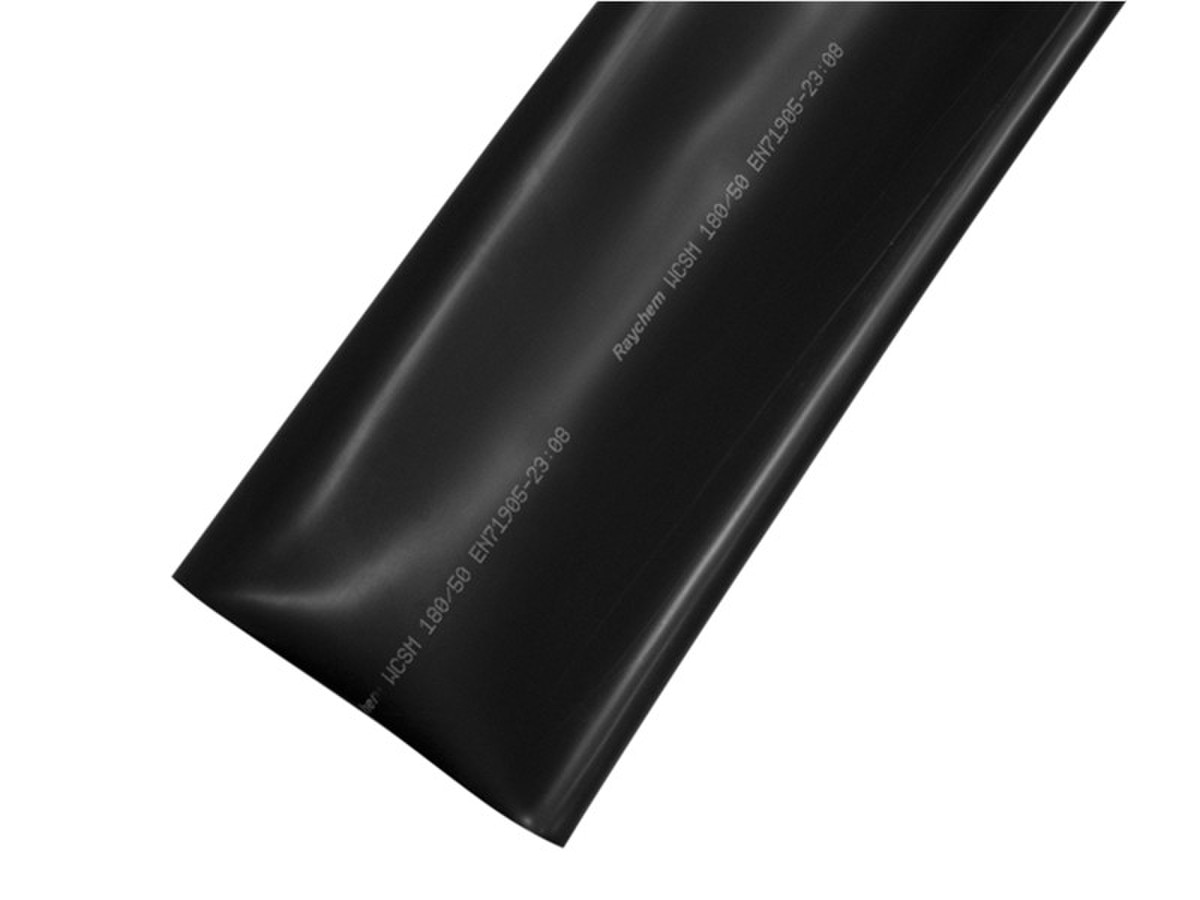

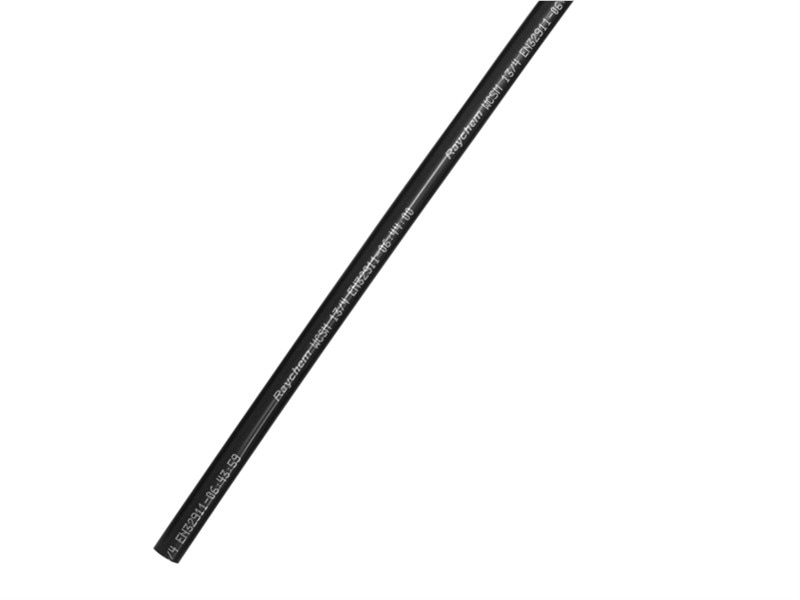

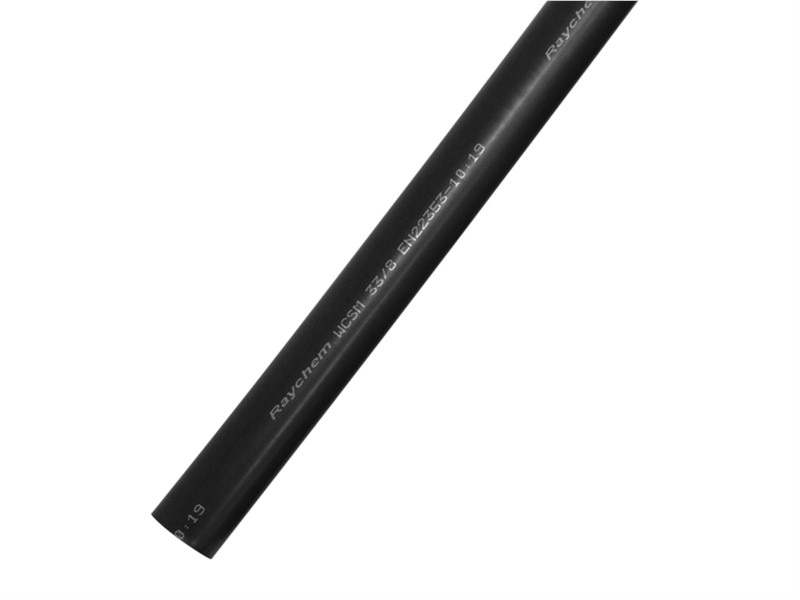

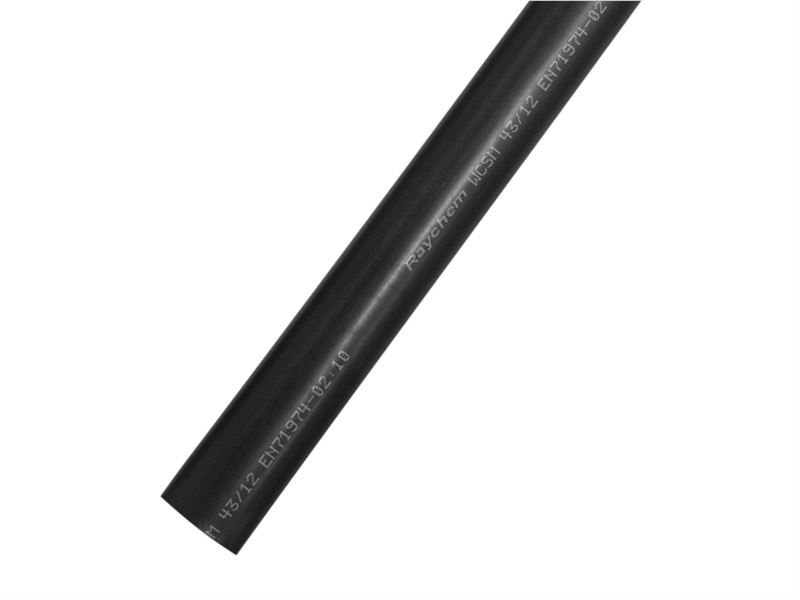

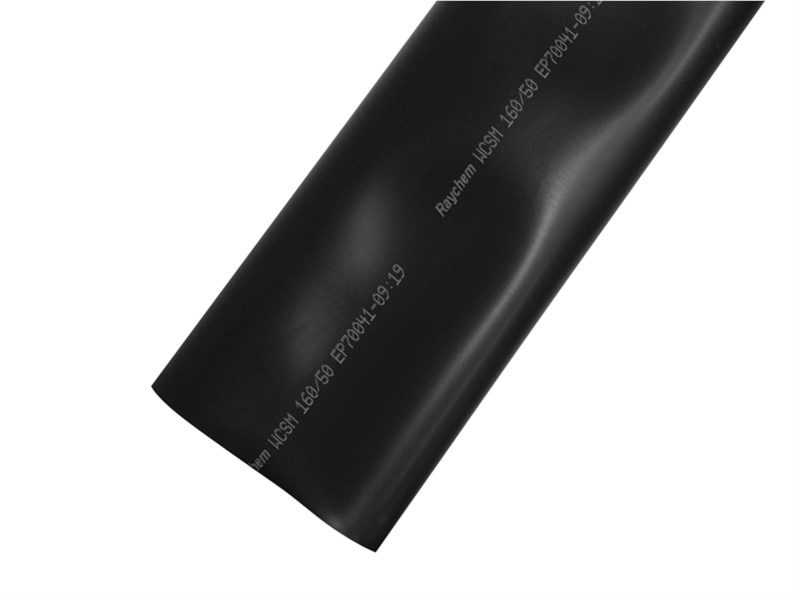

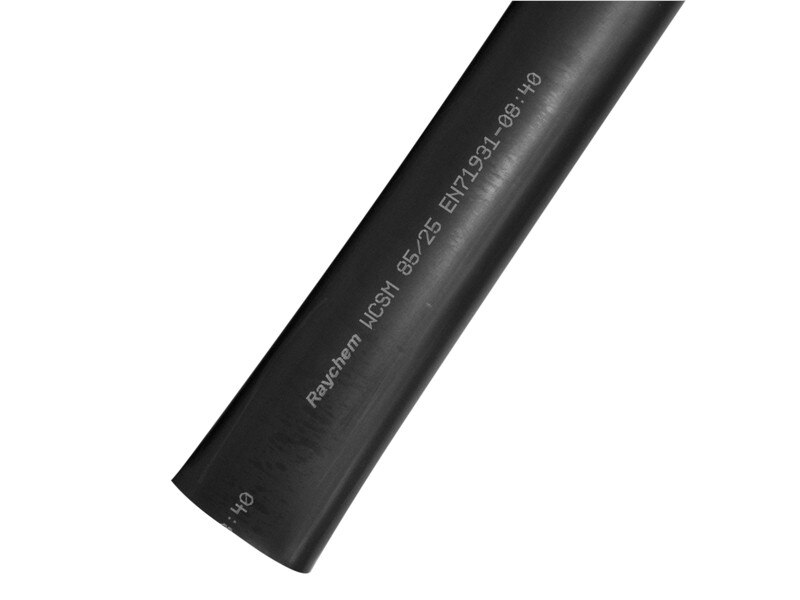

WCSM is a heatshrinkable heavy-wall tubing for insulating and sealing power cables and accessories. WCSM material is halogen free and UV resistant. WCSM tubing’s mechanical strength enables immediate back-filling of cable trenches after jointing. It is widely used to insulate, protect and seal power cable joints, accessories and electrical connections.
Applications
- Fast cost effective way to waterproof joints
- Low voltage underground jointing and terminations
- Sealing of lugs and glands
- Resistant to chemicals, corrosion and decay
- Operating Temperature range -40°C to 120°C
- Shrink ratio 4:1
- Adhesive wall
- Voltage class 1kV
- Black Colour
- Other lengths available on request
- All lengths subject to standard cutting tolerances
- Sealant lined
- Halogen free
Dimensions
Note:
1. Dimensions in millimetres
2. Max. Longitudinal change after free recovery: +5%/-10%
A = as supplied, B = after heating
Inside Diameter D (mm) | Wall Thickness W (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Cat No. | Application Range Diameter (mm) | Min A | Max B | Min A. | Max B. | Standard Length | Qty | Price | ||
