As an expert in sealing products, we know that a leakproof building entry starts with getting the “hole in the wall” right first time. It is for this reason that we have dedicated several decades to the development of innovative, high-quality and easy-to-use wall sleeves and flange constructions. We can supply products for installation flush with shuttering, for setting in mortar and for retrofit dowel-fixing. Fixed/loose flange constructions provide a reliable means of integrating bitumen thick coatings or waterproof sheeting, the use of which is prescribed according to DIN 18195 Part 6 for protection against water penetration from the outside or seepage water.


If you can't find what you are looking for, please contact us directly for other product lines.

Back

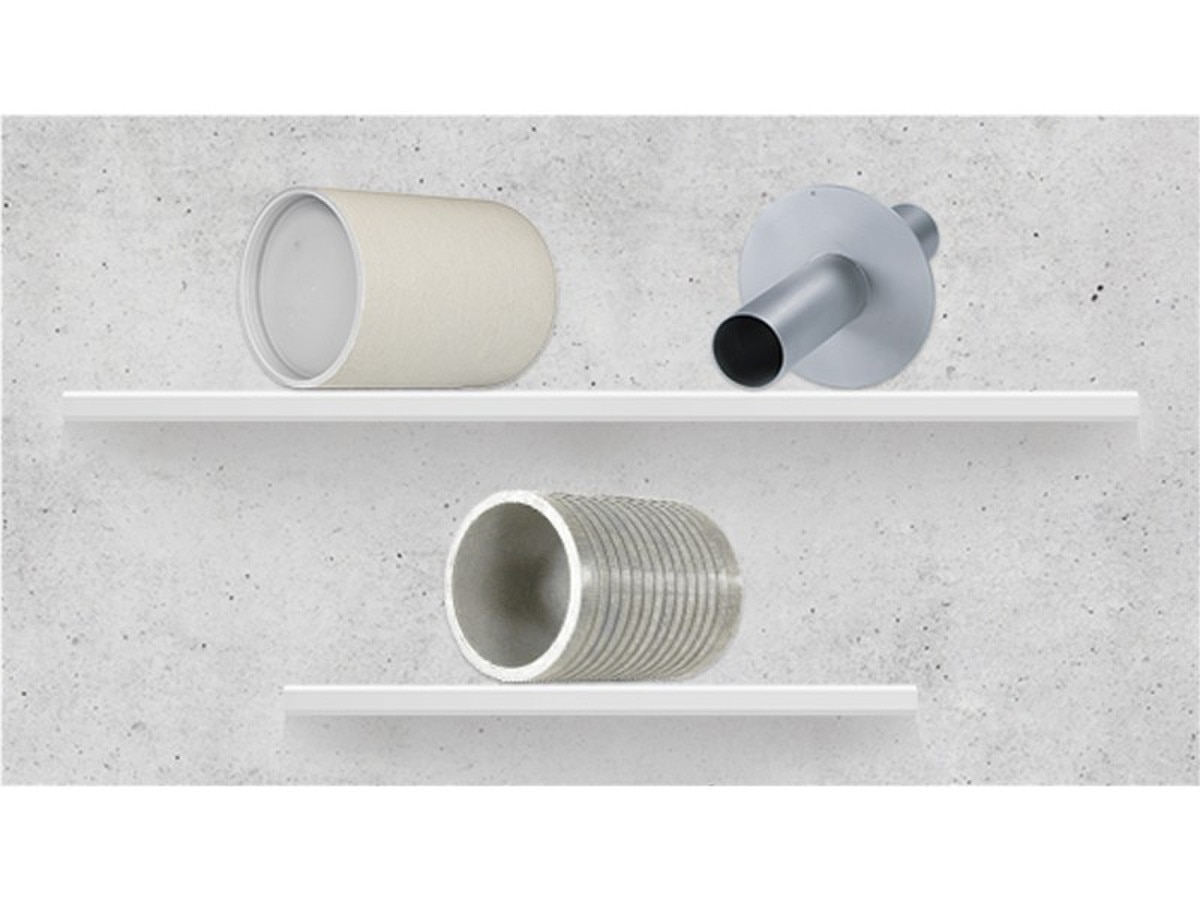

Standard Wall Sleeves

TypeCodeDescription
Cement-coated Wall Sleeve with special coatingZVRFor installation in waterproof concrete tank. Coating merges seamlessly with the concrete.

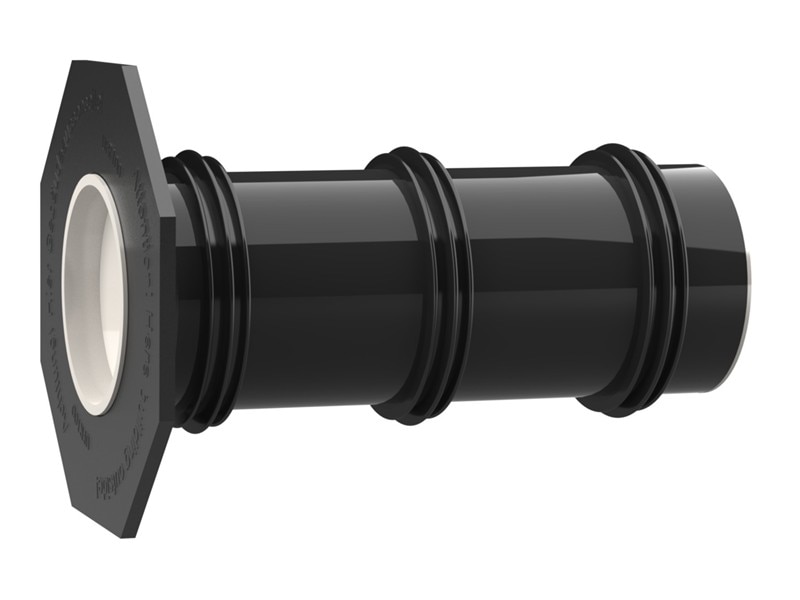

Universal Wall Sleeve for any type of wallUFRFacilitates sealing in all types of wall through a combination of integrated patch flange and 3-ribbed seal.
Renovation Wall SleeveSFRFor retrofit installation in brickwork or concrete walls.
Fibre Cement Wall SleeveFZRFor setting in concrete or mortar. Grooves all the way around the outside ensure a tight and force-fit bond.
Fibre Cement Wall Sleeve (split)FZR-GConsisting of two half-shells for retrofit sealing of media lines that have already been laid.
Connection Wall SleeveAFR 100/XFor the direct connection of a smooth duct DN 110 with plug-in/glue-in socket.
Connection Wall Sleeve for double & element wallsAFR-E 100/XFor the direct connection of a smooth duct DN 110 with plug-in/glue-in socket.

Flange Wall Sleeves

TypePurposeCodeDescription
Stainless Steel Wall Sleeve with Puddle FlangeSetting in concreteHRD-FUMPuddle flange serves as water barrier and creates a force-fit connection.
Stainless Steel Flange SplitRetrofit dowellingHRD-FGFor dowelling through existing recesses/break-throughs in walls or floor slabs for media lines.
Stainless Steel FlangeRetrofit dowellingHRD-FFor dowelling through existing recesses/break-throughs in walls or floor slabs.
Fixed/Loose Flange Wall Sleeve GalvanisedSetting in concrete for black tankHRD-FUF-vzFor setting in concrete or mortar in walls, ceilings or floors.
Fixed/Loose Flange Wall Sleeve Made From Stainless SteelSetting in concrete for black tankHRD-FUFFor setting in concrete or mortar in walls, ceilings or floors.
Fixed/Loose Flange Wall Sleeve GalvanisedRetrofit dowelling for black tankHRD-FUFA-vzFor the direct connection of a smooth duct DN 110 with plug-in/glue-in socket.
Fixed/Loose Flange Wall Sleeve Made From Stainless SteelRetrofit dowelling for black tankHRD-FUFAFor dowelling with wall sleeves, core drills or breakthroughs.
Polymer FlangeWith integrated Spirit LevelHSI150 DFKFor retrofit dowelling using core drills or for screwing onto housing.
Back

Hauff Short Form_web.pdf
1200102000 Cement-coated Wall Sleeve with special coating 100/2000 For installation in waterproof concrete tank. Coating merges seamlessly with the concrete.

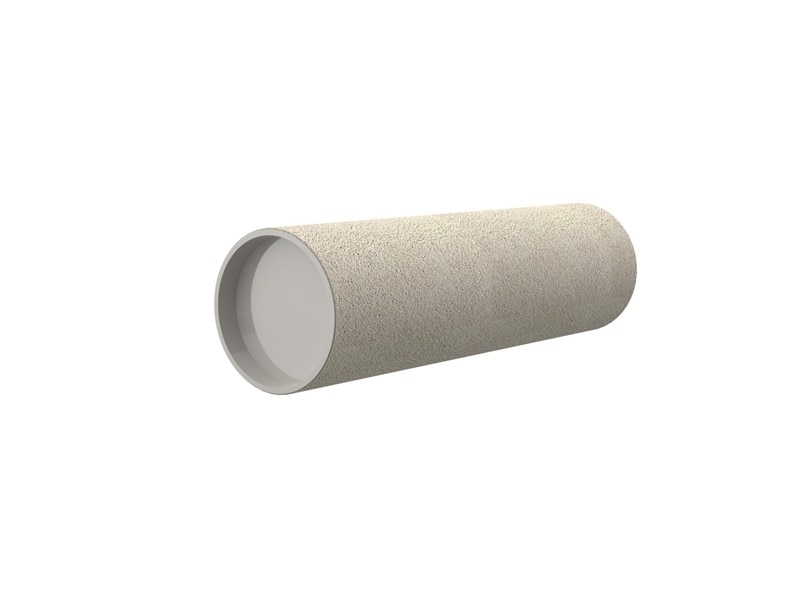

1200152000 Cement-coated Wall Sleeve with special coating 150/2000 For installation in waterproof concrete tank. Coating merges seamlessly with the concrete.
1200202000 Cement-coated Wall Sleeve with special coating 200/2000 For installation in waterproof concrete tank. Coating merges seamlessly with the concrete.
1200252000 Cement-coated Wall Sleeve with special coating 250/2000 For installation in waterproof concrete tank. Coating merges seamlessly with the concrete.
3030393972 100mm ZVR Wall Sleeve End Cap 100 For installation in ends of cut wall sleeves

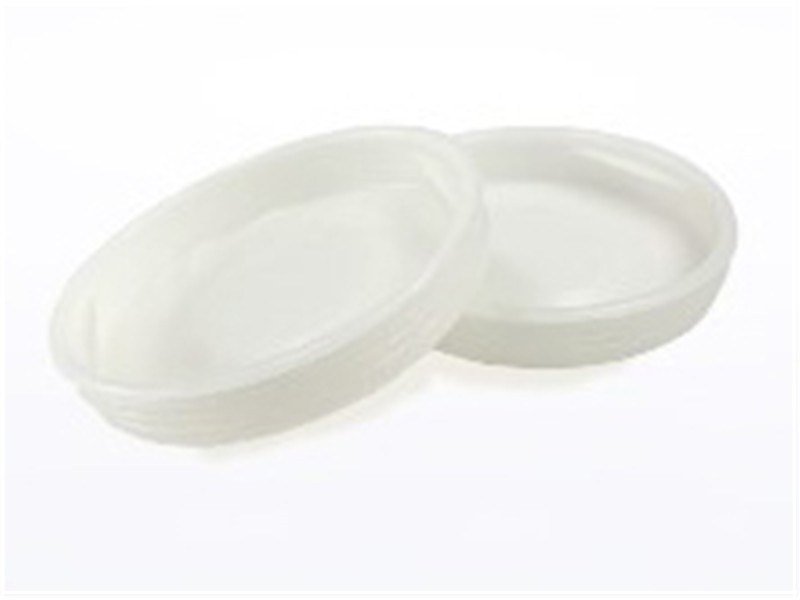

5190011990 200mm ZVR Wall Sleeve End Cap 200 For installation in ends of cut wall sleeves
3030300244 Universal Wall Sleeve for any type of wall 100/200 Facilitates sealing in all types of wall through a combination of integrated patch flange and 3-ribbed seal.
3030300249 Universal Wall Sleeve for any type of wall 100/400 Facilitates sealing in all types of wall through a combination of integrated patch flange and 3-ribbed seal.
3030300251 Universal Wall Sleeve for any type of wall 150/200 Facilitates pre-cast sealing in all types of wall through a combination of integrated patch flange and 3-ribbed seal for 200mm wall thickness.
3030300256 Universal Wall Sleeve for any type of wall 150/400 Facilitates pre-cast sealing in all types of wall through a combination of integrated patch flange and 3-ribbed seal for 400mm wall thickness.
3030300258 Universal Wall Sleeve for any type of wall 200/200 Facilitates pre-cast sealing in all types of wall through a combination of integrated patch flange and 3-ribbed seal for 200mm wall thickness.
3030300263 Universal Wall Sleeve for any type of wall 200/400 Facilitates pre-cast sealing in all types of wall through a combination of integrated patch flange and 3-ribbed seal for 400mm wall thickness.

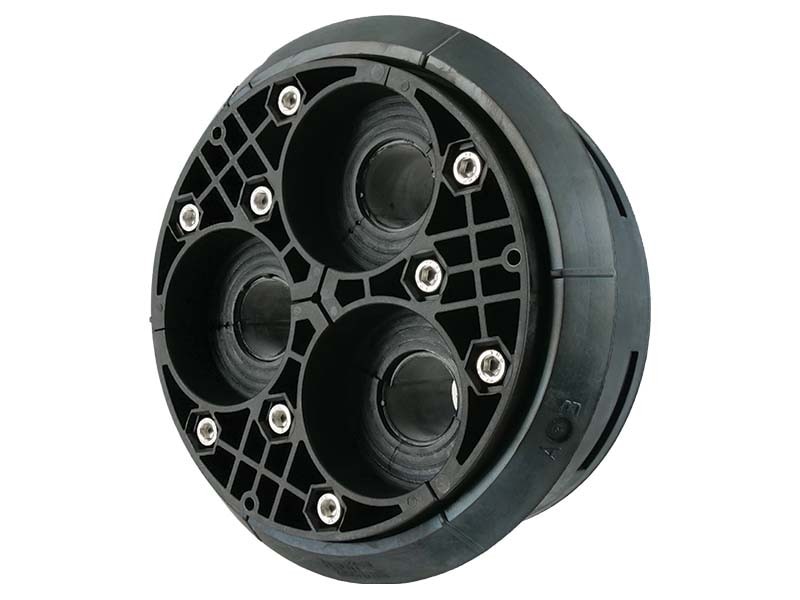

2102200000 HSI 150-DG-3/24-54 Split System Cover 150 Composite Press Seal and Rubber Adapter Ring to fit into the HIS wall sleeve range with 3 x cable apertures for between 24 & 54mm cable OD's

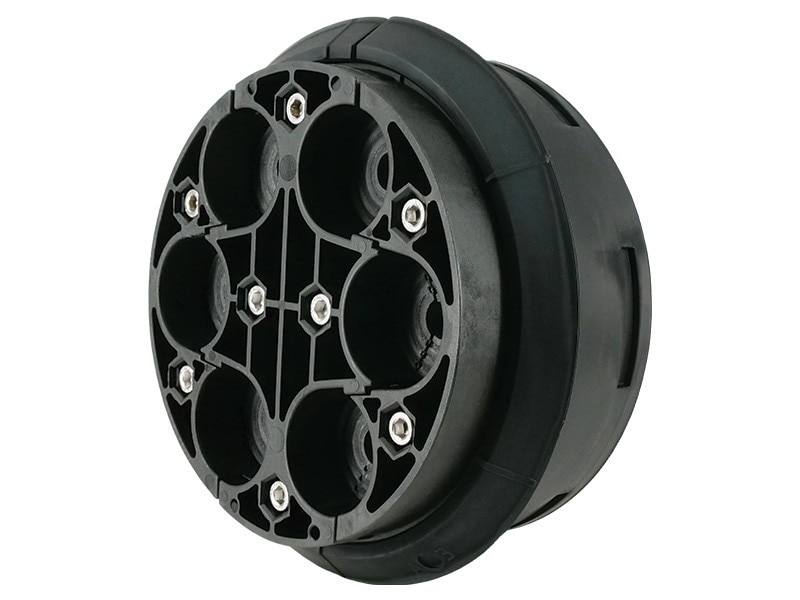

2102200010 HSI 150-DG-6/10-36 Split System Cover 150 Composite Press Seal and Rubber Adapter Ring to fit into the HIS wall sleeve range with 6 x cable apertures for between 10 & 36mm cable OD's

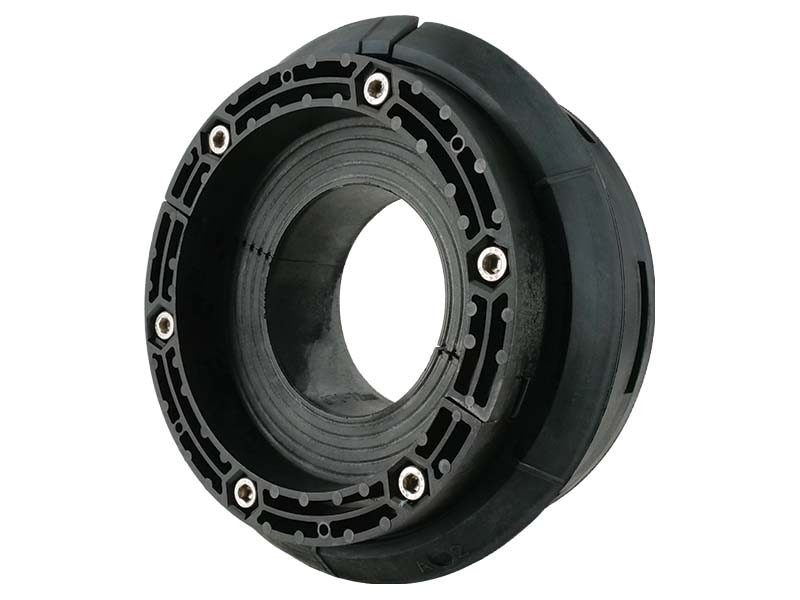

2102200020 HSI 150-DG-1/36-70 Split SystemCover 150 Composite Press Seal and Rubber Adapter Ring to fit into the HIS wall sleeve range with 1 x cable aperture for between 36 & 70mm cable OD
2102200030 HSI 150-DG-1/70-112 Split System Cover 150 Composite Press Seal and Rubber Adapter Ring to fit into the HIS wall sleeve range with 1 x cable aperture for between 70 & 112mm cable OD

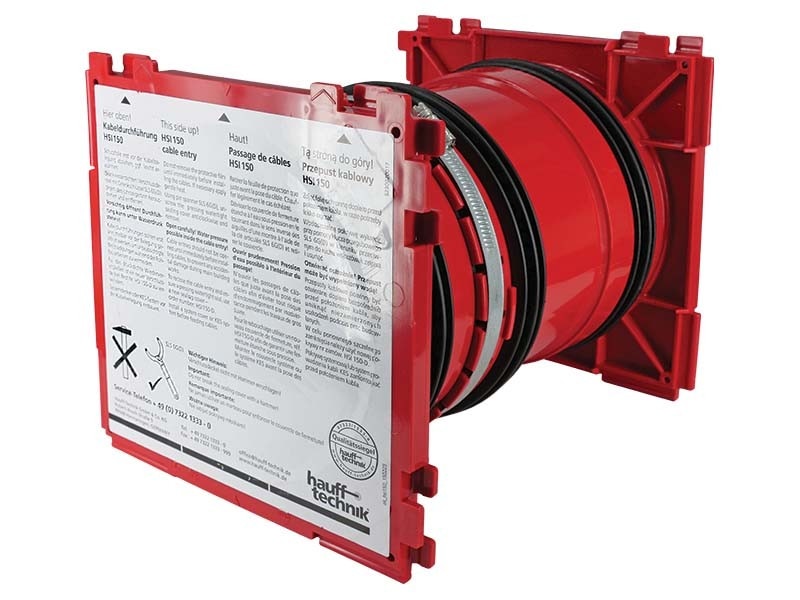

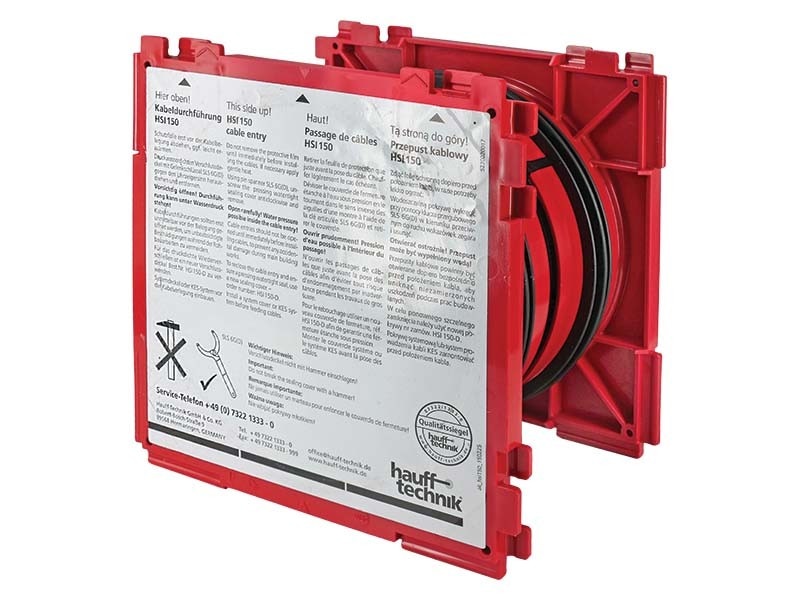

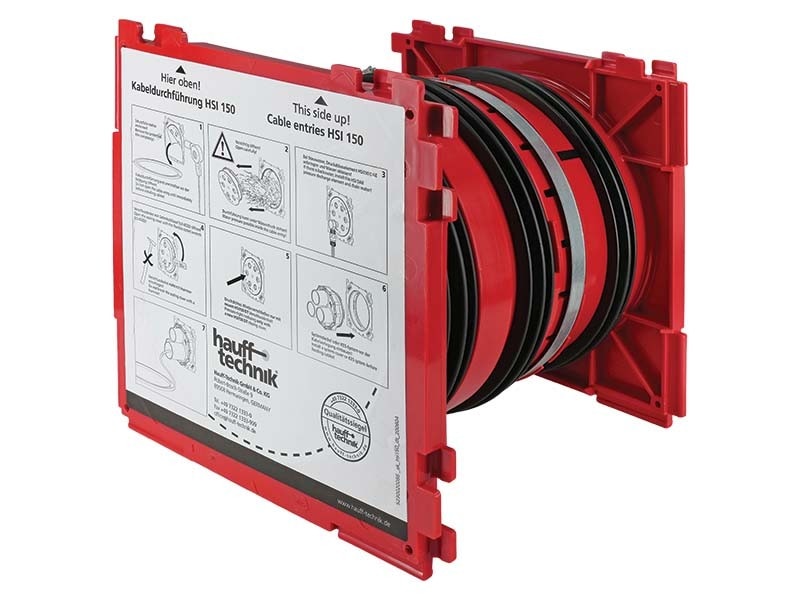

3030303369 HSI 150-K2 Double Sided flange Wall Insert 150/150 Facilitates pre-cast sealing in all types of wall with integrated patch flanges at both sides with 3-ribbed seal for wall thickness of 150mm.

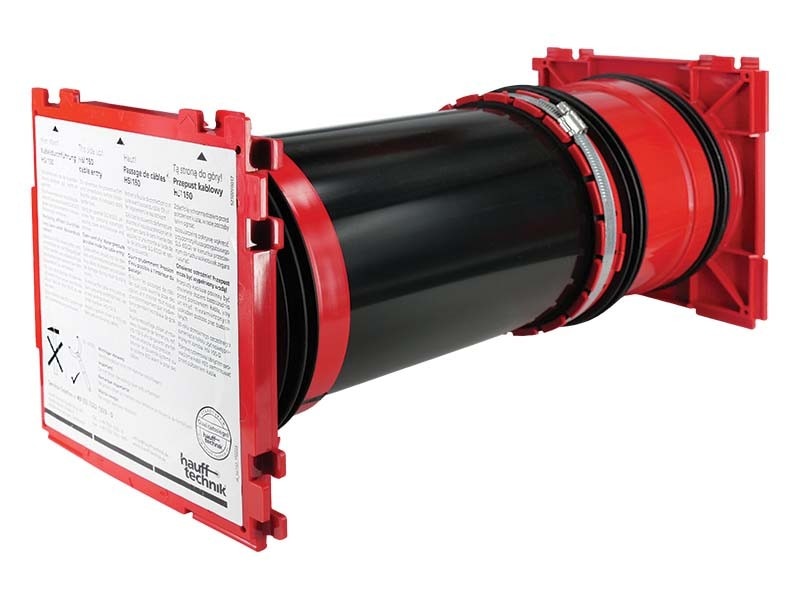

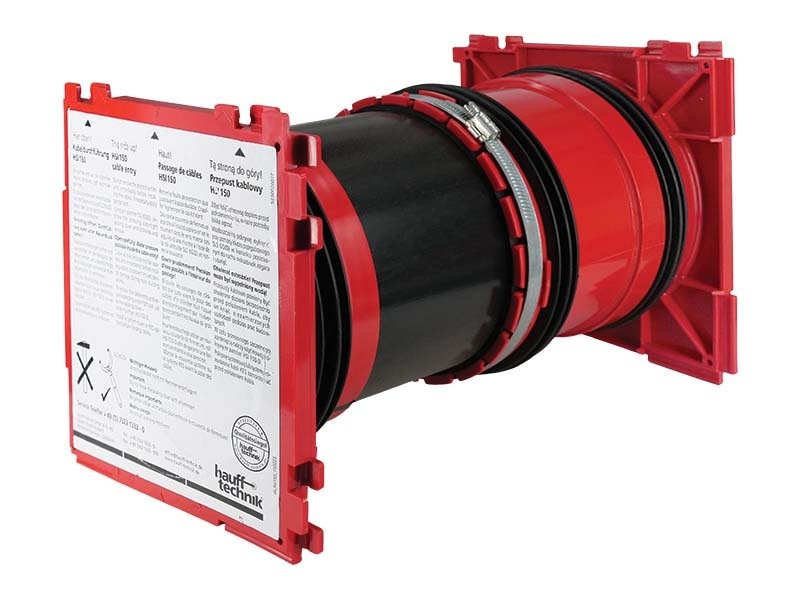

3030300084 HSI 150-K2 Varia/200-260 Double Wall Insert 150/200-260 Facilitates pre-cast sealing in all types of wall with integrated patch flanges at both sides with 3-ribbed seal for wall thickness between 200 & 260mm.
3030300085 HSI 150-K2 Varia/260-365 Double Wall Insert 150/260-365 Facilitates pre-cast sealing in all types of wall with integrated patch flanges at both sides with 3-ribbed seal for wall thickness between 260 & 365mm.
3030300086 HSI 150-K2 Varia/365-470 Double Wall Insert 150/365-470 Facilitates pre-cast sealing in all types of wall with integrated patch flanges at both sides with 3-ribbed seal for wall thickness between 365 & 470mm.
3030300087 HSI 150-K2 Varia/470-575 Double Wall Insert 150/475-575 Facilitates pre-cast sealing in all types of wall with integrated patch flanges at both sides with 3-ribbed seal for wall thickness between 470 & 575mm.
3030476251 HSI150 1X1 KMA172/200 Wall Sleeve 150 Facilitates pre-cast sealing in all types of wall with integrated patch flange on the internal side and rubber duct connector on external the side, with 3-ribbed seal, for duct OD 172mm, wall thickness 200mm

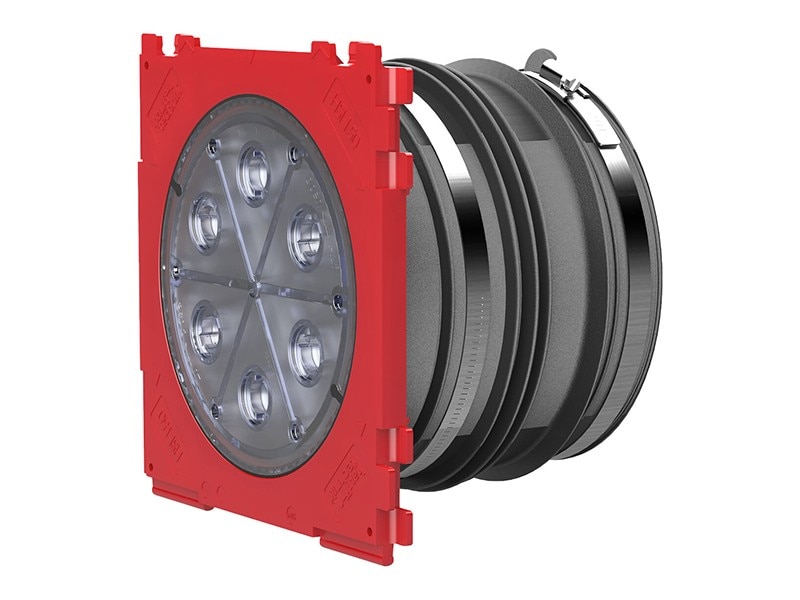

3030477595 HSI150 1X1 KMA172/150 Wall Sleeve 150 Facilitates pre-cast sealing in all types of wall with integrated patch flange on the internal side and rubber duct connector on external the side, with 3-ribbed seal, for duct OD 172mm, wall thickness 150mm
3030477597 HSI150 1X1 KMA172/250 Wall Sleeve 150 Facilitates pre-cast sealing in all types of wall with integrated patch flange on the internal side and rubber duct connector on external the side, with 3-ribbed seal, for duct OD 172mm, wall thickness 250mm

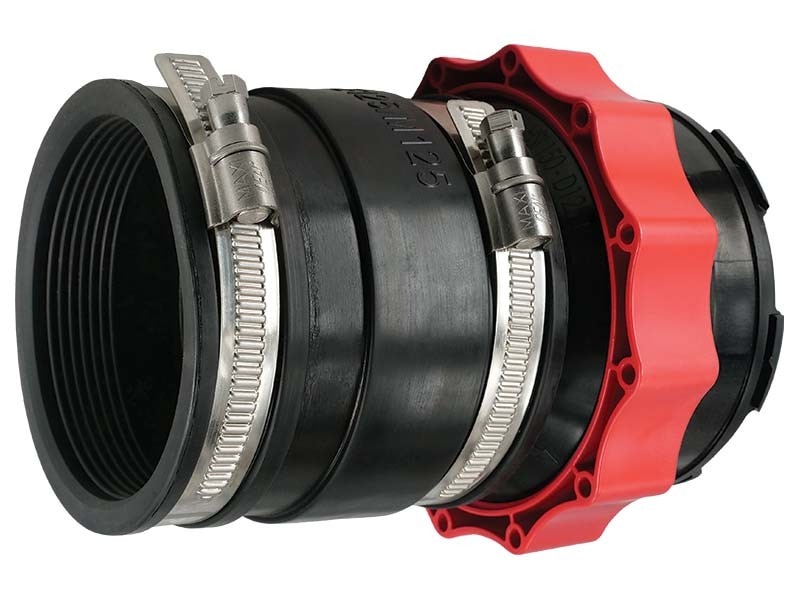

2126010125 HAUFF TECHNIK HSI 150-M125 SYSTEM COVER WITH SLEEVE 150 Integrates with HSI Wall Sleeve for connecting to 125mm external ducts

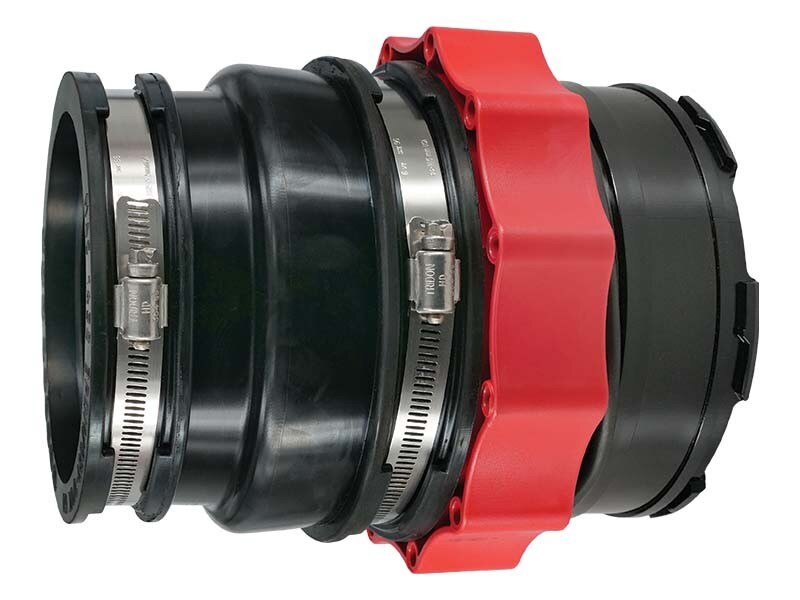

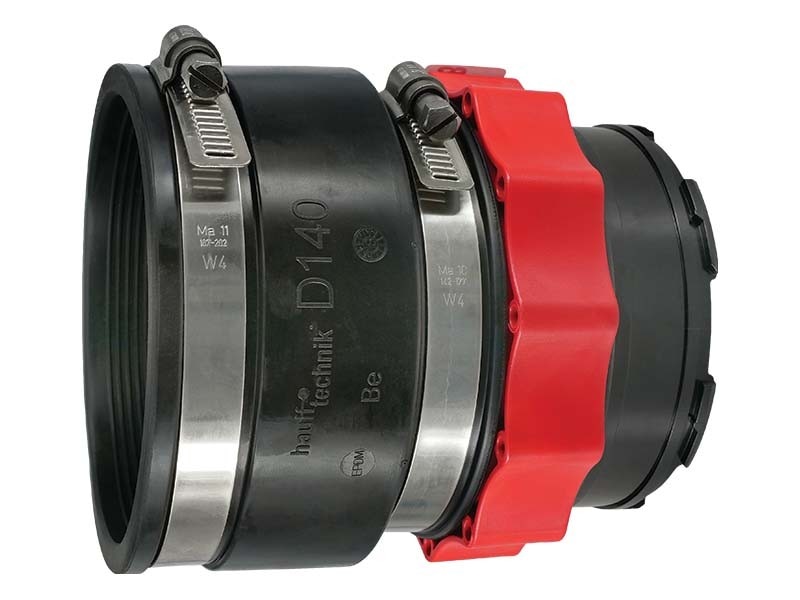

2126010140 HAUFF TECHNIK HSI 150-M140 SYSTEM COVER WITH SLEEVE 150 Integrates with HSI Wall Sleeve for connecting to 140mm external ducts
2126010000 HSI 150-M168 SYSTEM COVER WITH SLEEVE 150 Integrates with HSI Wall Sleeve for connecting to 168mm external ducts

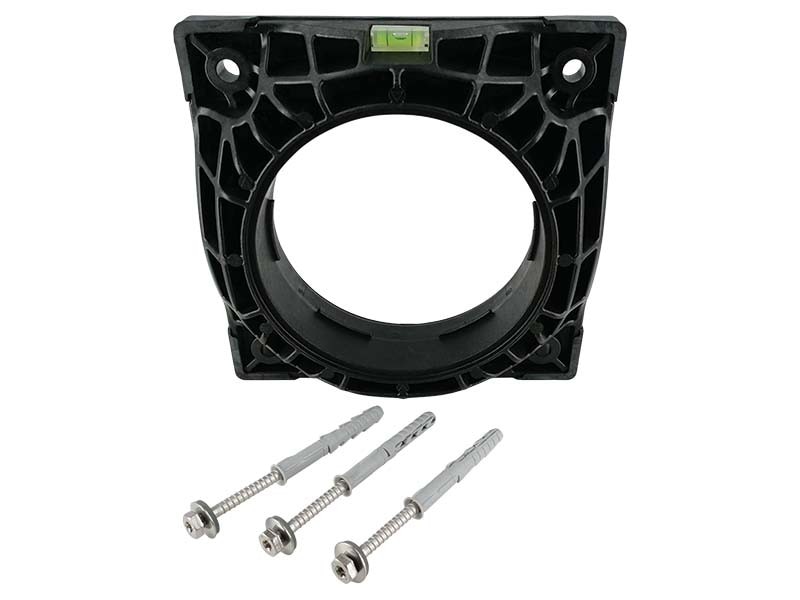

2118010020 HAUFF TECHNIK HSI 150-DFK PLASTIC WALL FLANGE 150 Provides an externally mounted flange as a retorfit or mounted externally to new wall face and presents a circullay opening to accept press seals

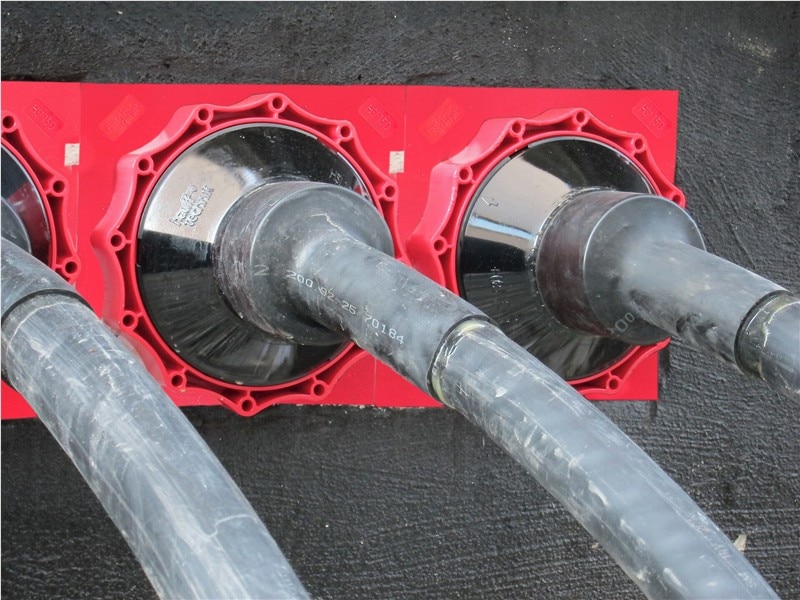

2101100010 HAUFF TECHNIK HSI150 D1X80 WS SYSTEM COVER HEAT SHRINK SLEEVE 150 Integrates with HSI Wall Sleeve for connecting to single cables/ducts via a heat shrink sleeve

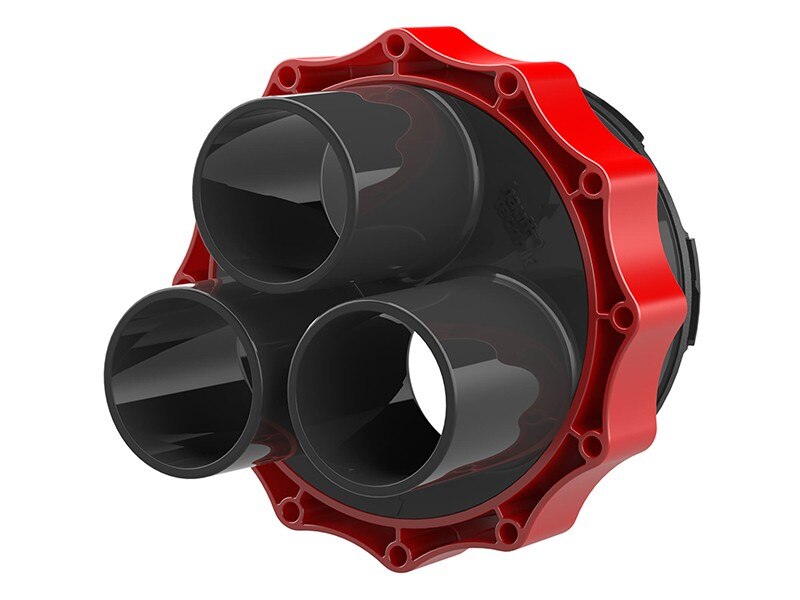

3030300082 HAUFF TECHNIK HSI150 D3X58 WS SYSTEM COVER HEAT SHRINK SLEEVE 150 Integrates with HSI Wall Sleeve for connecting to 3 x cables/ducts via a multiple heat shrink sleeve

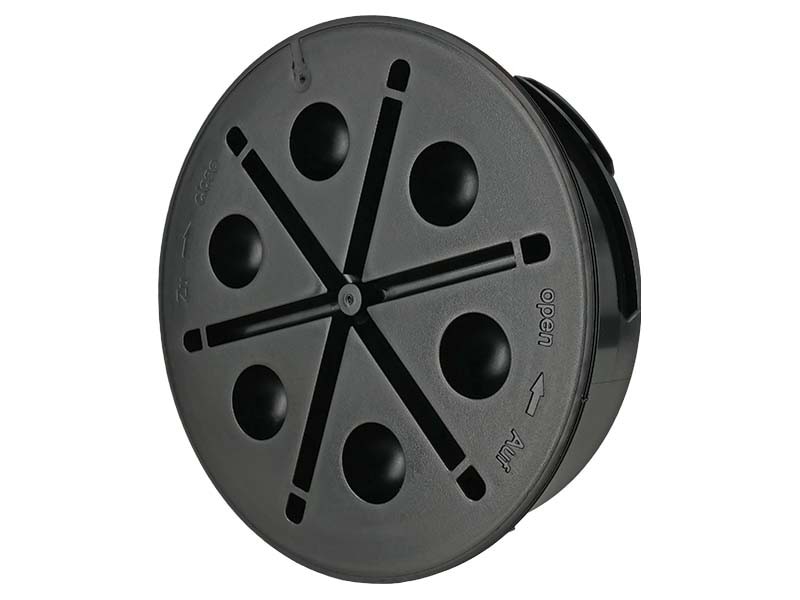

2126010172 HSI 150-D CLOSING COVER 150 Provides a closed seal within the HIS wall sleeve prior to installing cables / services via press seal

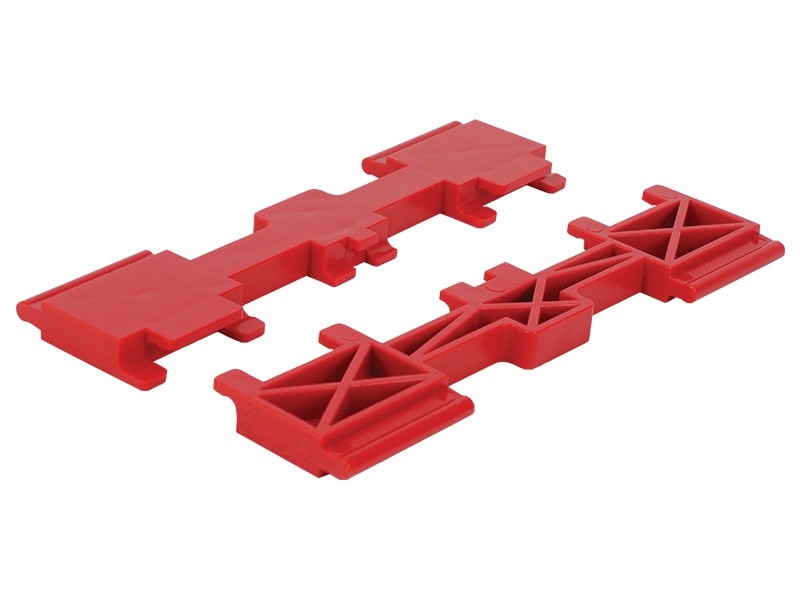

3030300093 HSI-AH 40 SPACER 150 Spacer for fitting between multiple HSI Wall sleeve flanges

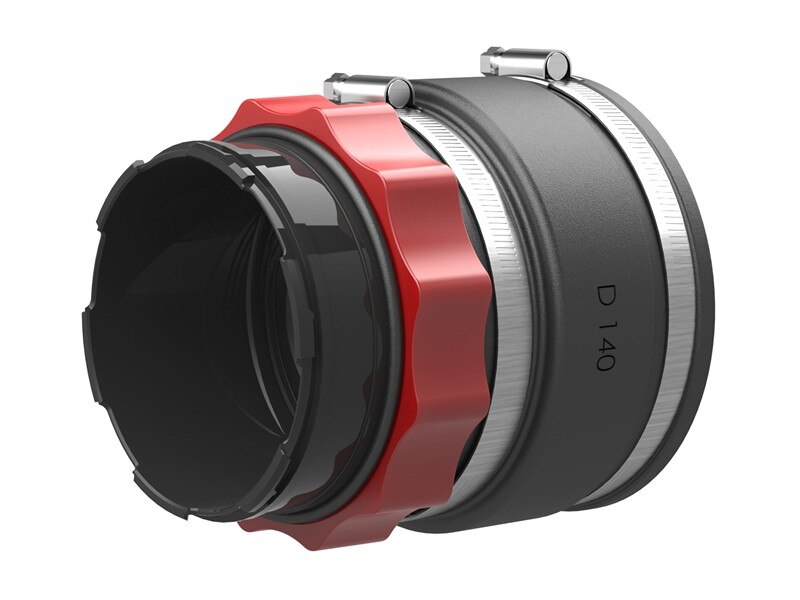

212581000 HAUFF TECHNIK KES-M 150-D SYSTEM COVER WITH SLEEVE 150 Integrates with HSI Wall Sleeve for connecting to 150mm external ducts

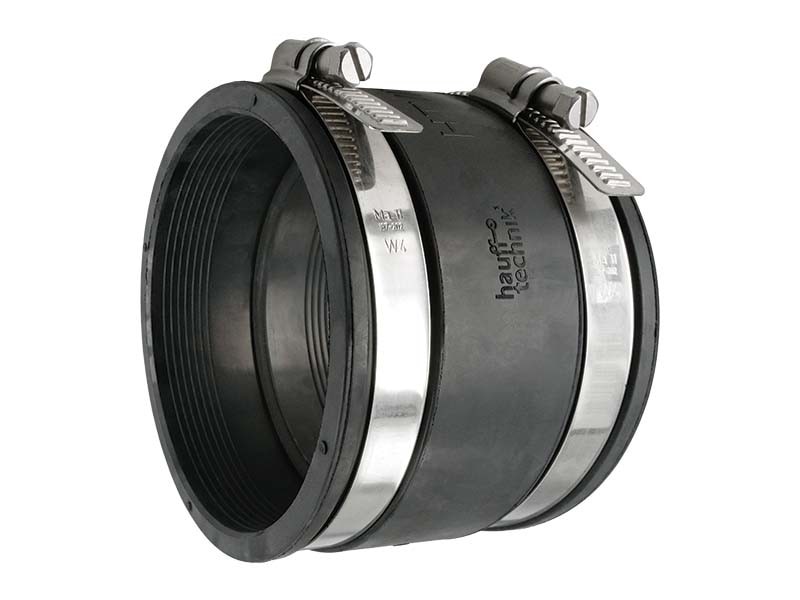

2128020000 HAUFF TECHNIK KES-M 150-HTV CONNECTION SLEEVE FOR HATEFLEX 150 Rubber connection sleeve for connecting rigid duct to corrugated Hateflex flexible duct

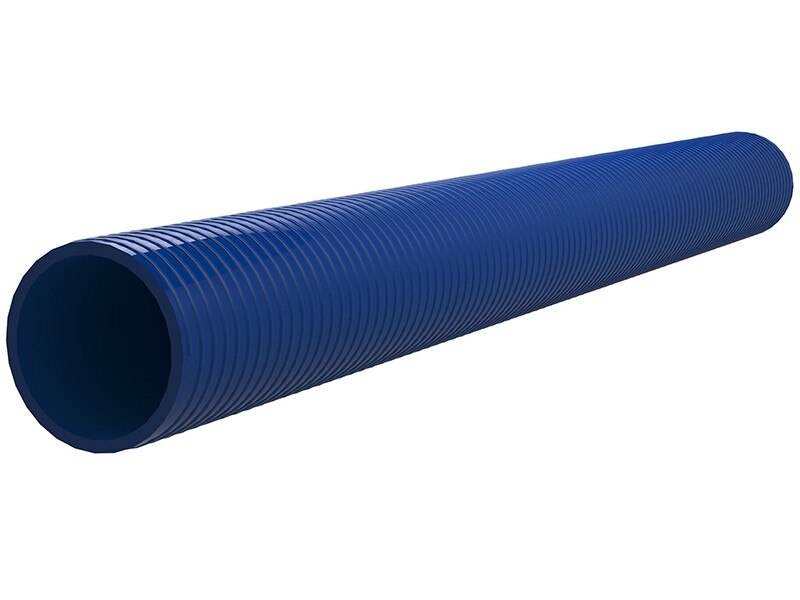

2130002500 HAUFF TECHNIK HATEFLEX 14150/25000 FLEXI CONDUIT 150 150mm x 2500mm corrugated hateflex flexible duct
