Wire Grips / Come Alongs

(0)No Reviews yet

Wire Grips / Come Alo

Description

Used to maintain temporary tension on cables until they can be permanently terminated. These grips are to be used for pulling lines up to tension only, and are not to be used as anchors. To select the correct wire grip simply determine the type of wire or cable to be tensioned, the size of that wire or cable and the maximum safe load required, all of this information is outlined in the table.


The grips have different jaw contours based on the type of wire or cable they are designed to be used on. The jaw length and contour determined ensures the least amount of damage or deformation of the cable or wire.

Back

Downloads

Back

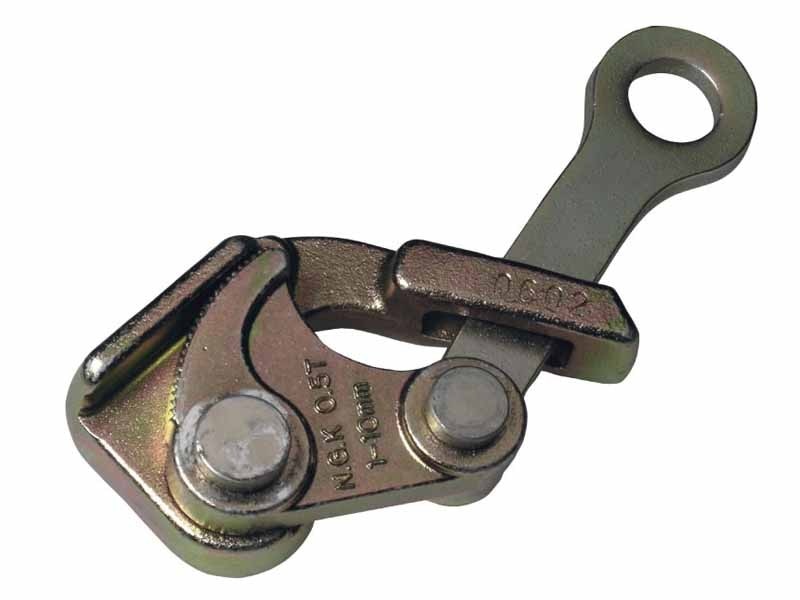

MINI-GRIP MINI-GRIP Steel Rod, Barbed Wire, & Messenger Wire Standard 0.5T 1-10 0.3

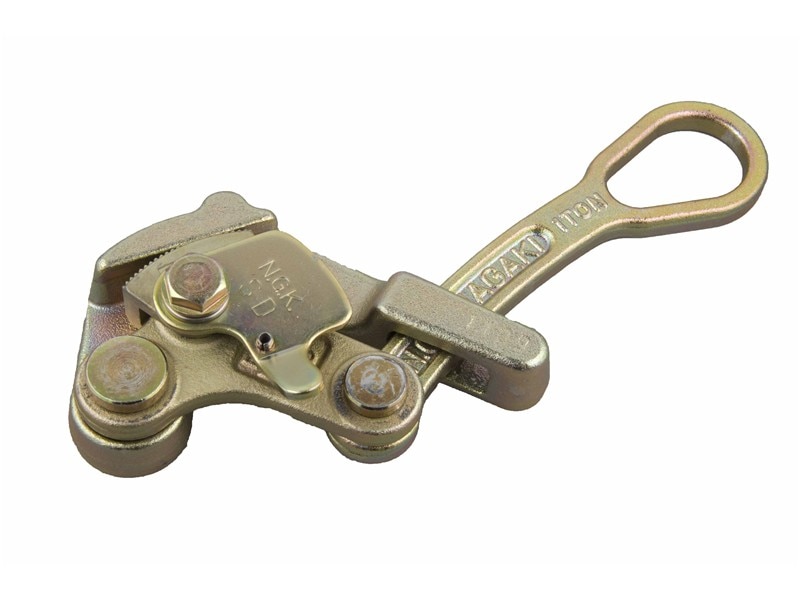

SD-L-GRIP SD-L-GRIP Steel Rod, Copper Wire, & Messenger Wire Large 1T 2.6-15 0.6

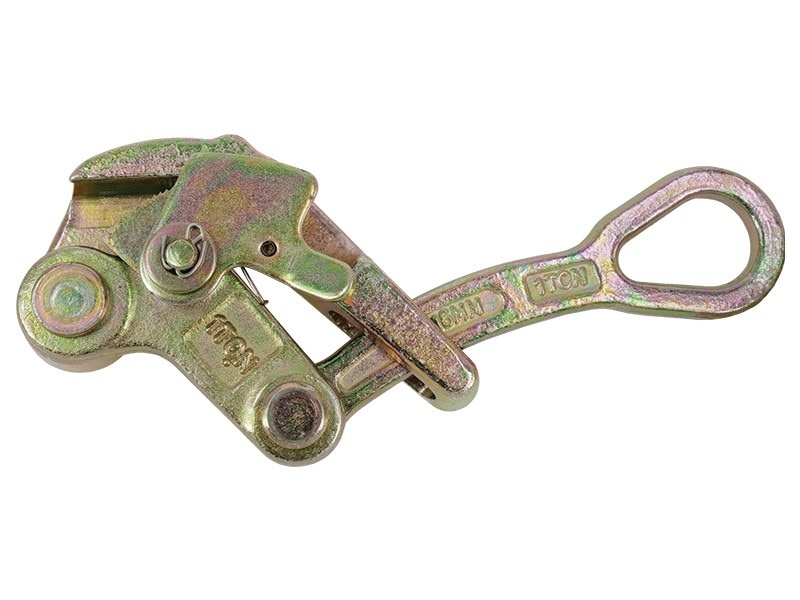

TNSD-L-1000C SD-L-GRIP Steel Rod, Copper Wire, & Messenger Wire Large 1T 2.6-15 0.6

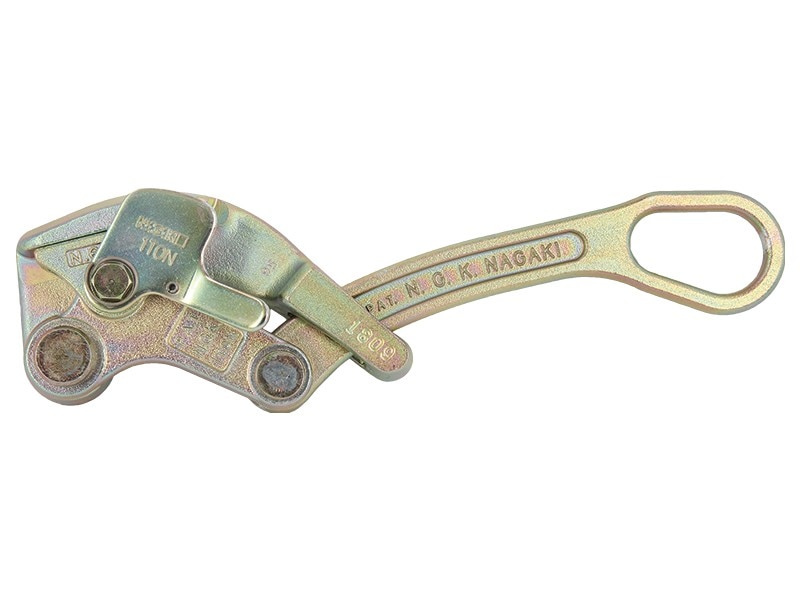

1TON-L-GRIP 1TON-L-GRIP Bare Copper Cable, Covered Conductor, & Messenger Wire Large 1T 4-22 1.1

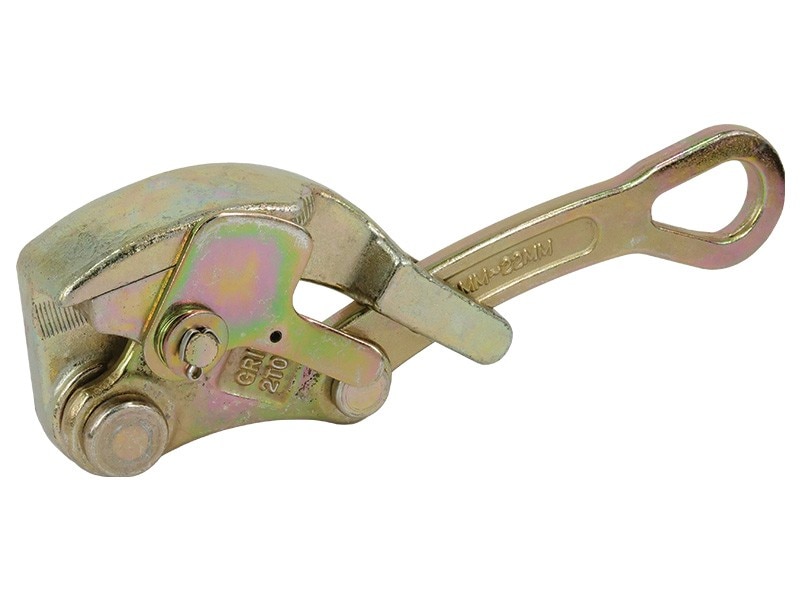

TNS-2000CL 2TON-L-GRIP Bare Copper Cable, Covered Conductor, & Messenger Wire Large 2T 4-22 1.3
2TON-L-GRIP 2TON-L-GRIP Bare Copper Cable, Covered Conductor, & Messenger Wire Large 2T 4-22 1.3

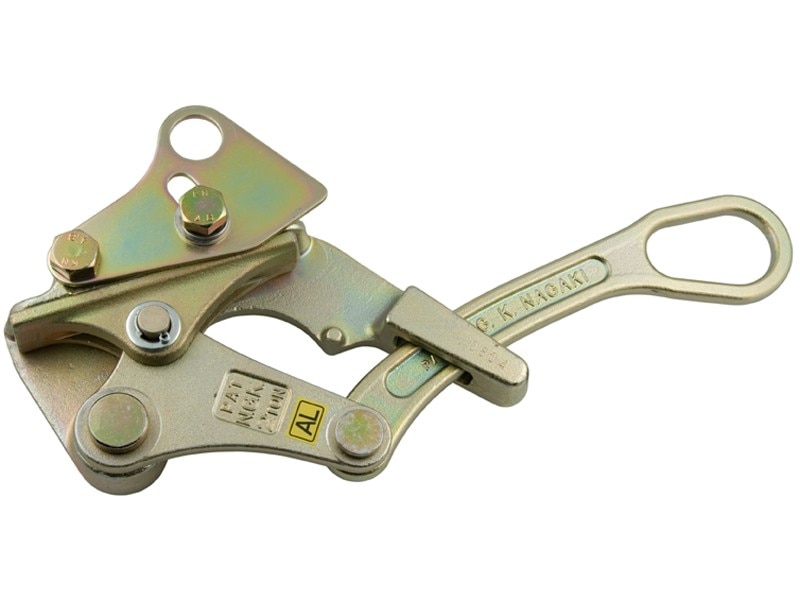

AL-MIDDLE-GRIP AL-MIDDLE-GRIP Bare Aluminium & Bare Copper Cable Large 2T 5-25 1.8

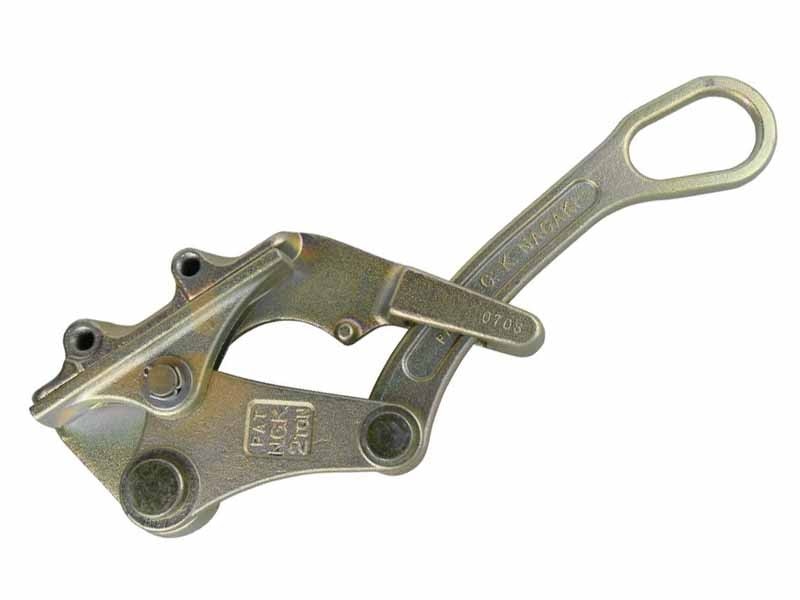

MIDDLE-L-GRIP MIDDLE-L-GRIP Copper Cable, Covered Conductor & Messenger Wire Large 2T 5-25 1.8

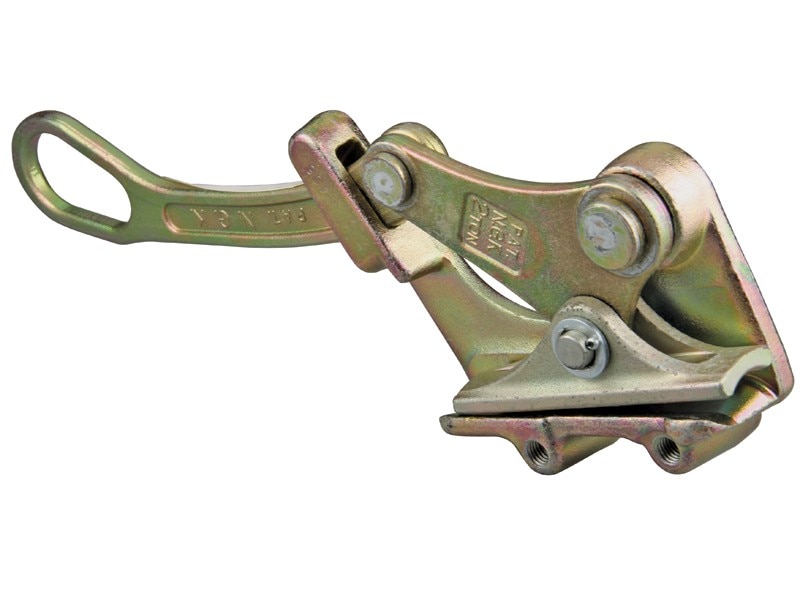

AL-LARGE-GRIP AL-LARGE-GRIP Bare Aluminium & Bare Copper Cable Large 2T 16-32 2

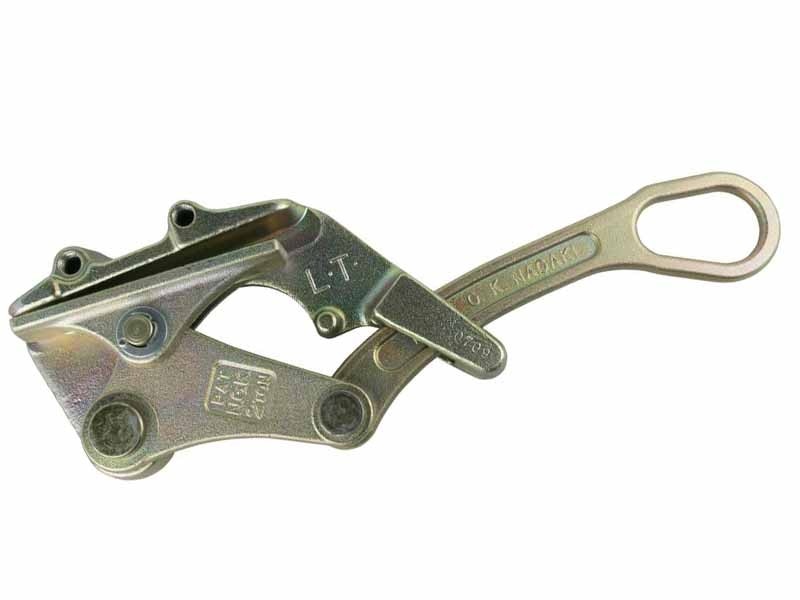

LARGE-L-GRIP LARGE-L-GRIP Copper Cable & Covered Conductor Large 2T 16-32 2.1

Cat No.

Descriptive Code

Type of Conductor

Eye Size

Safe Load

Conductor Diameter Range (mm)

Weight (kg)

Qty

Price
