> CCG Brass (Nickel Plated) Slip On Earth Tag
01632
https://www.transnet.co.nz/shop/Cable+Glands+%26+Duct+Seals/CCG+-+Accessories/CCG+Brass+%28Nickel+Plated%29+Slip+On+Earth+Tag.html
CCG Brass (Nickel Plated) Slip On Earth Tag
larger image
Move mouse over the image to magnify
Product query
Stainless Steel available on request

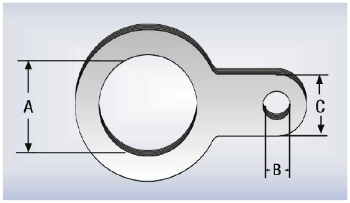

Cat No.
Size Ref
Diameter
A (mm)
Diameter
B (mm)
Dimension
C (mm)
Square
Section (mm²)
Short Circuit Fault
Current Ratings
BS1621 Part5: 1993
Qty
TN-6220-1
0/1
20
7
12x1.5
18
20mm 3.06KA/1SEC
TN-622902
2
25
7
12x1.5
18
25mm 4.00KA/1SEC
TN-622903
3
32
12
22x1.5
33
32mm 5.40KA/1SEC
TN-622904
4
40
12
32x1.5
48
40mm 7.20KA/1SEC
TN-622905
5
50
12
40x1.5
60
50mm 10.40KA/1SEC
TN-622906
6
63
12
40x1.5
60
63mm 10.40KA/1SEC
TN-622907
7
75
12
40x1.5
60
75mm 10.40KA/1SEC
TN-622908
8
82
12
40x1.5
60
-
TN-622909
9
90
12
40x1.5
60
-
