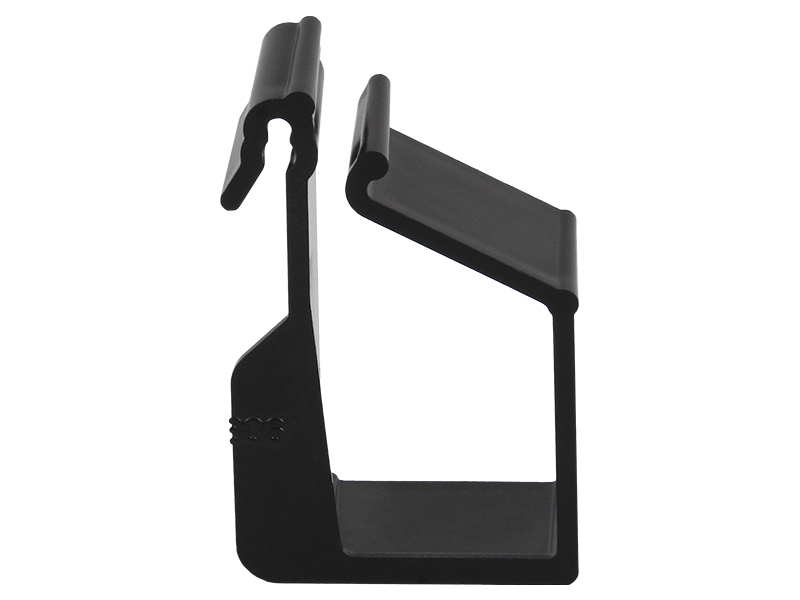

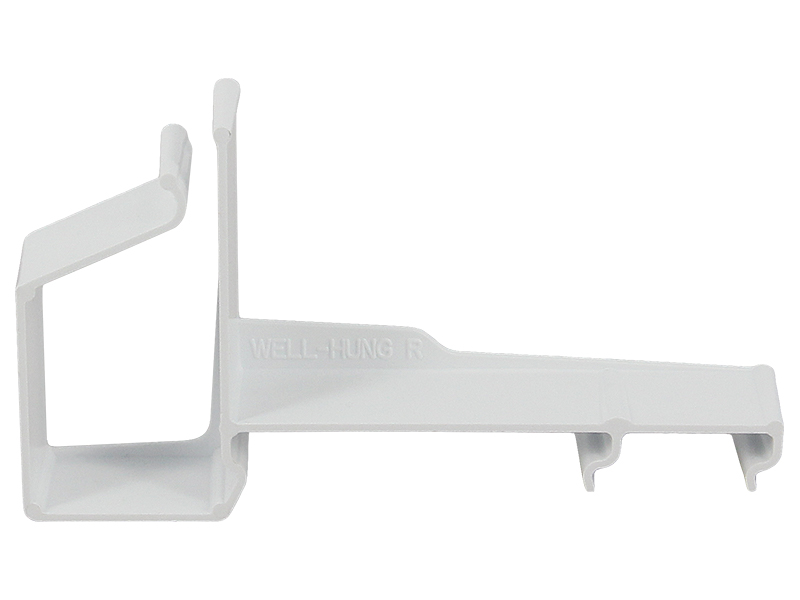

The Well-Hung Support Bracket

The Well-Hung Support Bracket
larger imageMove mouse over the image to magnify
Designed by Tony Bull of SV Enterprises Ltd, the Well-Hung bracket facilitates the quick and safe installation of electrical and data cables on metal formed and wooden ceiling and wall battens. The Well-Hung support bracket clips to a multitude of metal and wooden batten profiles, ensuring cables are safely contained within the bracket catchment rather than landing in the batten tray with the risk of electrocution if a screw penetrates up through the cable.
Cables will now be contained within a secure location and will be in the right vicinity. Using nails, taping, and tying cables to battens is currently common practice in the industry and will now be a thing of the past.
Safety has been paramount to the design of the Well-Hung bracket for the construction industry and associated trades. It is easy and quick to install, reducing labour costs; ensures neat looms of wiring; and works well screwed to the underside of trusses. Your clients will be well impressed.  The Well-Hung support bracket is available from all leading electrical suppliers.

With every purchase of Well-Hung brackets, we'll make a donation to the Prostate Cancer Foundation of New Zealand. Prostate Cancer Foundation NZ

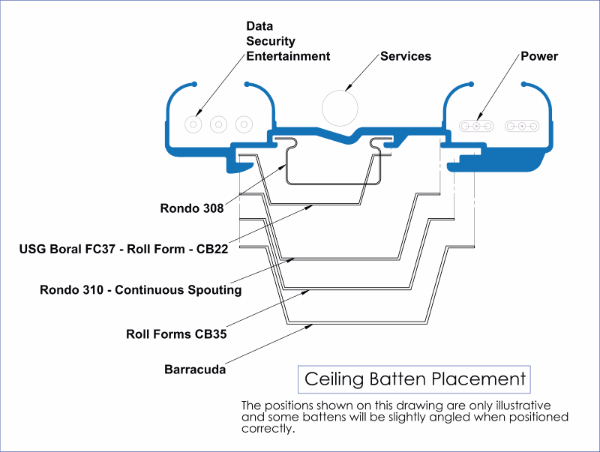

  APPLICATION CHART
Final rondos shown in place drawing Blue well-hung-378-318

DATASHEET
Well-Hung Bracket
Cat No. Description Qty
WELL-HUNG
The Well-Hung Cable Support Bracket
