Combined Neutral and Earth Connector for Waveform C.N.E Conductors

Combined Neutral and Earth Connector for Waveform C.N.E Conductors
larger imageMove mouse over the image to magnify
These connectors are designed for jointing the combined neutral and earth conductors of waveform CNE cable.

FEATURES
  • Manufactured from brass
  • Supplied with Shear head bolts
  • Suitable for Cu conductors
  • Range taking up to 240mm²
  • Designed to meet BS4579 Part 1 & Part 3
  • Meets engineering recommendation C79
BCNE

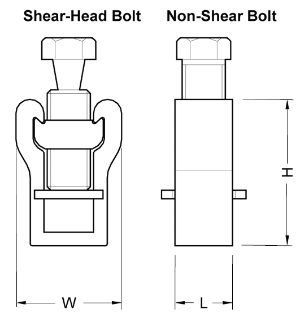

Dimensions (mm)
Cat No. Cross Sectional
Range (mm²)
Suitable Conductor Type W L H Contact Bolt Head
Size A/F (mm)
Qty
BCNE-1S
4-125
COPPER
30
16
41
13
BCNE-3S
125-240
COPPER
29
16
50
13
