Mechanical Reducing Connectors up to 36kV

Mechanical Reducing Connectors up to 36kV
larger imageMove mouse over the image to magnify
  • Designed for use on Al or Cu Conductors and are suitable for applications up to 36kV
  • Wide application range
  • Shearhead bolts with predetermined shear torque
  • Centred hole & inserts
  • Blocked connector to prevent moisture tracking
DATA SHEET
BLMT-BSMB EPP-1233-1 13

SELECTION AND APPLICATION TABLE
CAT NO.   AL ROUND
STRANDED		 AL ROUND SOLID AL SECTOR STRANDED AL SECTOR SOLID CU ROUND STRANDED CU ROUND SOLID CU SECTOR STRANDED
BSMB-25/95-95/240
(25-95mm² SIDE)		 mm²
mm²
mm		 25-95
5.7-12.5
-		 25-95
5.5-11
-		 25.70
95*
-		 -
-
-		 16-95
4.8-12.5
-		 10-50
3.6-8
-		 25-70
95*
-
(95-240mm² SIDE) mm²
mm²
mm		 95-240
11-19.2
-		 95-240
10.5-18
-		 95-150
185*-240*
-		 95-150
185(90°)
-
 		 95-240
11-19.2
-		 -
-
-		 95-150
185*-240
-
BSMB-95/240-185/240
(95-240mm² SIDE)		 mm²
mm²
mm		 95-240
11-19.2
-		 95-240
10.5-18
-		 95-150
185-240*
-		 95-150
185(90°)
-		 95-240
11-19.2
-		 -
-
-		 95-150
185-240*
-
(185-400mm² SIDE) mm²
mm²
mm		 185-400
15.5-24.6
-		 185-400
14.8-24.6
-		 185-240
300-400*
-		 185-240
300(90°)
-		 185-400
15.5-24.6
-		 -
-
-		 185-240
300-400*
-
BSMB-185/400-500
(185-400mm² SIDE)		 mm²
mm²
mm		 185-400
15.5-24.6
-		 185-400
14.8-24.6
-		 185-240
300-400*
-		 185-240
300(90°)
-		 185-400
15.5-24.6
-		 -
-
-		 185-240
300-400*
-
(500mm² SIDE) mm²
mm		 500
25.3-28.9		 500
24.25-1		 -
-		 -
-		 500
25.3-28.6		 -
-		 -
-
BSMB-185/400-630
(185-400mm² SIDE)		 mm²
mm²
mm		 185-400
15.5-24.6
-		 185-400
14.8-24.6
-		 185-240
300-400*
-		 185-240
300(90°)
-		 185-400
15.5-24.6
-		 -
-
-		 185-400
300-400*
-
(630mm² SIDE) mm²
mm		 630
28.7-32.5		 630
27.3-28.4		 -
-		 -
-		 630
28.7-32.5		 -
-		 -
-
BSMB-500-630
(500mm² SIDE)		 mm²
mm		 500
25.3-28.9		 500
24-25.1		 -
-		 -
-		 500
25.3-28.6		 -
-		 -
-
(630mm² SIDE) mm²
mm		 630
28.7-32.5		 630
27.3-28.4		 -
-		 -
-		 630
28.7-32.5		 -
-		 -
-
BSMB-500-800
(500mm² SIDE)		 mm²
mm		 500
25.3-28.9		 500
24-25.1		 -
-		 -
-		 500
25.3-28.6		 -
-		 -
-
(800mm² SIDE) mm² 800 800 - - 800 - -
*Compacted

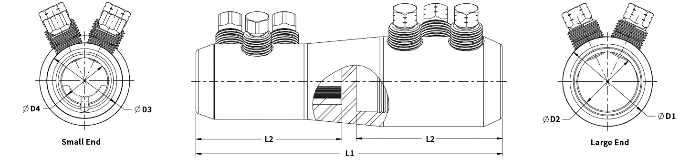

BSMB Reducing Dimensions2-271
Conductor Size (mm²) Dimensions (mm) Contact Bolts
Cat No. Side 1 Side 2 L1 L2 D1 D2 D3 D4 Head A/F
Side 1 (mm)		 Head A/F
Side 2 (mm)		 Quantity
Side 1		 Quantity
Side 2		 Qty
BSMB-25-95-95-240
25-95
95-240
125
60
33
19.5
24
12.8
13
19
2
1
BSMB-95-240-185-400
95-240
185-400
170
60
42
25.5
33
20
19
22
3
2
BSMB-150/400-500
150-400
500
170
80
42
25.5
46
30
13
13
3
3
BSMB-150/400-630
150-400
630
170
80
50
33
42
25.5
13
13
3
3
BSMB-185-400-500
185-400
500
190
90
46
30
42
25.5
22
27
3
3
BSMB-185-400-630
185-400
630
200
95
50
33
42
25.5
22
27
3
3
BSMB-500-630
500
630
200
95
50
33
46
30
27
27
3
3
BSMB-500-800
500
800
180
85
56
36
46
30
13
13
4
3
BSMB-630/800-MK2
630
800
180
85
56
36
50
33
13
13
4
3
BSMB-630/1000-MK2
630
1000
180
85
60
40
50
33
13
13
4
3
