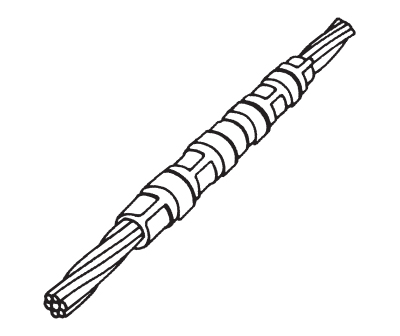

Telecom Crimps - Full Tension Copper Connectors Imperial & Metric

Connector Dimensions
Cat No.   Stranding Imperial Conductor Size
(mm²)
O.D. (mm) Length (mm) Crimp Groove
Size (mm)
Tool No. Crimps Per
Connector
Qty
TDCS1-100
IMPERIAL
7/.044
-
6.35
38
6.35
TY635794/1
4
TECS1-50
IMPERIAL
7/.052
-
7.94
64
7.94
TY635794/1, TR794952
8
TECS2-50
IMPERIAL
7/.064
-
7.94
64
7.94
TY635794/1, TR794952
8
TFCS1-50
IMPERIAL
7/.080
-
9.52
76
9.52
TR794952, TR9521270
8
TFCS2-50
IMPERIAL
19/.052
-
9.52
76
9.52
TR794952, TR9521270
8
TFCS3-50
IMPERIAL
7/.083
-
9.52
76
9.52
TR794952, TR9521270
8
TGCS3-50
IMPERIAL
19/.064
-
12.70
89
12.70
TR9521270
10
THCS2-50
IMPERIAL
19/.083
-
15.88
127
15.88
38-130CU
14
TJCS1-1
IMPERIAL
19/.101
-
22.22
203
19.25
38-193CU
8
TJCS2-1
IMPERIAL
37/.072
-
22.22
203
19.25
38-193CU
8
TKCS2-1
IMPERIAL
37/.083
-
25.40
254
22.00
38-220CU
12
TDCSM2-100
METRIC
7/1.04
6
6.35
38
6.35
TY635794/1
4
TECSM1-50
METRIC
7/1.35
10
7.94
64
7.94
TY635794/1, TR794952
8
TECSM2-50
METRIC
7/1.70
16
7.94
64
7.94
TY635794/1, TR794952
8
TFCSM1-50
METRIC
7/2.14
25
9.52
76
9.52
TR794952, TR9521270
8
TFCSM2-50
METRIC
19/1.35
35
9.52
76
9.52
TR794952, TR9521270
8
TGCSM2-50
METRIC
19/1.53
-
12.70
89
12.70
TR9521270
10
THCSM2-50
METRIC
19/1.78
50
15.88
127
15.88
38-130CU
14
THCSM3-50
METRIC
19/2.14
70
15.88
127
15.88
38-130CU
14
