The WARRIOR Mid-Power Bay range is designed to illuminate large, open spaces within industrial environments. Available with a range of different outputs from 5,000 to 15,000 lumens, the Mid-Power Bay uses Raytec’s field-proven, long-life LED technology to ensure a lifetime of 10 years+. All WARRIOR luminaires come with an industry-leading 5-year warranty.
Built Powerful - High lumen output from 5,000 to 15,000 lumens, along with a range of different beam patterns to effectively light up large open areas.
Built Flexible - The modular design allows easy access to key components and the ability to mount the PSU remotely, making installation and maintenance easy.
Built Tough - Constructed using tough, marine-grade aluminium and IP66 & IP67 rated, the MPBY is designed to withstand even the most challenging conditions.
Robust & Durable - Robust and durable construction from marine grade aluminium and with a wide operating temperature for even the most challenging conditions.
Easy to Maintain - Designed with maintenance in mind, featuring an innovative modular design to allow quick and easy on-site servicing.
Secondary Optics - Secondary optics are utilised to deliver a range of different beam patterns. This ensures light is targeted efficiently and there's no loss of light output on wider beam angle variants.
TECHNICAL SPECIFICATIONS
| ELECTRICAL |
MPBY 5K |
MPBY7.5K |
MPBY 10K |
MPBY 12.5K |
MPBY 15K |
| Input |
110-277V 50/60Hz AC only |
| Power |
40W |
60W |
80W |
100W |
120W |
| Termination |
Incoming terminal block suitable for looping 4 core 4mm² cable |
| Power Factor |
>0.95 |
| Cable Entries |
2xM20 as standard (other entries available upon request), dispatched complete with one blanking plug |
| OPTICAL |
|
|
|
|
|
| Lumen Output |
5,149 |
7,663 |
10,298 |
12,873 |
15,325 |
| LED Type |
Platinum Elite SMT LEDs |
| No. of LEDs |
24 |
24 |
48 |
48 |
48 |
| CRI |
70+ |
| Colour Temperature |
5,700K |
| MECHANICAL |
|
|
|
|
|
| Burning Position |
Universal |
| IP Rating |
IP66 & IP67 |
| Temperature Range |
-40°C to +60°C |
| Weight |
13.2kg (29.1lbs) |
| Enclosure |
Marine grade aluminium epoxy powder coated, toughened glass, all external fasteners and brackets are marine grade stainless steel |
| Unit Colour |
Silver (RAL 9006) |
| Mounting |
Ceiling brackets included |

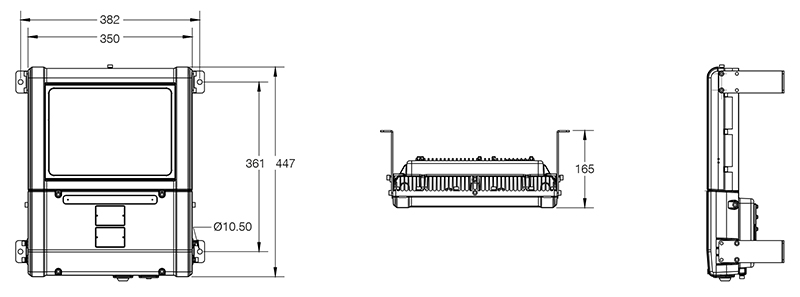

DIMENSIONS
DATASHEET
Warrior Industrial Mid Power Bay
