HV Suspension Clamps

HV Suspension Clamps
larger imageMove mouse over the image to magnify
The suspension clamp is suitable for use on High Voltage ABC cables.  Whether the cables are metallic or non metallic screened.

It is suitable for up to 45° line deviation.

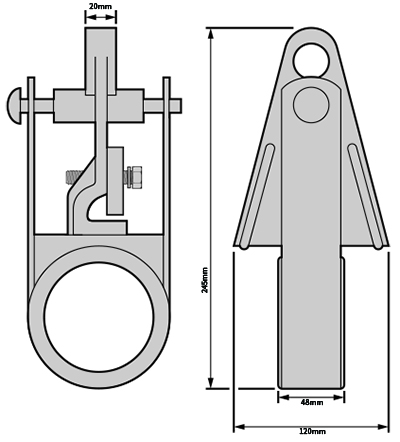

DIMENSIONS
Suspension clamps DIMENSIONS
Cat No. 11kV Metallic
Screened (mm2)
22kV Metallic
Screened (mm2)
11kV Non Metallic
Screened (mm2)
22kV Non Metallic
Screened (mm2)
Qty
TNABCHVMSC-35
35
-
-
-
TNABCHVMSC-50
50
-
-
-
TNABCHVMSC-70
70
35
-
-
TNABCHVMSC-95
95 & 120
50
-
-
TNABCHVMSC-150
150
70 & 95
-
-
TNABCHVMSC-185
185
120
-
-
TNABCHVMSC-150L
-
150
-
-
TNABCHVMSC-185L
-
185
-
-
TNABCHVNMSC-35
-
-
35 & 50
-
TNABCHVNMSC-70
-
-
70
-
TNABCHVNMSC-95
-
-
95 & 120
35 & 50
TNABCHVNMSC-150
-
-
150
70
TNABCHVNMSC-185
-
-
185
95 & 120
TNABCHVNMSC-150L
-
-
-
150
TNABCHVNMSC-185L
-
-
-
185
