Home / Hazardous Area Solutions / CCG - Hazardous Barrier Glands / A2EX~QS Barrier Compression Gland for Unarmoured Cable

Description

Questions?

In order to assist us in reducing spam, please type the characters you see:

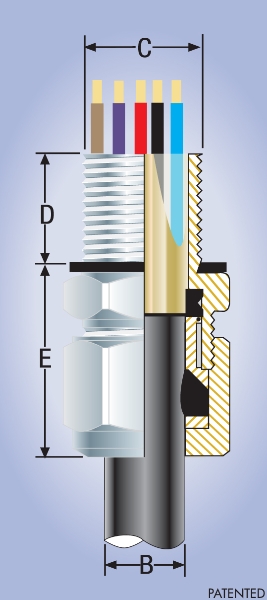

Entry Thread Cable Details (Dia) Hexagonal Details (Max)
Cat No. Gland Size
Reference		 Metric
C (mm)		 Metric Min
D (mm)		 NPT 'C' NPT
Min 'D'		 Min B
(mm)		 Max B
(mm)		 Max Length
E (mm)		 Flats Crns Install. Torque
Value Nm		 Qty
TN-056400-16
00-16ss
M16x1.5
15
-
-
3.0
8.5
25.0
24.0
27.0
32.5
TN-056400
00-20ss
M20x1.5
15
0.5-0.75
15
3.0
8.5
25.0
24.0
27.0
32.5
TN-0564-0
0-20s
M20x1.5
15
0.5-0.75
15
7.0
12.0
25.0
24.0
27.0
32.5
TN-056401
1-20
M20x1.5
15
0.5-0.75
15
11.0
15.0
30.0
27.0
31.0
32.5
TN-056422
2s-25s
M25x1.5
15
0.75-1.0
15/19
11.5
17.5
30.0
35.0
40.0
47.5
TN-056402
2-25
M25x1.5
15
0.75-1.0
15/19
15.0
20.0
30.0
35.0
40.0
47.5
TN-056433
3s-32s
M32x1.5
15
1.0-1.25
19
16.0
22.0
30.0
42.0
48.0
55.0
TN-056403
3-32
M32x1.5
15
1.0-1.25
19
20.0
26.5
30.0
42.0
48.0
55.0
TN-056444
4s-40s
M40x1.5
15
1.25-1.5
19/21
22.0
31.5
38.0
52.0
60.0
65.0
TN-056404
4-40
M40x1.5
15
1.25-1.5
19/21
26.0
34.0
38.0
52.0
60.0
65.0
TN-056455
5s-50s
M50x1.5
15
1.5-2.0
21
29.0
38.0
46.0
65.0
75.0
82.5
TN-056405
5-50
M50x1.5
15
1.5-2.0
21
34.0
44.5
46.0
65.0
75.0
82.5
TN-056466
6s-63s
M63x1.5
15
2.0-2.5
21/30
38.0
50.0
52.0
80.0
90.0
97.5
TN-056406
6-63
M63x1.5
15
2.0-2.5
21/30
44.0
56.5
52.0
80.0
90.0
97.5
TN-056477
7s-75s
M75x1.5
15
2.5-3.0
30/32
50.0
62.0
54.0
96.0
110.0
115.5
TN-056407
7-75
M75x1.5
15
2.5-3.0
30/32
56.0
67.5
54.0
96.0
110.0
115.5
TN-056408
8-80
M80x2.0
20
3
32
59.0
69.0
68.0
96.0
110.0
120.0
TN-056499
9s-90s
M90x2.0
20
3.0-3.5
32/33
66.0
75.0
70.0
111.0
125.0
120.0
TN-056409
9-90
M90x2.0
20
3.0-3.5
32/33
74.0
81.5
70.0
111.0
125.0
120.0
