CCG EX Corrosion Guard Gland for Multi Armoured Glands

CCG EX Corrosion Guard Gland for Multi Armoured Glands
larger imageMove mouse over the image to magnify
FEATURES
  • For use in highly corrosive and wet areas
  • Cable gland is precision manufactured from high quality Brass (Nickel plated)
  • Factory fitted captive elastomeric seals for built in safety
  • The screw-on Corrosion Guard™ is manufactured from non-corrosive material to protect the armour and metal parts of the gland
  • Corrosion Guard™ screws onto the gland body and seals over the outer sheath of the cable giving an IP68 and deluge proof seal
  • Complete with polypropylene sealing gasket and an end cap/safety gauge for correct gland selection
DIMENSIONS

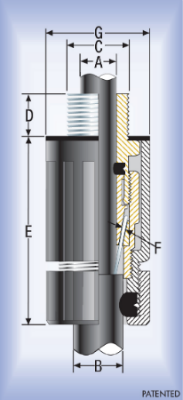

CCG Corrosion Guard Gland
TECHNICAL DATA
GLAND MATERIAL Brass (Nickel Plated)
CORROSION GUARD MATERIAL Glass Reinforced Polyester Compound/PBT
SEAL MATERIAL Thermoplastic Elastomer
CABLE TYPE Steel Wire, Braid, Tape Armour
ARMOUR CLAMPING Multi Armour Cone and Cone Ring
SEALING AREA Inner and outer sheath and total enclosure of gland
INGRESS PROTECTION IP66/68
OPERATING TEMPERATURE -30°C to 80°C
HAZARDOUS AREA CLASSIFICATION
SANS IEC, AS/NZS IEC, CNEx:
ATEX:

Zone1, 2, 21 and 22 Ex de IIC DIP A21
Category 2, Category 3, Ex de II 2 GD
STANDARDS
Aus/NZ/IEC

ANZEx 03.4083X    AS/NZS 60079-0, AS/NZS 60079-1, AS/NZS 60079-7, AS/NZS 61241.1, AS1939

All dimensions are in mm. *For use with CCG Posi Fit Boxes.

INSTALLATION VIDEO
video icon

Entry Thread Cable Details Diameter Min-Max Armour Diameter
Cat No. Gland Size
Reference
Metric (C) Min (D) (A) (B) Min (F) Max (F) Length
Max (E)
Max
Diameter
(G)
Hex Details
Flats
Install
Torque
Value (Nm)
Qty
TN-54700
*00-20SS
M20x1.5
15
3.0-8.0
8.0-13.0
0.2
1.25
62
33
24
35
TN-0547-0
*0-20S
M20x1.5
15
7.0-12.0
11.5-16.0
0.2
1.25
62
33
24
35
TN-54701
*1-20
M20x1.5
15
9.0-14.5
14.5-21.0
0.2
1.25
75
36
27
35
TN-54702
*2-25
M25x1.5
15
14.0-20.0
20.5-27.0
0.2
1.6
90
46
35
50
TN-54703
*3-32
M32x1.5
15
19.0-26.5
26.5-33.5
0.2
2.0
94
53
42
70
TN-54704
4-40
M40x1.5
20
26.0-32.5
33.0-43.0
0.4
2.5
105
68
52
90
TN-54705
5-50
M50x1.5
20
34.0-44.5
42.5-52.5
0.4
2.5
125
84
65
100
TN-54706
6-63
M63x1.5
20
44.0-57.0
52.0-65.5
0.4
2.5
152
110
82
120
TN-54707
7-75
M75x1.5
20
56.0-68.0
65.0-78.0
0.4
3.0
172
124
96
120
TN-54708
8-80
M80x2.0
25
68.0-74.0
78.0-82.0
2.5
3.0
180
124
96
150
