Spartan Linear - Zone 2, by Raytec

LED HAZARDOUS AREA LINEAR ZONE 2 LUMINAIRE STANDARD AND EMERGENCY VARIANTS

The SPARTAN Linear range is designed specifically for use in new hazardous area installations or to retrofit existing fluorescent installations which require high performance, reliable, White-Light illumination. Housed in Marine Grade aluminium and using Raytec’s field-proven, long-life LED technology, SPARTAN Linear is ATEX and IEC Ex approved for all Zone 2 applications and rated for T4, T5 and T6 environments (Zone 1 variants also available).

SPARTAN Linear’s overall dimensions, fixing centres and gland entries are all compatible with commonly used traditional Ex n 2x18W fluorescent luminaires.  The lumen output and light distribution also allows a direct, easy replacement of traditional fluorescent luminaires, meaning the customer can upgrade without complication and enjoy all the benefits of long life LED lighting while making regular lamp changes redundant.

SPARTAN Linear is available as an emergency variant, and standard variants can be converted to an emergency fitting at any time on-site, thanks to a unique modular design. This design also means key components can be easily accessed and serviced if required to make inspection and maintenance quicker and easier. SPARTAN Linear has a clear polycarbonate diffuser which is also available in various degrees of opaqueness to provide greater flexibility during installation.

SPARTAN uses thermal management technology, ensuring a much cooler LED operating temperature and up to 60% better heat dissipation compared to traditional lighting solutions, allowing the product to operate for > 10 years while still delivering a high lumen output of up to 3,400 lumens (SPZ-WL84) or 6,800 lumens (SPZ-WL168).

FEATURES

ATEX & IEC Ex approved – Zone 2 UL/CSA Approved, including CID2 ABS Approved Zone 1 variant also available Retrofitable Emergency variants Ultra long life LED High lumen output LED Easy installation, maintenance and inspection Wide operating temperature range of -40° to +60°C Clear external tear off strips on outer optics available 5 year warranty

Ultra-Powerful
High lumen output – up to 3,400 lumens
Latest high power LED technology.

Retrofittable
Easy Installation, matching the dimensions of traditional 2x18W fluorescent fittings, to provide an easy direct replacement
Equivalent Output to a 2x18W fluorescent.

Ultra-Reliable
Industry-leading 5 year warranty
Designed and manufactured in the UK to the highest standards including both ISO9001 & ISO14001 Advanced electronics and LED’s protected by vibration resistant and waterproof potting compound.

Ultra-Modular
Both the LED and PSU modules are easily accessible for maintenance and inspection
Available as a standard fitting only.

Ultra-Efficient
LEDs are thermally managed to deliver class-leading energy efficiency
Significant running and maintenance savings compared to traditional lighting technologies
SMART access wiring system for safe and efficient installation, set-up, and ongoing inspection.

Ultra-Support
Photometric files available (.ies & .ldt)
Full Lighting Design Service
Site specific Energy and Cost Saving Report available.

TECHNICAL SPECIFICATIONS

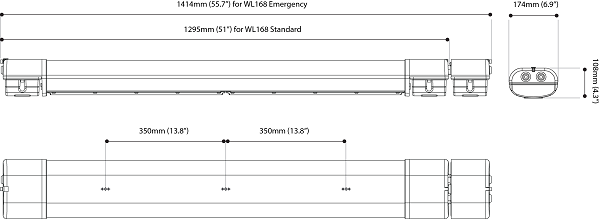

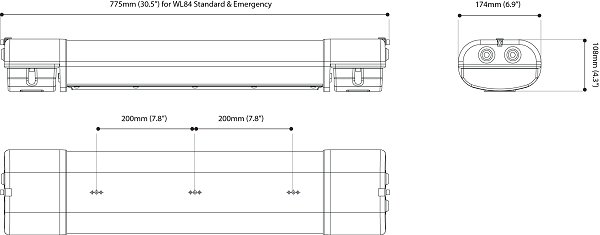

DIMENSIONS

For any model you don't see listed below, please contact us here as they will be available by special order.
