Breakout Boots - Heatshrinkable Cable Breakouts for Power Cables

Breakout Boots - Heatshrinkable Cable Breakouts for Power Cables
larger imageMove mouse over the image to magnify
Raychem low voltage breakouts are an easily installed, light weight insulation for sealing the crutches of plastic, paper and rubber insulated cables up to 1kV. Made from semi-rigid cross-linked halogen free polyolefin, these medium wall breakouts also offer resistance to abrasion, weathering, and atmospheric pollution.

APPLICATIONS
  • For sealing and insulating multi-core cables
  • Resistant to corrosion and decay
  • Waterproof
  • IP68
  • Inner adhesive wall
  • UV Resistant
  • Sealant lined

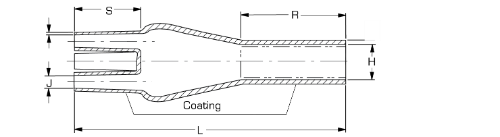

Breakout Boots

*One of 5 outlets dim = 20/6

Note:
1. Dimensions in millimetres
2. Recommended application range is from 20% above recovered diameter to 20% below expanded diameter
A = as supplied   B = after heating

DATA SHEET
BREAKOUTS 0115 EN 4-13
Inside Diameter D (mm) Length (mm)
Cat No. Number of Cores Conductor Size
(mm²)
(H)
Min A
(H)
Max B
(J)
Min A
(J)
Max B
(L)
B +/-10%
(R)
B +/-10%
(S)
B +/-10%
Qty
302K333-S
2
4-25
28
9.2
15
4.1
90
-
25
302K224-S
2
35-150
48
32
22
7
172
-
70
302K466-S
2
185-300
86
42
40
17
200
-
75
402W533-S
3
4-35
38
13
16
4.2
103
45
28
402W516-S
3
50-150
63
22
26
9
180
85
40
402W526-S
3
185-300
95
28
44
13
205
90
45
402W248-S
3
400
115
45
52
22
240
100
60
402W439-S
3
630
170
60
60
30
252
90
66
502K033-S
4
4-35
45
16.5
14
3.4
98
71
25
502K046-S
4
35-70
45
19
20
7
165
75
40
502K016-S
4
70-150
75
25
25
9
217
100
44
502K026-S
4
185-300
100
31
40
13.5
223
103
51
603W035-S
4+1
16-185
68
26
30*
7*
182
75
40
