FCSM - Flexible Medium Wall Heatshrink Tubing

FCSM - Flexible Medium Wall Heatshrink Tubing
larger imageMove mouse over the image to magnify
APPLICATIONS
  • Electrical insulation
  • Indoor or outdoor busbar insulation
  • Corrosion protection
  • Operating temp range -40°C to 120°C
  • 15m roll size Shrink ratio 3:1
  • Flame retardant
  • Flexible
DATA SHEET
FCSM EPP 0564 EN 4-13
FCSM

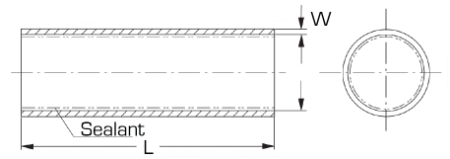

Note: A = as supplied,  B = after heating
Inside Diameter H (mm)
Cat No. Application Range
(mm)
Min Max Wall Thickness
Full Recovery
W (mm)
Length
L (mm)
Qty
FCSM-19-6-A-U-4
6.5-17.0
19
6
2.4
15
FCSM-28-9-A-U-4
10.0-25.0
28
8
3.2
15
FCSM-51-16-A-U-4
17.5-46.0
51
16
4.1
15
