Distribution Ties

Distribution Ties
larger imageMove mouse over the image to magnify
TNDT – Made from Aluminium clad Steel for AAC, AAAC & ACSR Conductors

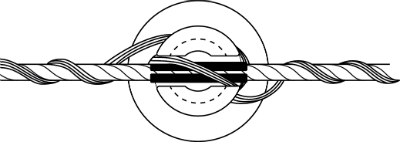

Distribution Ties were designed for securing conductors to the top groove on insulators.  The Neoprene pad reduces fatigue and wear on the conductor at the support point (insulator).

Distribution ties are fast and easy to install, they are recommended as an improvement, over Armour Rods.

Distribution ties

*Note: When ordering Distribution Ties, nominate insulator neck diameter add the correct suffix as follows:
 C = 60mm neck diameter, F = 76mm neck diameter, J = 90mm neck diameter, K = 112mm neck diameter
Cat No. Conductor Range (mm) AAC/AAAC Stranding ACSR Stranding Pack Quantity Qty
TNDT(*)0525
4.80-5.49
AARGON
MULLET
30
TNDT(*)0560
5.50-6.24
-
THRUSH
30
TNDT(*)0625
6.25-7.04
BORON / GNAT
SQUIRREL
30
TNDT(*)0750
7.05-7.99
CHLORINE
GOPHER
30
TNDT(*)0900
8.47-9.35
FLUORINE
FERRET
30
TNDT(*)1080
10.59-11.69
HELIUM
MINK
20
TNDT(*)1320
11.70-13.20
GRASSHOPPER / WASP
-
20
TNDT(*)1400
13.25-14.94
HYDROGEN
DOG
20
TNDT(*)1630
14.95-16.99
KRYPTON
-
20
TNDT(*)1675
14.88-16.94
-
DINGO
20
TNDT(*)1880
16.96-19.17
-
NEON
20
TNDT(*)2100
19.20-21.72
COCKROACH
-
30
TNDT(*)2330
21.75-24.58
-
BUTTERFLY
20
