Sediver Fog & Open Profile Ball & Socket Type - 70kN/100kN
larger image
Move mouse over the image to magnify
Product query
For IEC/BS String Electrical Ratings Click the Link Below:
Standard Profile Page 1
Standard Profile Page 2
Fog Type Profile

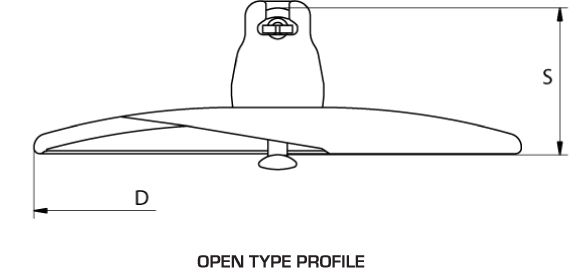

Open Type Profile
TECHNICAL SPECIFICATIONS / CAT NO.
FOG
OPEN
F9P-A/146
F100P-146
F100PF/146
F100D/127
IEC CLASS (1)
U100BLP
MINIMUM MECHANICAL FAILING LOAD
kN
100
100
100
100
DIAMETER (D)
mm
255
280
330
380
SPACING (S)
mm
146
146
146
127
CREEPAGE DISTANCE
mm
390
445
545
365
METAL FITTING SIZE (2)
16A
16A
16A
16A
POWER FREQUENCY WITHSTAND VOLTAGE
- DRY, 1 MINUTE
kV
72
80
90
60
- WET, 1 MINUTE
kV
42
50
55
50
DRY LIGHTNING IMPULSE WITHSTAND VOLTAGE
kV
110
125
140
90
PUNCTURE WITHSTAND VOLTAGE
kV
130
130
130
130
(1) In accordance with IEC publication 60305
(2) In accordance with IEC publication 60120
Cat No.
Type
Minimum Mechanical
Failing Load (kN)
Diameter (D)
(mm)
Spacing (S)
(mm)
Creepage Distance
(mm)
Qty
F9P-A/146
FOG
100
255
146
390
F100P/146
FOG
100
280
146
445
F100PF/146
FOG
100
330
146
545
F100D/127
OPEN
100
380
127
365
