Silicone Vertical Clamp Top Insulator - 33kV

Silicone Vertical Clamp Top Insulator - 33kV
larger imageMove mouse over the image to magnify

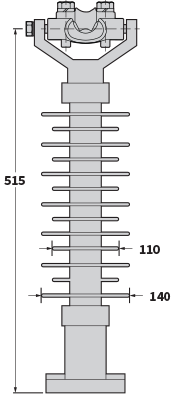

33Kv Polymer Clamp Top Dimensions

TECHNICAL SPECIFICATIONS BM8052-000
INSULATOR TYPE VERTICAL CLAMP TOP
USAGE VOLTAGE (kV) 36
CREEPAGE DISTANCE (mm) 1224
DRY ARC DISTANCE (mm) 420
NUMBER OF SHEDS 13
SCL (kN) 12.5
WET POWER FREQUENCY WITHSTAND (kV) 100
DRY POWER FREQUENCY WITHSTAND (kV) 130
LIGHTNING IMPULSE WITHSTAND (kV) 235
WEIGHT (kg) 5
COLOUR GREY
END FITTING GALVANISED CAST STEEL
HOUSING SILICONE
CORE FRP
CLAMP (NOT INCLUDED) COMPATIBLE CLAMP = 3-1198345-6
AL CLAMP, 7-32MM O.D.
PIN INCLUDED M24
Cat No. Description Qty
BM8052-000
33kV SILICONE VERTICAL CLAMP TOP INSULATOR C/W AL CLAMP FOR 7-32MM0.D. & M24 PIN
