Home > Insulators > Porcelain Insulators > 11kV Pin Type Insulator - 1130W
01994

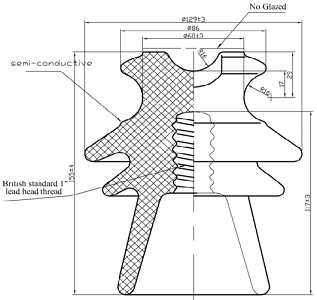

11kV Pin Type Insulator - 1130W

11kV Pin Type Insulator - 1130W
larger imageMove mouse over the image to magnify
Cat No.     0-0361400-0
Radio Silent Glaze     Yes
Nominal Voltage     400V-11kV
Power Freq. Dry     70kV
Power Freq. Wet     45kV
Power Freq Puncture     125kV
Nominal Creepage     252mm
Minimum Failing Load Cantilever     7kN
Insulator Glazed     GREY
Box Qty.     12
PIN Type     UM142-B-1-DH  = 1” LEAD HEAD
J211-CZS           = 1” NYLON HEAD

11kV Pin Type Insulator 1130W
Cat No. Description Qty
0-0361400-0
C1IL.RF 1130W PORCELAIN 11KV PIN INSULATOR
J211CZS
1" NYLON HEAD PIN FOR 1130W INSULATOR
UM142-B-1-DH
1" LEAD HEAD PIN FOR 1130W INSULATOR
