Dutch Clamp - Trefoil Cable Clamps With Centre Mounting Hole

Dutch Clamp - Trefoil Cable Clamps With Centre Mounting Hole
larger imageMove mouse over the image to magnify
Applications
For the mounting of three single or multi-conductor cables in a triangular configuration. For low, medium and high voltage cables as well as conduits and hoses.

Characteristics
  • Made of glass fibre reinforced polyamide (PA)
  • Resistant to oils, UV, ozone, salts, moisture, acids and even radioactive emissions
  • Self-extinguishing V-0 (UL94), halogen-free, low smoke
  • ROHS compliant
  • Temperature range from -40°C to 120°C
  • The mounting holes are Ø15.5mm, allowing the thread to be extended. The existing configuration can be expanded at any time. Easily, simply and at little cost
  • The centre of the lower shell has an extra mounting hole for optional mounting using a single bolt
  • Black coloured
  • Stackable

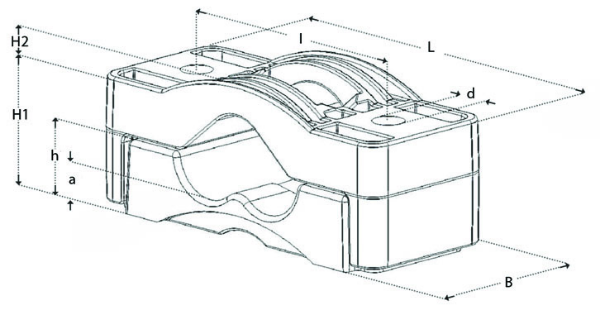

TRIPLE90-118 dimensions
Dimensions
Cat No. Mechanical Strength mm OD L B I d H1 H2 h a Qty
TRIPLE27-38
35,900NM
3 x 27-38
180
75
125
15.5
63
12
35
16.5
TRIPLE38-51
39,800NM
3 x 38-51
195
80
145
15.5
84
16
45
20
TRIPLE51-69
69,900NM
3 x 51-69
220
85
170
15.5
109
21
56
26
TRIPLE69-90
56,700NM
3 x 69-90
252
90
215
15.5
134
29
72
30
TRIPLE90-118
54,300NM
3 x 90-118
321
100
270
15.5
180
27
89
33
TRIPLE118-150
54,300NM
3 x 118-150
400
110
340
15.5
211
37
110
75
