Dutch Clamp - Single Cable Clamps, With Centre Mounting Hole

Dutch Clamp - Single Cable Clamps, With Centre Mounting Hole
larger imageMove mouse over the image to magnify
Applications
For the mounting of one single or multi-conductor cable. For low, medium and high voltage cables as well as conduits and hoses.
This clamp has a central mounting hole, the hole is counter sunk to ensure the head of the bolt does not impose on cable position.

Characteristics
  • Made of glass fibre reinforced polyamide (PA)
  • Resistant to oils, UV, ozone, salts, moisture, acids and even radioactive emissions
  • Self-extinguishing V-0 (UL94), halogen-free, low smoke
  • ROHS compliant
  • Temperature range from -40°C to 120°C
  • Black coloured

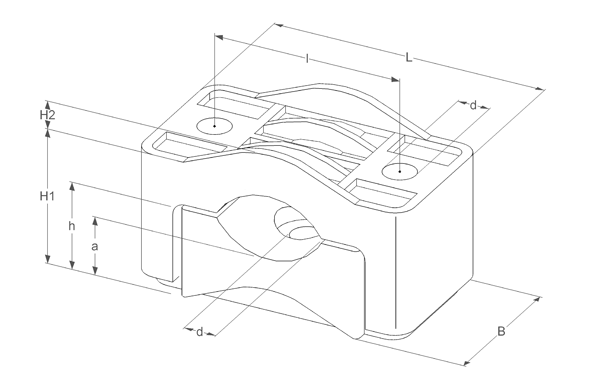

SEG26-50 dimensions
Dimensions
Cat No. Mechanical Strength mm OD L B I d H1 H2 h a Qty
SEG26-50
20,000NM
26-50
111
60
76
12.5
55.5
11.5
36
24
SEG50-80
20,000NM
50-80
136
60
100
12.5
108
15
47
22.7
