Air Break Switch - Allied Insulators

Air Break Switch - Allied Insulators
larger imageMove mouse over the image to magnify

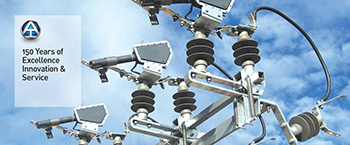

header-prod-switchgear 350x147pxDesigned and manufactured in the United Kingdom, then customised and assembled to your specifications right here in New Zealand, this Air Break Switch revolutionises how we do things.

FEATURES
  • For use at 11kV, 22kV and 33kV
  • Rated up to 630A
  • Fast and easy to install
  • Fully customised to your specifications right here in New Zealand
  • Handle can be positioned anywhere on the pole - you decide!
  • Suitable for pole top or underhung mounting
  • Offered with either porcelain or polymeric insulators
  • Open Contact clearance distance of 330mm on 11kV ABS as per MAD clearance outlined in EEA SM-EI Part 3 Rules for work on equipment. Section 7.703
  • Can be supplied with either dependent or independent manual closing mechanisms
AVAILABLE OPTIONS
  • Silicon rubber insulators as standard or porcelain if preferred
  • High Creepage insulators for desert/coastal applications
  • Plain break Arcing Horns
  • Load Break Interrupter Heads for increased rating
  • Independent manual closing mechanisms for improved capability
  • High level Hook Stick operation as standard, ground operated handle on request
  • Two or Three Stage interlock operations are available and can be adopted to meet the customers operational safety rules
For more information please see the Allied Insulators product page, or contact us
DOWNLOAD BROCHURES
Allied Insulator ABS Datasheet WPD CAT-0 Independant Manual ABSD Manual V1 WPD CAT-2 Dependant Manual ABSD Manual V1
Cat No. Mounting Voltage Class Pole Type Description Insulator Handle Qty
ALLIED-ABS1100
Mast Head Mount
11kV
Extended
CAT 0, Load Break
Polymer
-
ALLIED-ABS1101
Mast Head Mount
11kV
Extended, with Insulator
CAT 0, Load Break
Polymer
-
ALLIED-ABS1102
Underslung Mount
11kV
Extended
CAT 0, Load Break
Polymer
-
ALLIED-ABS1103
Mast Head Mount
11kV
Extended
CAT 2, Wipers
Polymer
-
ALLIED-ABS1104
Mast Head Mount
11kV
Extended, with Insulator
CAT 2, Wipers
Polymer
-
ALLIED-ABS1105
Underslung Mount
11kV
Extended
CAT 2, Wipers
Polymer
-
ALLIED-ABS1106
Mast Head Mount
11kV
Extended
CAT 0, Load Break
Polymer
Ground Mount
ALLIED-ABS1107
Mast Head Mount
11kV
Extended, with Insulator
CAT 0, Load Break
Polymer
Ground Mount
ALLIED-ABS1108
Underslung Mount
11kV
Extended
CAT 0, Load Break
Polymer
Ground Mount
ALLIED-ABS1109
Mast Head Mount
11kV
Extended
CAT 2, Wipers
Polymer
Ground Mount
ALLIED-ABS1110
Mast Head Mount
11kV
Extended, with Insulator
CAT 2, Wipers
Polymer
Ground Mount
ALLIED-ABS1111
Underslung Mount
11kV
Extended
CAT 2, Wipers
Polymer
Ground Mount
ALLIED-ABS1112
Underslung Mount
11kV
Extended, with Insulator
CAT 0, Load Break
Polymer
-
ALLIED-ABS1113
Underslung Mount
11kV
Extended, with Insulator
CAT 2, Wipers
Polymer
-
ALLIED-ABS3300
Mast Head Mount
33kV
Extended
CAT 0, Load Break
Polymer
-
ALLIED-ABS3301
Mast Head Mount
33kV
Extended, with Insulator
CAT 0, Load Break
Polymer
-
ALLIED-ABS3302
Underslung Mount
33kV
Extended
CAT 0, Load Break
Polymer
-
ALLIED-ABS3303
Underslung Mount
33kV
Extended, with Insulator
CAT 0, Load Break
Polymer
-
ALLIED-ABS3304
Mast Head Mount
33kV
Extended
CAT 0, Load Break
Polymer
Ground Mount
ALLIED-ABS3305
Mast Head Mount
33kV
Extended, with Insulator
CAT 0, Load Break
Polymer
Ground Mount
ALLIED-ABS3306
Underslung Mount
33kV
Extended
CAT 0, Load Break
Polymer
Ground Mount
ALLIED-ABS3307
Underslung Mount
33kV
Extended, with Insulator
CAT 0, Load Break
Polymer
Ground Mount
