Hellstern LV Shearbolt Connector

Hellstern LV Shearbolt Connector
larger imageMove mouse over the image to magnify
FEATURES
  • Blocked connector (solid barrier in centre of barrel)
  • Constructed from electro tinned high strength Al-Alloy with electro tinned brass bolts
  • Suitable for Cu or Al (solid or stranded) conductors up to 185mm²
  • Voltage Class up to 1kV
hellstern

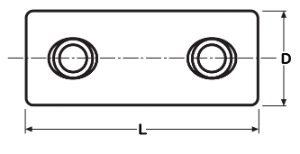

Dimensions (mm) Size Range (mm²)
Cat No. L D Installation Tool Sector Stranded Sector Solid Round Stranded Round Solid Qty
HEL-4897-T-Z-AK
40
16
4mm Allen Key
4-35
4-35
4-35
4-35
HEL-4896-Z-AK
55
25
5mm Allen Key
25-70
35-95
16-70
16-95
HEL-4893-Z-AK
80
32
6mm Allen Key
25-185
35-185
35-185
10-95
