Mechanical Lugs Centre Palm for Applications up to 36kV

Mechanical Lugs Centre Palm for Applications up to 36kV
larger imageMove mouse over the image to magnify
These lugs are designed for use with Aluminium or Copper conductors for switchgear installations.  They are suitable for applications up to 36kV.

FEATURES
  • Designed for switchgear applications
  • Shear head bolts with predetermined shear torque
  • Lug bodies are made of high-tensile, tin-plated Aluminium alloy and bolts from special Aluminium alloy
  • Centered hole and inserts
  • Centralised palm

DATA SHEET
BLMT-BSMB EPP-1233-1 13



SELECTION AND APPLICATION TABLE
  APPLICATION RANGE/CONDUCTOR TYPE
CAT NO.   AL CIRCULAR STRANDED AL CIRCULAR SOLID AL SECTOR STRANDED AL SECTOR SOLID CU CIRCULAR STRANDED CU CIRCULAR SOLID CU SECTOR STRANDED
BLMC-25/95-16-800A mm²
mm²
mm
25-95
-
5.6-12.5
16-95
-
4.1-11.0
25-70
95*
-
-
-
-
16-95
-
4.8-12.5
10-50
-
3.6-8.0
25-70
95*
-
BLMC-95/240-16-800A mm²
mm²
mm
95-240
-
11.0-19.2
95-240
-
10.5-18.0
95-150
185*-350*
-
95-150
185 (90°)
-
95-240
-
-
-
-
11.0-19.2
95-150
-
-
BLMC-185/300-16-800A mm²
mm²
mm

BLMC-185/400-16-1250 mm²
mm²
mm

BLMC-500/630-16-1250A mm²
mm²
mm
500-630
-
25.3-32.5
500-630
-
24.0-28.4
-
-
-
-
-
-
500-630
-
25.3-32.5
-
-
-
-
-
-
BLMC-800-16-1250A  mm²
mm²
mm
800
-
32.5-35.3
800
-
30.9-32.1
-
-
-
-
-
-
-
-
-
800
-
32.5-35.3
-
-
-
BLMC-800-21 mm²
mm
800
32.5-35.3
800
30.9-32.1
-
-
-
-
800
32.5-35.3
-
-
-
-
BLMC-800-2X17 mm²
mm
800
32.5-35.3
800
30.9-32.1
-
-
-
-
800
32.5-35.3
-
-
-
-
*Pressed Round

Standard BLMC range
BLMC Dimensions


BLMC-800 range

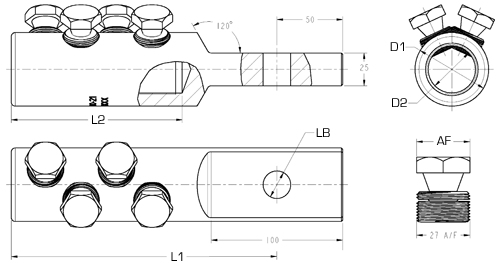

BLMC-800-21 Dimensions

Dimensions (mm) Contact Bolts
Cat No. Stud Size
LB
L1 L2 D1 D2 Quantity Head Size AF
(mm)
Qty
BLMC-25/95-16-800A
M16
77.5
31.5
29.0
16.3
1
12.0
BLMC-95/240-16-800A
M16
107.5
61.5
34.5
19.5
2
18.0
BLMC-185/300-16-800A
M16
BLMC-185/400-16-1250
M16
BLMC-500/630-16-1250
M16
155.0
100.0
50.0
33.0
3
27.0
BLMC-800-16
M16
202.0
130.0
56.0
36.0
4
27.0
BLMC-800-2X17
2 x M17
202.0
130.0
56.0
36.0
4
27.0
BLMC-800-21
M21
202.0
130.0
56.0
36.0
4
27.0
