LEDSOLAR-STL10W - 10W Street Light

10W SOLAR LED STREET LIGHT

Category Solar, Streetlights

Description

This LED 10W All-in-One Streetlight delivers exceptional performance with an extremely efficient 200 lm/W LED output. It is designed to work for 3 autonomous days, with the LED streetlight working on a pre-programmed schedule and the help of a built-in PIR motion sensor to ensure maximum efficiency and optimise the operating hours. The design also incorporates excellent optical design and light distribution.

Lithium iron Phosphate Battery
Pre-programmed Dimming Schedule
200 lm/W Efficacy
5 year Warranty

*Pole not included

APPLICATIONS

Suitable for P-cat applications, including parks, pathways, and subdivisions.

TECHNICAL SPECIFICATIONS

TECHNICAL SPECIFICATIONS

CAT No.	LEDSOLAR-STL10W
SOLAR PANEL
Type	Mono-Crystalline
Power / Area	30 Wp / 0.20 m²
BATTERY
Technology	Endurance +, Lithium Iron phosphate
Capacity	76 Wh
Design	Aluminium casing, IP65
Design Lifetime	> 10 years
LUMINAIRE
Template	GRIFF S, 16 LED
Mechanical data	Cast Aluminium Protection - IP65 - IK08
Power consumption	10 W
Luminous flux leaving	2000 lm
Light efficiency	200 lm/W
Colour temperature	4000 K // CRI > 70
Design Lifetime	> 100,000 hours at 80% of initial flux
LIGHT CONTROL
Functions and lighting management	Switch off and/or dimming during the night Timer dimming function
MOUNTING OPTIONS
Types	Post Top / Side Entry / Pole Clamp Bracket / Wall Mount
Spigot	60mm

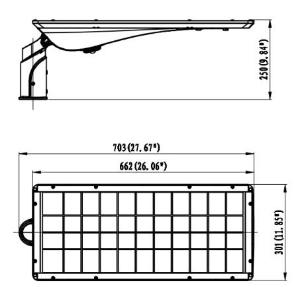

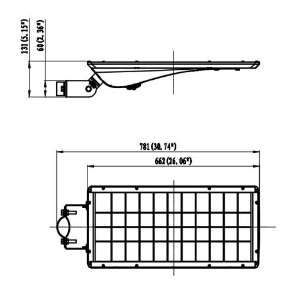

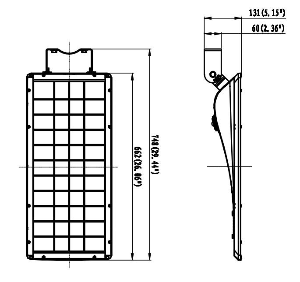

DIMENSIONS

Side Entry	Post Top
Pole Clamp Bracket	Wall Mount

MOUNTING OPTIONS


Side Entry	Post Top	Pole Clamp Bracket	Wall Mount

PRE-PROGRAMMED SETTINGS


Light changing with sufficient daylight	First 5 hours: 100% when motion detected 10% when no motion Hold time 90 seconds		Second 5 hours: 70% when motion detected 10% when no motion Hold time 50 seconds		Light switches to 30% brightness until sunrise
