22kV Pin Type Insulator - ALP Series

22kV Pin Type Insulator - ALP Series
larger imageMove mouse over the image to magnify
Cat No. TNALP22/450
Radio Silent Glaze     Yes
Height & Dia, Neck (mm)      200x160x76
Creepage Distance (mm)     450
Power Frequency Wet Withstand (kV) 50
Impulse Withstand (kV)     150
Cantilever Strength (kN)     11
Net Weight (kg)     3.5
Quantity Per Case 6
PIN type     M20X165   =  C200-11-20MM-DH
M24X165   =  C200-11-24MM-DH
33kV Pin Type Insulator

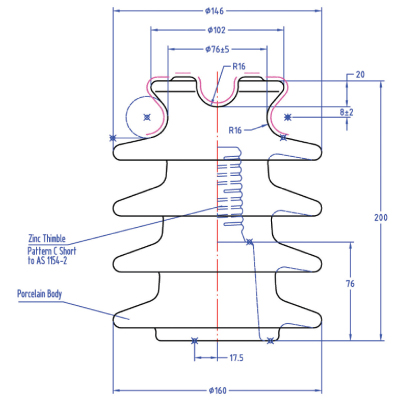

     ALP 22/450 Dimensions

Cat No. Description Qty
4-1202027-4
22/450 22kV Porcelain Pin Insulator, Pattern C Thread
ALP22/450/20MMPIN
22/450 22kV Porcelain Pin Insulator, Comes with 20mm Pattern C Pin
