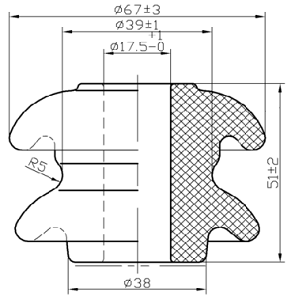

LV Shackle Porcelain Insulator - 210

LV Shackle Porcelain Insulator - 210
larger imageMove mouse over the image to magnify
LV Shackle Porcelain Insulator

TECHNICAL DATA
Cat No. 0-0361400-3
Line Voltage 650V
Dry Flashover Voltage 15kV
Wet Flashover Voltage 8kV
Bolt Size M16
Groove 10mm
Designed Load 7kN
Colour Grey
Box Quantity 80
Cat No. Kitset Description Qty
0-0361400-3
No - Insulator Only
210 Shackle Insulator, Porcelain
210SHACKKIT
Yes - Includes Galvanised Hardware
210 LV Shackle Insulator Kit Includes Bolts & Straps
210USHACKCMPLT
Yes - Includes Galvanised Hardware
210 LV Shackle Insulator Kit Includes Bolts & U-Shackle Strap
