CRSM - Heatshrinkable Wrap-Around Repair Sleeve

CRSM - Heatshrinkable Wrap-Around Repair Sleeve
larger imageMove mouse over the image to magnify
CRSM wrap-arounds are a fast and permanent cable repair and sealing system. The repair sleeve is quickly fitted in place by means of its rail and channel closure. This labour-saving installation fits and seals all in one step. CRSM wrap-arounds are abrasion and corrosion resistant, and each size covers a range of cable sizes.

Raychem’s distinctive closure system, which incorporates a stainless steel channel slid over rails on the sleeve, keeps the wrap-around in place during installation but can be easily removed when the adhesive has set.

TECHNICAL DATA
  • Operating temperature range -40°C to 120°C
  • Shrink ratio 3:1
  • Sealant lined
  • Halogen free
APPLICATIONS
  • Repair cable sheath damage without cutting cable
  • Underground jointing (and in tight areas)
  • Sealing cable glands
  • Abrasion corrosion and decay resistant
  • IP68
  • 100% waterproof
  • Inner adhesive wall
  • UV resistant
  • Voltage class 1kV
CRSM

*Other lengths available on request

DATA SHEET
CRSM EPP 0104 EN 05-14

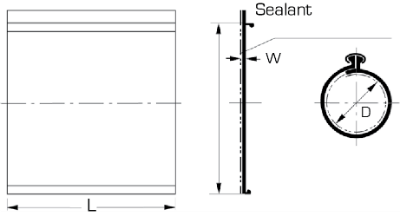

Note:
1. Dimensions in millimetres
2. Max. Longitudinal change after free recovery: 0 - +10%
A = as supplied, B = after heating
Inside Diameter D (mm) Wall Thickness W (mm)
Cat No. Application Range
Diameter (mm)
Min A Max B Min A. Max B. Length
L (mm)
Qty
CRSM-53-13-300
17-32
54
15
0.3
2.0
300
CRSM-84-20-300
24-50
86
21
0.3
2.0
300
CRSM-107-29-300
31-65
108
27
0.3
2.0
300
CRSM-143-36-300
40-115
144
28
0.3
1.8
300
CRSM-198-55-300
56-120
203
50
0.3
2.1
300
CRSM-250-98-300
103-150
257
91
0.4
1.7
300
CRSM-34-10-500
11-21
35
9
0.3
2.4
500
CRSM-53-13-500
17-32
54
15
0.3
2.0
500
CRSM-107-29-500
31-65
108
27
0.3
2.0
500
CRSM-143-36-500
40-115
144
28
0.3
1.8
500
CRSM-198-55-500
56-120
203
50
0.3
2.1
500
CRSM-34-10-1500
11-21
35
9
0.3
2.4
1500
CRSM-53-13-1500
17-32
54
15
0.3
2.0
1500
CRSM-84-20-1500
24-50
86
21
0.3
2.0
1500
CRSM-107-29-1500
31-65
108
27
0.3
2.0
1500
CRSM-143-36-1500
40-115
144
28
0.3
1.8
1500
CRSM-198-55-1500
56-120
203
50
0.3
2.1
1500
CRSM-250-98-1500
103-150
257
91
0.4
1.7
1500
