DCPT - Flexible Polyolefin Tubing

DCPT - Flexible Polyolefin Tubing
larger imageMove mouse over the image to magnify
APPLICATIONS
  • 2:1 Shrink ratio
  • Earth Colours (green/yellow) for instant identification
  • Flame retardant
  • Flexibility: able to conform to irregular shapes
  • Excellent physical, chemical and electrical properties
  • Minimum shrink temperature: 95°C
  • Minimum full recovery temperature: 120°C
  • Operating temp range (-55°C to 135°C)
  • Standard length 1.2m
Heatshrink tubing

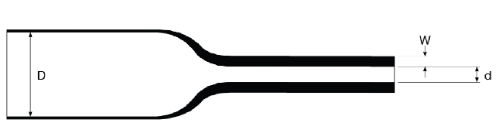

Note: D = as supplied, d = after heating
Inside Diameter
Cat No. Min Expanded
D (mm)
Max Recovered
d (mm)
Wall Thickness
Fully Recovered
W (mm)
Length (mm) Qty
DCPT-6-3-45-STK
6.0
3.0
0.58
1200
DCPT-10-5-45-STK
10.0
5.0
0.64
1200
DCPT-26-13-45-STK
26.0
13.0
0.89
1200
