LV Porcelain Pin Insulator - 510

LV Porcelain Pin Insulator - 510
larger imageMove mouse over the image to magnify

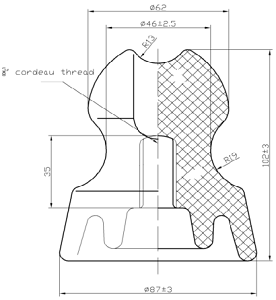

LV Porcelain Pin Insulator 510

TECHNICAL DATA
Cat No. 0-0361400-2
Nominal Voltage 400-3kV
Power Frequency Dry 55kV
Power Frequency Wet 25kV
Power Frequency Puncture 70kV
Minimum Failing Load Cantilever 7kN
Type of Pin USC006-DH
Colour Grey
Box Quantity 40
Cat No. Description Qty
0-0361400-2
510 LV Pin Insulator
USC006-DH+WASHER
Pin and Nylon Washer for use with 0-0361400-2 Insulator
USC006-DH
Pin Only for use with 0-0361400-2 Insulator
USC006WASHER
Nylon Washer for USC006-DH pin, for use with 0-0361400-2
