CCG A2 Compression Gland for Flexible Cables

CCG A2 Compression Gland for Flexible Cables
larger imageMove mouse over the image to magnify
FEATURES
  • For indoor and outdoor use.
  • Seals the cable sheath to IP68
  • Specially formulated elastomeric seals
  • Wide sealing range
  • Precision manufactured from high quality brass and nickel plated, available in Aluminium or Stainless Steel on request
  • Complete with high quality brass locknuts and IP gasket
TECHNICAL DATA
GLAND MATERIAL Brass (Nickel Plated) BS 2874, EN12164
Aluminium ASTM BS221, Stainless Steel 316
SEAL MATERIAL Thermoplastic Elastomer (Silicone on request)
CABLE TYPE Unarmoured
SEALING AREA Outer Sheath
OPTIONAL ACCESSORIES Locknut, Shroud, Earth Tag, Adaptor/Reducer
INGRESS PROTECTION IP66/68
OPERATING TEMPERATURE -30°C to 130°C
STANDARDS ANZS 3000, BS 6121-5, BS 7671, BS 7430, IEC 60364-5-54, SANS 0142

CCG A2

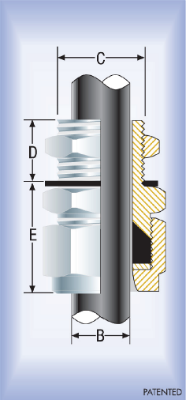

All dimensions are in mm. *Sizes 10 to 13 are of round slotted material, for use with CCG 'C' spanner.
Entry Thread Cable Details Hexagonal Details Max Entry Thread
Cat No. Gland Size
Reference
Metric (C) Min (D) Min (B) Max (B) Max Length
(E)
Flats Corners Qty
TN-053500-16
00-16
M16x1.5
10
1.0
6.0
20
17
19
TN-53500
00-20SS
M20x1.5
10
3.0
8.0
20
24
27
TN-0535-0
0-20S
M20x1.5
10
7.0
11.0
20
24
27
TN-53501
1-20
M20x1.5
10
11.0
15.5
24
27
31
TN-53502
2-25
M25x1.5
10
15.0
20.5
25
35
40
TN-53503
3-32
M32x1.5
10
20.0
26.5
30
42
48
TN-53504
4-40
M40x1.5
10
26.0
34.5
30
52
60
TN-53505
5-50
M50x1.5
10
34.0
44.5
42
65
75
TN-53506
6-63
M63x1.5
10
44.0
57.0
48
82
94
TN-53507
7-75
M75x1.5
20
56.0
68.0
50
96
110
TN-53508
8-80
M80x2.0
20
65.0
74.0
55
96
110
TN-53509
9-90
M90x2.0
20
73.0
82.0
60
110
125
TN-53510
*10-100
M100x2.0
20
81.0
92.0
74
-
-
TN-53511
*11-110
M110x2.0
20
91.0
102.0
92.5
-
-
TN-53512
*12-120
M120x2.0
28
101.0
110.0
92.5
-
-
TN-53513
*13-130
M130x2.0
28
109.0
120.0
92.5
-
-
