Home / Cable Glands & Duct Seals / CCG - Premium Glands / CCG CW Captive Component Gland for SWA and Aluminium Armoured Cables

Description

Questions?

In order to assist us in reducing spam, please type the characters you see:

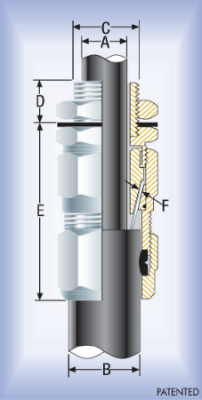

Entry Thread Cable Details Armour Diameter Hex Details Max
Cat No. Gland Size
Reference		 Metric (C) Min (D) Max (A) Min (B) Max (B) Length
Max (E)		 Min (F) Max (F) Flats Corners Qty
TN-51200
^*00-20SS
M20x1.5
10
8.0
8.0
13.5
41
0.9
-
24
27
TN-0512-0
^*0-20SS
M20x1.5
10
12.0
11.5
16.0
43
0.9
1.25
24
27
TN-51201
*1-20
M20x1.5
10
15.5
14.5
21.0
47
0.9
1.25
27
31
TN-51202
*2-25
M25x1.5
10
20.5
20.5
27.0
56
1.25
1.6
35
40
TN-51203
*3-32
M32x1.5
10
26.5
26.5
33.5
57
1.60
2.0
42
48
TN-51204
4-40
M40x1.5
15
34.5
33.0
43.0
68
1.60
2.0
52
60
TN-51205
5-50
M50x1.5
15
44.5
42.5
52.5
72
2.0
2.5
65
75
TN-51206
6-63
M63x1.5
15
57.0
52.0
65.5
89
2.0
2.5
80
90
TN-51207
7-75
M75x1.5
15
68.0
65.0
78.0
97
2.5
3.0
96
110
TN-51208
8-80
M80x2.0
20
73.0
77.5
82.0
98
1.5
3.0
100
115
TN-51209
9-90
M90x2.0
20
81.0
81.0
91.0
123
3.0
3.5
110
125
TN-51210
**10-100
M100x2.0
20
91.0
90.0
101.0
124
3.0
3.5
-
-
