CCG CX/CZ Captive Cone Gland for Braided & Steel Tape Cable VSD Cables Enquire Now Category CCG - Premium Glands Share

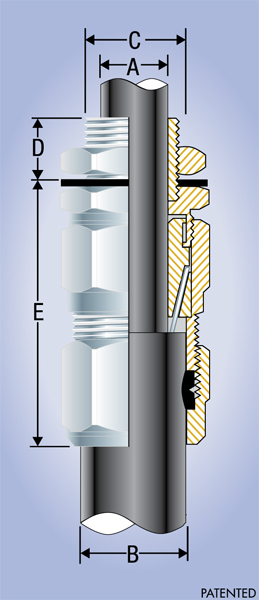

Description FEATURES & BENEFITS For outdoor use. Two piece handling, no loose parts. Freely rotating captive cone and cone ring, providing an armour clamp and earthbond without twisting the armouring. Patented disconnect armoured clamp system for ease of inspection. Provides a seal on the outer sheath of the cable sealing to IP66. Precision manufactured from high quality brass and nickel plated. TECHNICAL DATA TYPE CX/CZ GLAND MATERIAL Brass (Nickel plated) BS 2874, EN 12164, Stainless Steel 316 SEAL MATERIAL Thermoplastic Elastomer CABLE TYPE Braid, Steel Tape Armour ARMOUR CLAMPING Captive Rotating Cone and Cone Ring SEALING AREA Outer Sheath OPTIONAL ACCESSORIES Shroud, Earth Tag, Locknut and Adaptor/Reducer DESIGN STANDARDS BS 6121, Part 1, EN 50262 CERTIFICATION Marine: 09-SG435709A/1-PDA OPERATING TEMPERATURE -30°C to +130°C INGRESS PROTECTION IP 66 DIMENSIONS INSTALLATION STANDARDS ANZS 3000 BS 6121-5 BS 7671 BS 7430 IEC 60364-5-54 SANS 0142
