CCG VariTex Compression Glands for Copper Tape VSD Cables

CCG VariTex Compression Glands for Copper Tape VSD Cables
larger imageMove mouse over the image to magnify
FEATURES AND BENEFITS
  • For use indoor, outdoor and hazardous areas
  • Two piece handling, no loose parts
  • Independent tightening of coil induces and inspectable positive contact on copper tape
  • Factory fitted captive elastomeric seal for builtin safety
  • Seals on the outer sheath of the cable to IP66/68
  • Precision manufactured from high quality brass (nickel plated) or stainless steel (on request)
  • Complete with brass locknut and sealing gasket
TECHNICAL DATA
Type VariTex™ (VRTX)
Gland Material Brass (Nickel Plated), or Stainless Steel (on request)
Seal Material Thermoplastic Elastomer (Silicone on request)
Cable Type Copper Tape VSD (Variable Speed Drive)
Sealing Area Compression Seal and O-ring
Optional Accessories Adaptor/Reducer, Earth Tag and Shroud

STANDARDS AND CERTIFICATIONS
Hazardous Area Classification ANZEx: Zone 1, 2, 21 and 22 Ex e IIC, Ex tD A21
Certification:
Australian/New Zealand/IEC ANZEx 09.4086X
Standards:
AS/NZS 60079-0, AS/NZS 60079-7, AS/NZS 61241.0, AS/NZS 61241.1. AS60529
Operating Temperature -20°C to +80°C
Ingress Protection IP66/68 (2m Cont.)
Dimensions

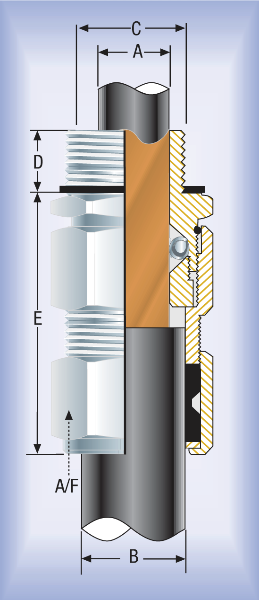

CCG-VariTex-VSD-Glands-319


INSTALLATION VIDEOS
video icon     video icon

Metric Entry Thread Cable Detail
Cat No. Cable Size
(mm)
Gland Size C Min D Inner Over Tape
Min A
Inner Over Tape
Max A
Outer
Min B
Outer
Max B
Maximum Length
E (mm)
A/F
(mm)
Installation
Torque (Nm)
Qty
TN-0531-0S
2.5
0-20s
M20x1.5
15
9.6
11.5
13.0
20.0
61.0
30.0
21.0
TN-0531-0
4
0-20
M20x1.5
15
10.8
12.5
13.0
20.0
61.0
30.0
21.0
TN-53101
6
1-20
M20x1.5
15
12.2
14.0
13.0
20.0
61.0
30.0
21.0
TN-053102S
10
2-25s
M25x1.5
15
13.8
16.0
18.0
26.0
64.0
38.0
30.0
TN-53102
16
2-25
M25x1.5
15
16.0
20.0
18.0
26.0
65.0
38.0
30.0
TN-053103S
25
3-32s
M32x1.5
15
20.0
23.0
23.0
28.0
68.0
45.0
42.0
TN-53103
35
3-32
M32x1.5
15
22.0
23.5
23.0
28.0
68.0
45.0
42.0
TN-053104S
50
4-40s
M40x1.5
17
23.5
28.0
28.0
39.5
75.0
55.0
52.0
TN-53104
70
4-40
M40x1.5
17
28.0
32.0
28.0
39.5
74.0
55.0
52.0
TN-53105S
95
5-50s
M50x1.5
17
32.0
36.0
35.2
42.0
81.0
65.0
57.0
TN-53105
120
5-50
M50x1.5
17
35.5
39.0
40.0
46.0
85.0
65.0
57.0
TN-053106S
150
6-63s
M63x1.5
17
39.0
45.0
45.5
54.0
85.0
80.0
66.0
TN-53106
185
6-63
M63x1.5
17
44.0
49.5
45.5
54.0
85.0
80.0
66.0
TN-053106L
240
6-63L
M63x1.5
17
49.0
54.0
54.6
62.0
83.0
80.0
66.0
TN-53107
300
7-75
M75x1.5
17
54.0
59.0
59.0
72.1
93.0
96.0
72.0
